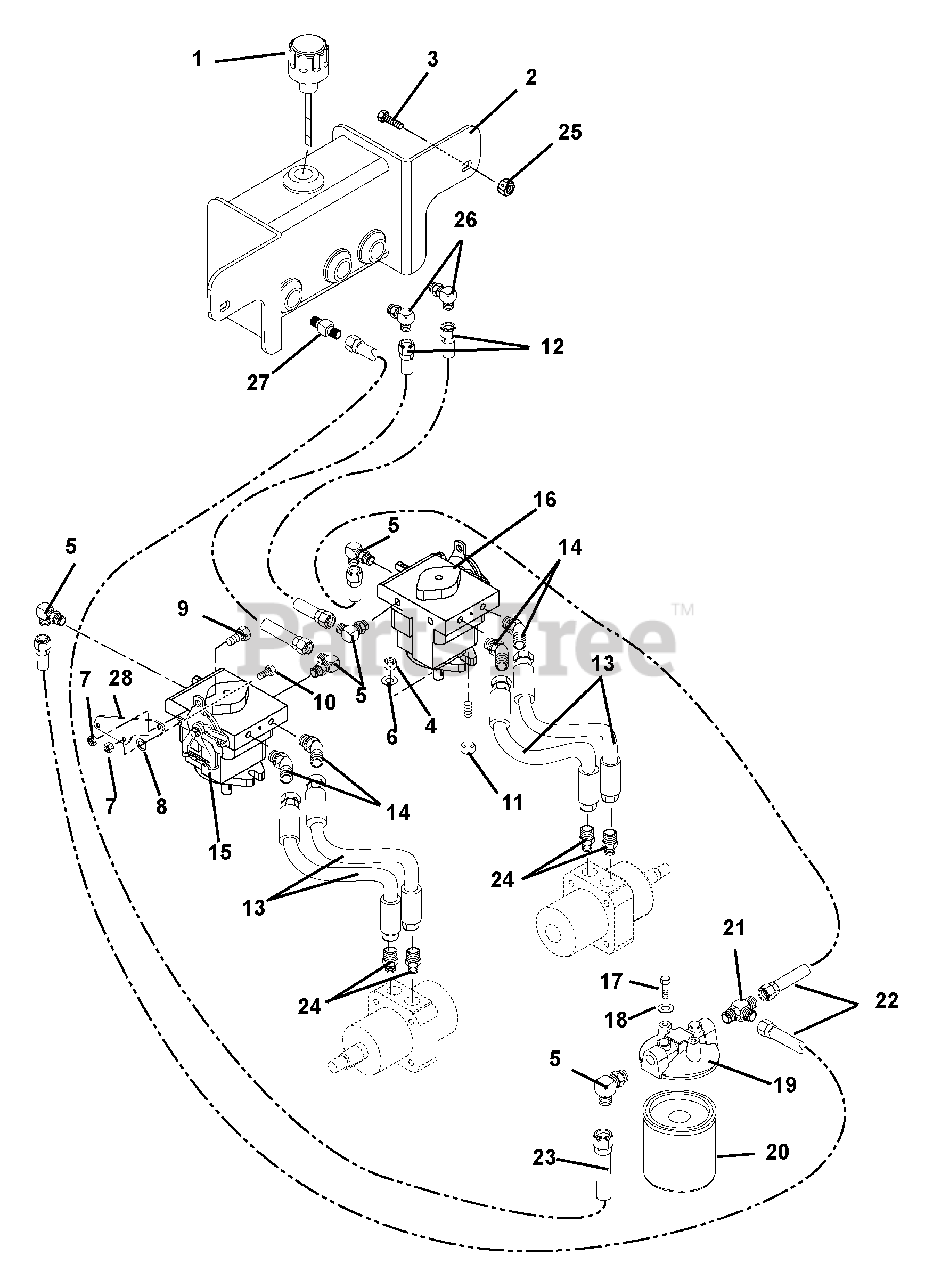

988319 (HR1544FXPCE) - Ariens 44" Walk-Behind Mower, 15hp Kawasaki, Hydro (SN: 000101 & Above) Hydraulics Parts Diagram

44" Walk-Behind Mower, 15hp Kawasaki, Hydro

Hydraulics Parts Diagram

  • Title
1

Ariens 09273900

BREATHER, DIPSTICK

$45.99

$

In Stock, only 2 left!

0

2

Ariens 04941753

WMT - TANK - HYDRAULIC

$

$

Not available

3

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 06527500

@NUT-LK-NYL .44-14 YWZC

$2.49

$

Usually ships in 4-12 days

0

5

Ariens 07063600

FITTING, HYD (6 C5OLO)

$34.99

$

In Stock, only 4 left!

0

6

Ariens 06443800

WSHR,FLT .438X1.00X.160 ZCC

$

$

Not available

7

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 05522100

BSHG-SLV .377X.624X.370

$4.99

$

Usually ships in 4-12 days

0

9

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 05947200

@BLT-HEX .31-18X.50 GR5 YWZC
(Superseded to 05901904)

$1.49

$

In Stock, Qty 13

0

11

Ariens 05962800

@BLT-HEX .44-14X1.50 GR5 YWZC
(Superseded to 05901633)

$3.49

$

In Stock, Qty 11

0

12

Ariens 04925500

HOSE HYD .37-10-0K F06F0-F06F0

$84.99

$

Usually ships in 4-12 days

0

13

Ariens 04925900

HOSE,HYD .5-22-2K F08F0-F08F0

$86.99

$

Usually ships in 4-12 days

0

14

Ariens 07066200

FTG,HYD 45DEG M8F-M80

$59.99

$

Usually ships in 4-12 days

0

15

Ariens 00170400

PUMP, HYD. RH W/RTN

$731.99

$

Usually ships in 4-12 days

0

16

Ariens 00170500

PUMP, HYD. LH W/RTN

$731.99

$

Usually ships in 4-12 days

0

17

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 09072100

HEAD, FILTER

$56.99

$

Usually ships in 4-12 days

0

20

Ariens 09246900

ELEMENT, FILTER BE-40-0

$23.99

$

Usually ships in 4-12 days

0

21

Ariens 07066100

FTG,HYD TEE M6F-M6F-M60

$

$

Not available

22

Ariens 04925600

HOSE,HYD .37-22-0K F06F0-F06F0

$

$

Not available

23

Ariens 04911500

HOSE HYD .37-13-0K F06F0-F06F9

$79.99

$

In Stock, only 1 left!

0

24

Ariens 07062100

FTG, HYD STR M10O-M8F

$14.99

$

In Stock, only 1 left!

0

25

Ariens 06535800

@NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

26

Ariens 07061600

FTG, HYD ELBOW M6F-M8O

$14.99

$

Usually ships in 4-12 days

0

27

Ariens 07061700

FTG, HYD STR M8O-M6F

$

$

Not available

28

Ariens 09282900

BRACKET, RTN/DAMPER

$7.99

$

Usually ships in 4-12 days

0
