988318 (HR 15 P) - Ariens Walk-Behind Mower, 15hp Kawasaki, Hydro (SN: 000101 & Above) Ground Drive Parts Diagram

Walk-Behind Mower, 15hp Kawasaki, Hydro

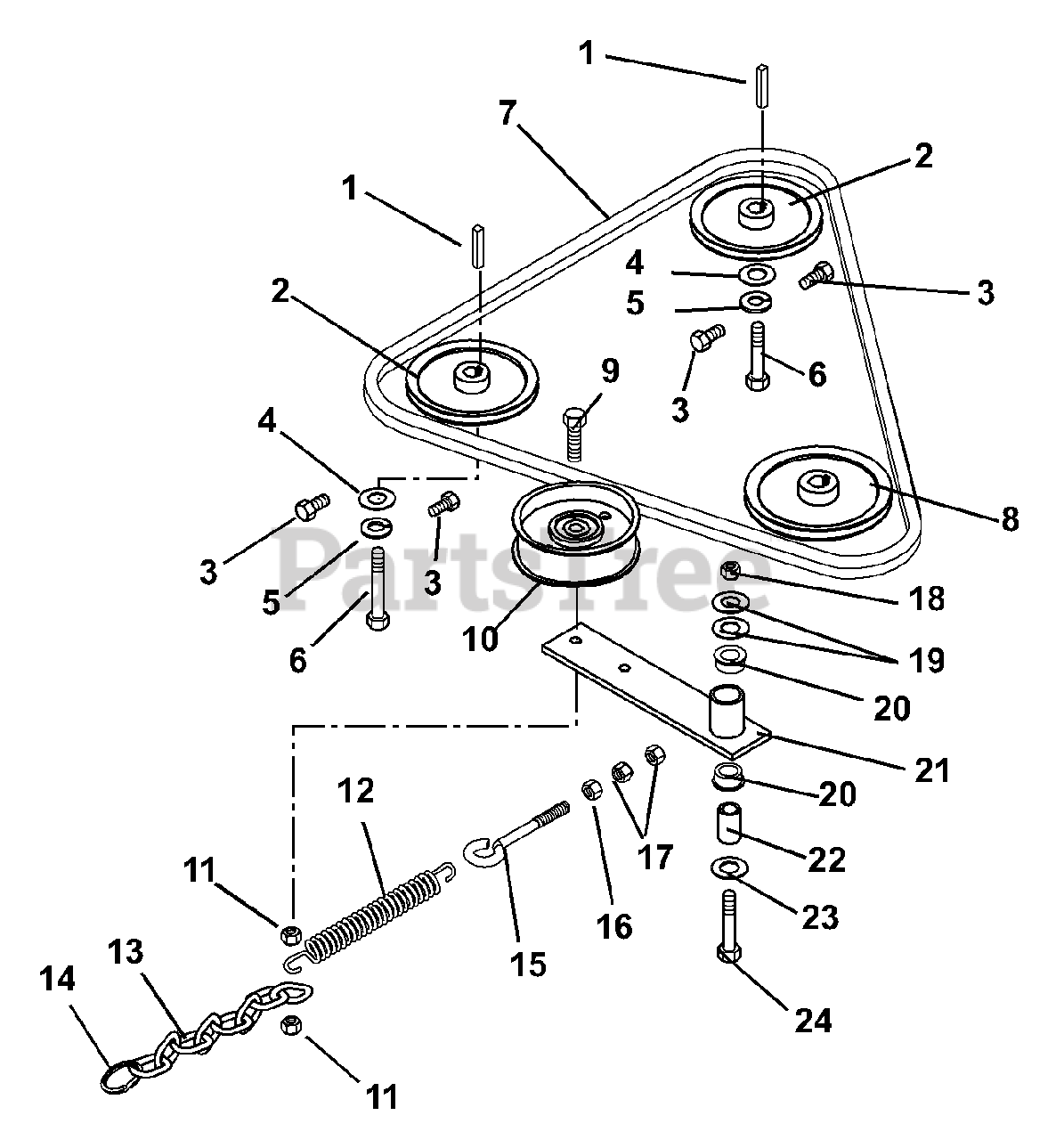

Ground Drive Parts Diagram

  • Title
1

Ariens 06607500

KEY-STR 5MMX25MMX5MM

$3.99

$

In Stock, only 2 left!

0

2

Ariens 07318900

SHEAVE, PUMP .592 X 4.345

$51.99

$

In Stock, only 2 left!

0

3

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

4

Ariens 06403700

WSHR-FL-STL .281X1.250X.048PL

$

$

Not available

5

Ariens 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 05969800

BLT-HEX M6 X 1.0X12 YWZC

$1.99

$

In Stock, Qty 14

0

7

Ariens 07239700

V-BELT, 4L-RAW EDGE

$37.99

$

In Stock, only 1 left!

0

8

$116.99

$

Usually ships in 4-12 days

0

9

Ariens 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

10

Ariens 07320700

IDLER-PLY FLAT 3.25 X .38 X1.0

$34.99

$

In Stock, only 1 left!

0

11

Ariens 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 08336100

SPRING, EXT
(Superseded to 08300512)

$17.99

$

In Stock, Qty 20+

0

13

Ariens 04927200

CHAIN, LINK

$10.99

$

Usually ships in 4-12 days

0

14

Ariens 00564900

RING, SPLIT .1 X 2

$3.49

$

In Stock, only 1 left!

0

15

Ariens 07030000

BLT-EYE .375-16X2.50 YWZC

$7.99

$

Usually ships in 4-12 days

0

16

Ariens 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 06535800

@NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

18

Ariens 06540600

@NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

19

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 05518400

BSHG-FLG .762X1.0X.580X1.48 NY

$4.99

$

In Stock, Qty 20+

0

21

Ariens 08844200

WLDMT,GROUND DRIVE IDLER
(Superseded to 08844251)

$58.99

$

Usually ships in 4-12 days

0

22

Ariens 08815100

BUSH.,S.560X.745X2.04 ST

$21.99

$

In Stock, only 1 left!

0

23

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 05960000

@BLT-HEX .50-13X3.25 GR5 YWZC
(Superseded to 05901634)

$3.99

$

In Stock, only 1 left!

0
