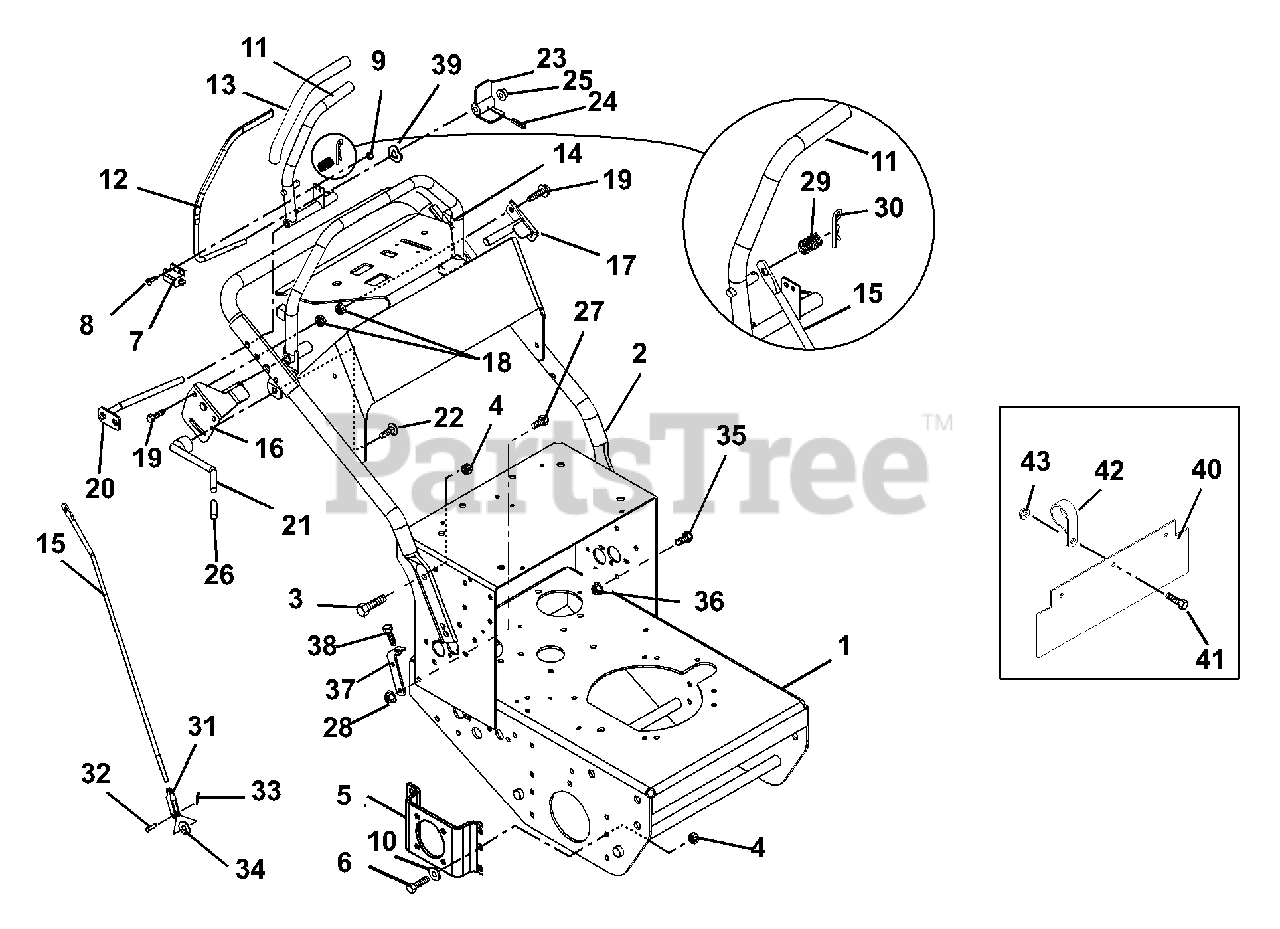

988318 (HR 15 P) - Ariens Walk-Behind Mower, 15hp Kawasaki, Hydro (SN: 000101 & Above) Frame And Handlebars Parts Diagram

Walk-Behind Mower, 15hp Kawasaki, Hydro

Frame And Handlebars Parts Diagram

  • Title

1

Ariens 58804200

KIT-FRAME W/DECALS

$

$

Not available

2

Ariens 58806400

KIT-HANDLEBAR/DECALS HR15-ERGO

$

$

Not available

3

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 06535800

@NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

5

Ariens 04926100

BRACKET, WHEEL MOTOR LH

Note: (318)

$

$

Not available

5

Ariens 04931300

BRACKET, WHEEL MOTOR RH

Note: (318)

$

$

Not available

5

Ariens 04929000

BRKT, WHEEL MOTOR LH

Note: (321)

$

$

Not available

5

Ariens 04929100

BRKT, WHEEL MOTOR RH

Note: (321)

$37.99

$

Usually ships in 4-12 days

0

6

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 03606600

SWITCH- DOUBLE POLE N.O./N.O.

Note: (318)

$17.99

$

In Stock, only 1 left!

0

7

Ariens 08828100

SWITCH,INTERLOCK

Note: (321)

$20.99

$

In Stock, only 1 left!

0

8

Ariens 06116900

@SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

9

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 04942851

WMT-LEVER-RH SPEED CONTROL-HYD

$

$

Not available

11

Ariens 04942951

WMT-LEVER-LH SPEED CONTROL-HYD

$

$

Not available

12

Ariens 04944100

LEVER - OPERATOR PRESENCE

$47.99

$

Usually ships in 4-12 days

0

13

Ariens 07534500

GRIP - HANDLEBAR

$27.99

$

In Stock, only 2 left!

0

14

Ariens 04937951

WMT - SPEED CONTROL STOP
(Superseded to 04944951)

Note: (Serial # 101-2999)

$256.99

$

Usually ships in 4-12 days

0

14

Ariens 04944951

WMT - SPEED CONTROL STOP

Note: (Serial # 3000 and up)

$256.99

$

Usually ships in 4-12 days

0

15

Ariens 04942100

ROD - STEERING - HYDRO

$43.99

$

In Stock, only 2 left!

0

16

Ariens 04938000

WMT-CONTROL STOP LIMITER-RH

Note: (Serial # 101-2999)

$41.99

$

Usually ships in 4-12 days

0

16

Ariens 04944800

WMT - CONTROL STOP LIMITER -RH

Note: (Serial # 3000 and up)

$

$

Not available

17

Ariens 04938300

WMT-CONTROL STOP LIMITER-LH

$

$

Not available

18

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

20

Ariens 04943200

WMT - SPEED CONTROL PIVOT - RH

$

$

Not available

20

Ariens 04943300

WMT - SPEED CONTROL PIVOT - LH

$

$

Not available

21

Ariens 04938600

LEVER - CONTROL STOP LOCK

Note: (Serial # 101-2999)

$103.99

$

Usually ships in 4-12 days

0

21

Ariens 04944700

LEVER - CONTROL STOP LOCK

Note: (Serial # 3000 and up)

$34.99

$

Usually ships in 4-12 days

0

22

Ariens 06214100

BLT-RDHDSQSHK.31-18X.75 GR2 YW
(Superseded to 06200309)

Note: (Serial # 101-2999)

$2.49

$

In Stock, Qty 20+

0

22

Ariens 06223900

@BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

Note: (Serial # 3000 and up)

$1.49

$

In Stock, only 4 left!

0

23

Ariens 04936900

ACTUATOR - SWITCH

$58.99

$

Usually ships in 4-12 days

0

24

Ariens 05803400

PIN-ROLL .125X.75

$0.99

$

In Stock, Qty 16

0

25

Ariens 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 20+

0

26

Ariens 07528300

GRIP,HAND CLUTCH LEVER

$3.99

$

In Stock, only 2 left!

0

27

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

28

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 08338800

SG-COMP .045X.600X.750 WLD7.5

$6.99

$

In Stock, only 2 left!

0

30

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

31

Ariens 00513800

YOKE, .312-24 X 2.25

$29.99

$

Usually ships in 4-12 days

0

32

Ariens 06814000

PIN-CLEV .31X.937 FLHD YWZC

$3.99

$

Usually ships in 4-12 days

0

33

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

34

Ariens 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, only 2 left!

0

35

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

36

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

37

Ariens 04942400

WMT - REVERSE ADJUST BRACKET

$

$

Not available

38

Ariens 05947500

@BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.49

$

In Stock, Qty 11

0

39

Ariens 01320200

WAVE WASHER .390X.655X.110

$3.49

$

In Stock, Qty 7

0

40

Ariens 04947000

GUARD - DEBRIS

$33.99

$

Usually ships in 4-12 days

0

41

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

42

Ariens 06917900

CLAMP, COUSHIONED STEEL REV

$14.99

$

Usually ships in 4-12 days

0

43

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0
