988317 (HR 15 P) - Gravely Pro-Hydro Walk-Behind Mower Power Unit, Pro-Steer, 15hp Kawasaki (SN: 000101 & Above) Parking Brake Parts Diagram

Pro-Hydro Walk-Behind Mower Power Unit, Pro-Steer, 15hp Kawasaki

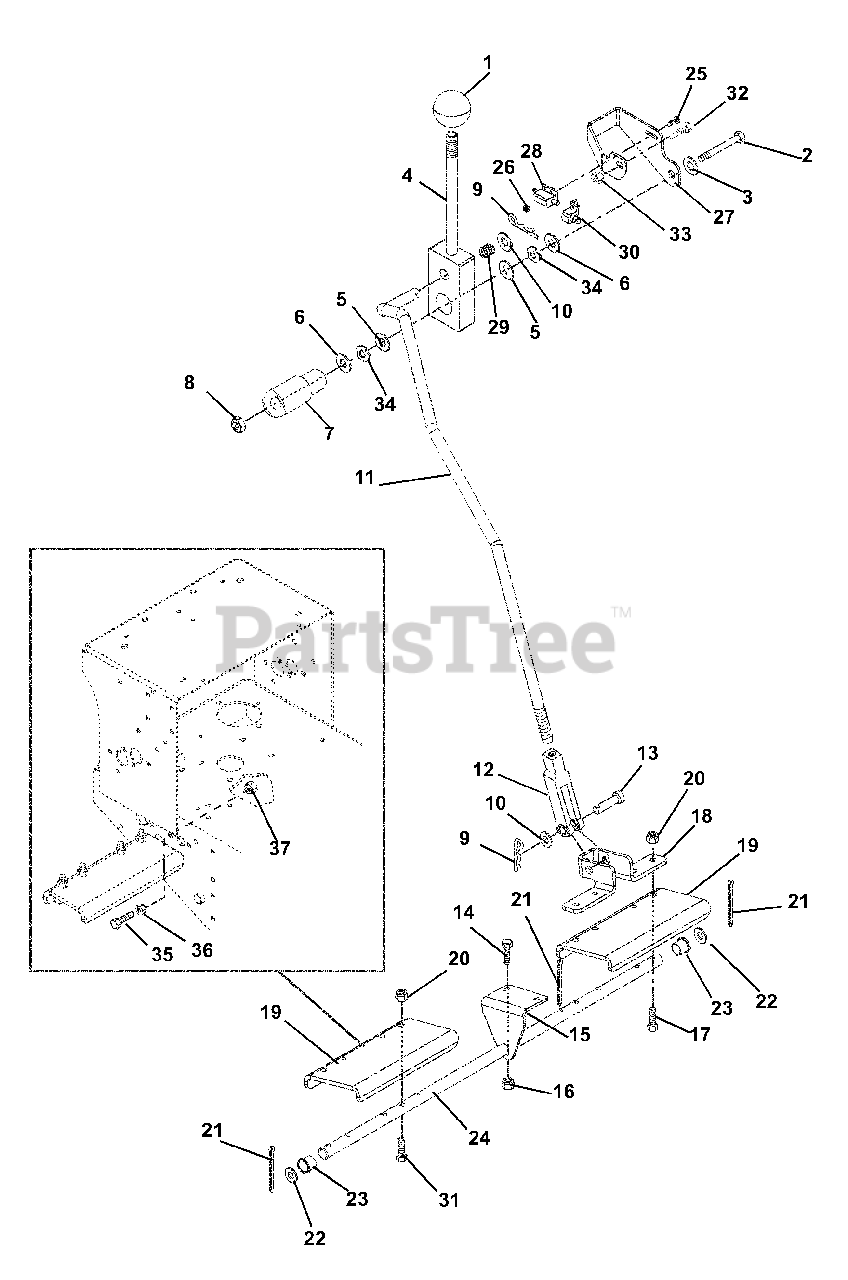

Parking Brake Parts Diagram

  • Title

1

Gravely 07533500

Knob, Black Ball 1.47" .375-16

$9.99

$

In Stock, Qty 7

0

2

Gravely 05976200

Bolt, Hex .44-14 x 4.5 Grade 5

$

$

Not available

3

Gravely 06441000

Washer, Flat Steel .50 x 1.25 x .083
(Superseded to 06401202)

$2.99

$

In Stock, Qty 6

0

4

Gravely 04927400

Weldment, Handle

$

$

Not available

5

Gravely 06431600

Washer, Flat Nylon .76 x 1.25 x .030

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 06441500

Washer, Flat Steel .76 x 1.38 x .062
(Superseded to 06401016)

$3.99

$

In Stock, only 4 left!

0

7

Gravely 04927300

Pivot, Brake

$

$

Not available

8

Gravely 039413

Nut, Locking Hex .44-14
(Superseded to 06527500)

$2.49

$

Usually ships in 4-12 days

0

9

Gravely 06713500

Pin, Hair Internal .08 x .18 x 1.18
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 04938200

Rod, Brake

$

$

Not available

12

Gravely 018380

Clevis, .38-24 Adjustable
(Superseded to 08800400)

$11.99

$

Usually ships in 4-12 days

0

13

Gravely 06813300

Pin, Clevis .37 x 1.75

$2.49

$

Usually ships in 4-12 days

0

14

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 04927151

Bracket, Brake Shaft

$

$

Not available

16

Gravely 06535800

Nut, Locking Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

17

Gravely 05952500

Bolt, Hex .25-20 x 1.50 Grade 5
(Superseded to 05901739)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 04927751

Brake, Arm

$

$

Not available

19

Gravely 04927851

Pad, Brake
(Superseded to 03397151)

$48.99

$

Usually ships in 4-12 days

0

20

Gravely 06531000

Nut, Locking Nylon .25-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

21

Gravely 06707100

Pin, Cotter .12 x 1.00

$0.99

$

In Stock, Qty 10

0

22

Gravely 06442800

Washer, Flat Steel .656 x 1.31 x .095
(Superseded to 06401118)

$2.49

$

In Stock, only 3 left!

0

23

Gravely 045787

Bushing, Flange .63 x 1.00 x .625 Nylon
(Superseded to 05517400)

$

$

Not available

24

Gravely 04927600

Brake, Shaft

$90.99

$

Usually ships in 4-12 days

0

25

Gravely 06116900

Screw, Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

26

Gravely 06536000

Nut, Locking Nylon 10-24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 04937751

Bracket, Brake Switch

$17.99

$

Usually ships in 4-12 days

0

28

Gravely 046219

Switch, Interlock
(Superseded to 08828100)

$20.99

$

In Stock, only 1 left!

0

29

Gravely 08338800

Spring, Compression .045 x .60 x .75

$6.99

$

In Stock, only 2 left!

0

30

Gravely 07534400

Boot, Rubber

$

$

Not available

31

Gravely 05947400

Bolt, Hex .25-20 x 1.25 Grade 5
(Superseded to 05901738)

$1.99

$

In Stock, Qty 5

0

32

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 09252000

Washer, Wave .076 x 1.12 x .080

$3.49

$

Usually ships in 4-12 days

0

35

Gravely 05958500

Bolt, Hex .38-16 x 1.75 Grade 5
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

36

Gravely 06529400

Nut, Hex .38-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

37

Gravely 06535800

Nut, Locking Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0
