988317 (HR 15 P) - Gravely Pro-Hydro Walk-Behind Mower Power Unit, Pro-Steer, 15hp Kawasaki (SN: 000101 & Above) Hydraulics Parts Diagram

Pro-Hydro Walk-Behind Mower Power Unit, Pro-Steer, 15hp Kawasaki

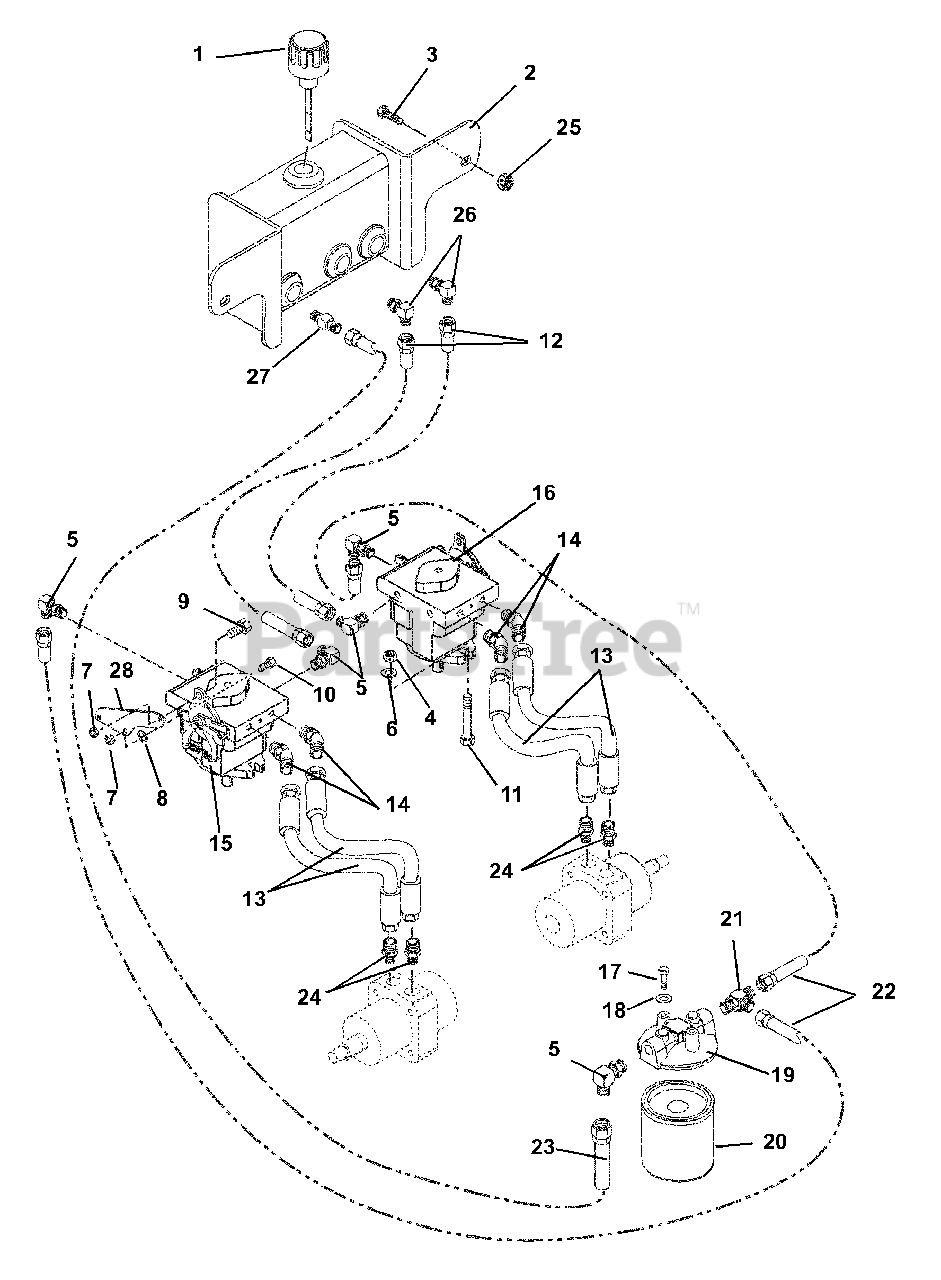

Hydraulics Parts Diagram

  • Title

1

Gravely 09273900

Breather, Dipstick

$77.99

$

In Stock, only 2 left!

0

2

Gravely 04941753

Tank Assembly, Hydraulic

$

$

Not available

3

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 039413

Nut, Nylon Locking .44-14
(Superseded to 06527500)

$2.49

$

Usually ships in 4-12 days

0

5

Gravely 07063600

Fitting, Hydraulic

$34.99

$

In Stock, only 4 left!

0

6

Gravely 06443800

Washer, Flat Steel .43 x 1.00 x .16

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 06529800

Nut, Locking Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 05522100

Bushing, Sleeve .377 x .624 x .37

$4.99

$

Usually ships in 4-12 days

0

9

Gravely 05946900

Bolt, Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 05947200

Bolt, Hex .31-18 x .50 Grade 5
(Superseded to 05901904)

$1.49

$

In Stock, Qty 13

0

11

Gravely 05962800

Bolt, Hex .44-14 x 1.50 Grade 5
(Superseded to 05901633)

$3.49

$

In Stock, Qty 11

0

12

Gravely 04925500

Hose, Hydraulic

$84.99

$

Usually ships in 4-12 days

0

13

Gravely 04925900

Hose, Hydraulic

$98.99

$

In Stock, only 2 left!

0

14

Gravely 07066200

Fitting, Hydraulic

$59.99

$

Usually ships in 4-12 days

0

15

Gravely 00170400

Pump, Hydraulic Right Hand w/ Return

$731.99

$

Usually ships in 4-12 days

0

16

Gravely 00170500

Pump, Hydraulic Left Hand w/ Return

$731.99

$

Usually ships in 4-12 days

0

17

Gravely 05947900

Bolt, Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06308400

Washer, Locking .25 x .062 Regular
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 09072100

Head, Filter

$56.99

$

Usually ships in 4-12 days

0

20

Gravely 09246900

Filter, Oil

$26.99

$

In Stock, only 2 left!

0

21

Gravely 07066100

Fitting, Hydraulic Tee

$

$

Not available

22

Gravely 04925600

Hose, Hydraulic

$

$

Not available

23

Gravely 04911500

Hose, Hydraulic

$79.99

$

In Stock, only 1 left!

0

24

Gravely 07060000

Adapter, Face Seal 10 x 8.63 O-Ring
(Superseded to 07062100)

$14.99

$

In Stock, only 1 left!

0

25

Gravely 06535800

Nut, Locking Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

26

Gravely 07061600

Hydraulic, Fitting Elbow

$14.99

$

Usually ships in 4-12 days

0

27

Gravely 07061700

Hydraulic, Fitting Straight

$

$

Not available

28

Gravely 09282900

Bracket, Return to Neutral/Damper

$7.99

$

Usually ships in 4-12 days

0
