988316 (HR1536FXPCE) - Ariens 36" Walk-Behind Mower, 15hp Kawasaki, Hydro (SN: 000101 - 002499) Parking Brake Parts Diagram

36" Walk-Behind Mower, 15hp Kawasaki, Hydro

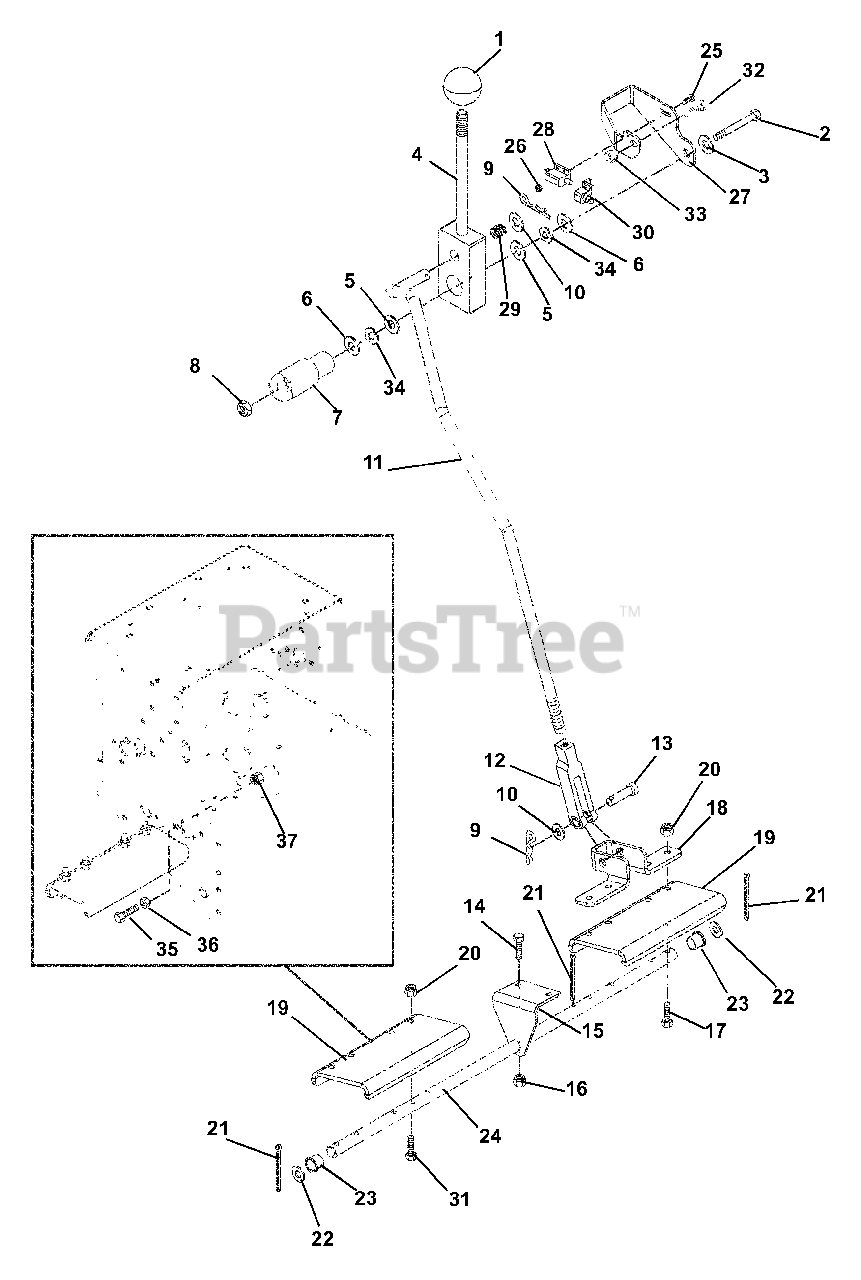

Parking Brake Parts Diagram

  • Title

1

Ariens 07533500

KNOB,BALL -BLACK 1.47" .375-16

$9.99

$

In Stock, Qty 7

0

2

Ariens 05976200

BLT-HEX .44-14X4.5 GR5 YWZC

$

$

Not available

3

Ariens 06441000

@WSHR-FL-STL.50X1.25X.083 YWZC
(Superseded to 06401202)

$2.99

$

In Stock, Qty 6

0

4

Ariens 04927400

WELDMENT- HANDLE

$

$

Not available

5

Ariens 06431600

WSHR-FL-NYL .760X1.25X.030

$3.99

$

Usually ships in 4-12 days

0

6

Ariens 06441500

WSHR-FL-STL.755X1.375X.062YWZC
(Superseded to 06401016)

$3.99

$

In Stock, only 4 left!

0

7

Ariens 04927300

PIVOT, BRAKE

$

$

Not available

8

Ariens 06527500

@NUT-LK-NYL .44-14 YWZC

$2.49

$

Usually ships in 4-12 days

0

9

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 04938200

ROD - BRAKE - HYDRO

$

$

Not available

12

Ariens 08800400

CLEVIS, .38-24 ADJ.

$11.99

$

Usually ships in 4-12 days

0

13

Ariens 06813300

PIN-CLEV .370X1.75

$2.49

$

Usually ships in 4-12 days

0

14

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 04927151

BRACKET, BRAKE SHAFT

$

$

Not available

16

Ariens 06535800

@NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

17

Ariens 05952500

@BLT-HEX .25-20X1.50 GR5 YWZC
(Superseded to 05901739)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 04927751

BRAKE, ARM

$

$

Not available

19

Ariens 04927851

PAD, BRAKE
(Superseded to 03397151)

$48.99

$

Usually ships in 4-12 days

0

20

Ariens 06531000

@NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

21

Ariens 06707100

@PIN-CTR .12X1.00 EXTPRSQCT YZ

$0.99

$

In Stock, Qty 10

0

22

Ariens 06442800

@WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.49

$

In Stock, only 3 left!

0

23

Ariens 05517400

BSHG-FLG .630X1.000X.625 NY

$

$

Not available

24

Ariens 04927600

BRAKE, SHAFT

$90.99

$

Usually ships in 4-12 days

0

25

Ariens 06116900

@SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

26

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

27

Ariens 04937751

BRACKET - BRAKE SWITCH

$17.99

$

Usually ships in 4-12 days

0

28

Ariens 08828100

SWITCH,INTERLOCK

$20.99

$

In Stock, only 1 left!

0

29

Ariens 08338800

SG-COMP .045X.600X.750 WLD7.5

$6.99

$

In Stock, only 2 left!

0

30

Ariens 07534400

BOOT, RUBBER

$

$

Not available

31

Ariens 05947400

@BLT-HEX .25-20X1.25 GR5 YWZC
(Superseded to 05901738)

$1.99

$

In Stock, Qty 5

0

32

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

33

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

34

Ariens 09252000

WASHER-WAVE .760X1.120X.080

$3.49

$

Usually ships in 4-12 days

0

35

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

36

Ariens 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

37

Ariens 06535800

@NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0
