988315 (GR1332FXPCE) - Ariens 32" Walk-Behind Mower, 13hp Kawasaki (SN: 003500 & Above) Wheels Parts Diagram

32" Walk-Behind Mower, 13hp Kawasaki

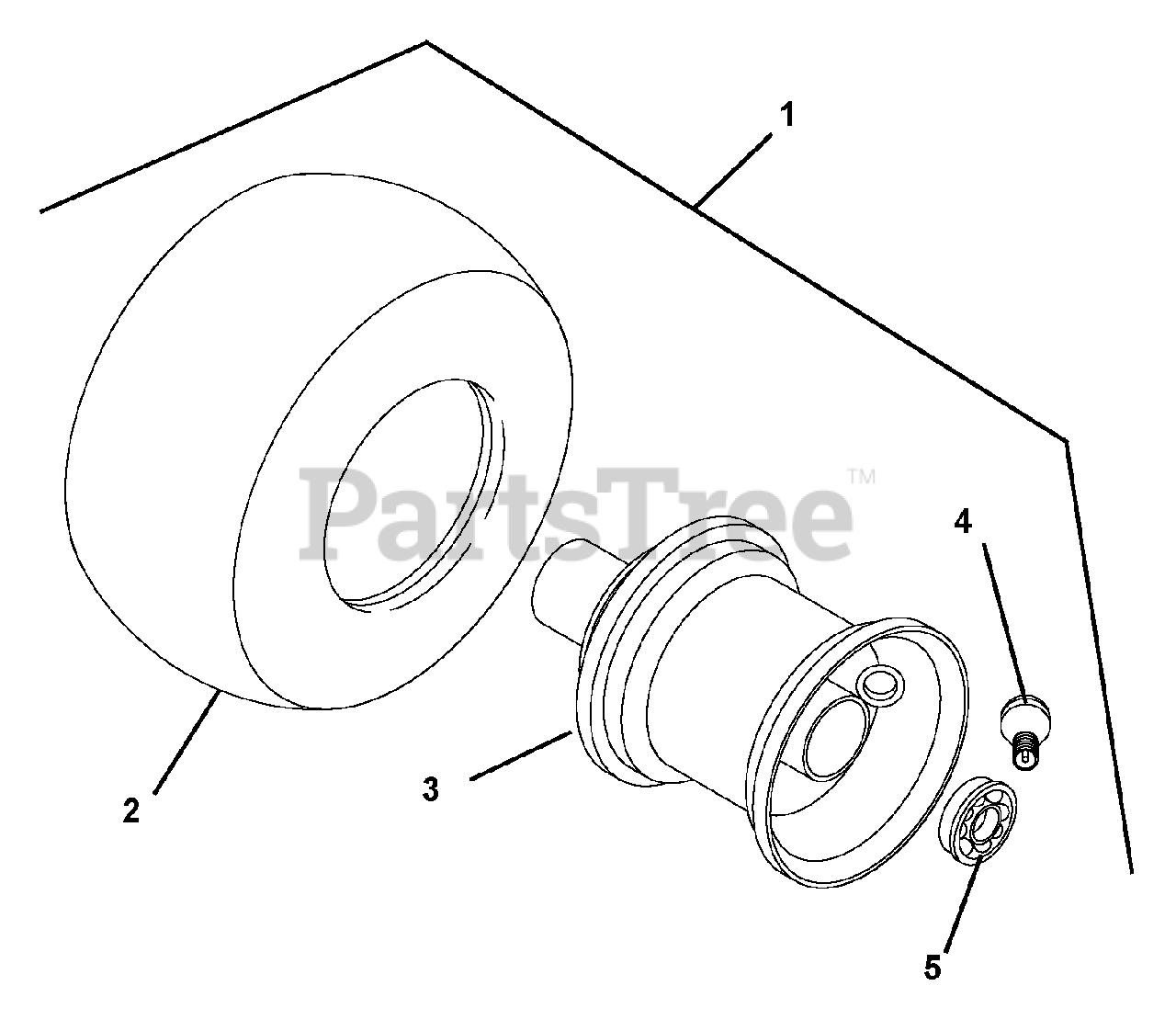

Wheels Parts Diagram

  • Title
1

Ariens 07157300

ASSY,WHL & TIRE 16X650
(Superseded to 07100240)

Note: (Includes 2 - 5)

$

$

Not available

2

Ariens 07157700

TIRE16X650-8 4PLY RPLD 71220

$

$

Not available

3

Ariens 07157600

ASSY, WHEEL
(Superseded to 07100305)

$

$

Not available

4

Ariens 07520000

VALVE STEM ASS'Y

$2.49

$

In Stock, Qty 5

0

5

Ariens 05436500

BEARING, 1" SEALED

$30.99

$

In Stock, only 2 left!

0
