988315 (GR1332FXPCE) - Ariens 32" Walk-Behind Mower, 13hp Kawasaki (SN: 003500 & Above) Gear Selector Parts Diagram

32" Walk-Behind Mower, 13hp Kawasaki

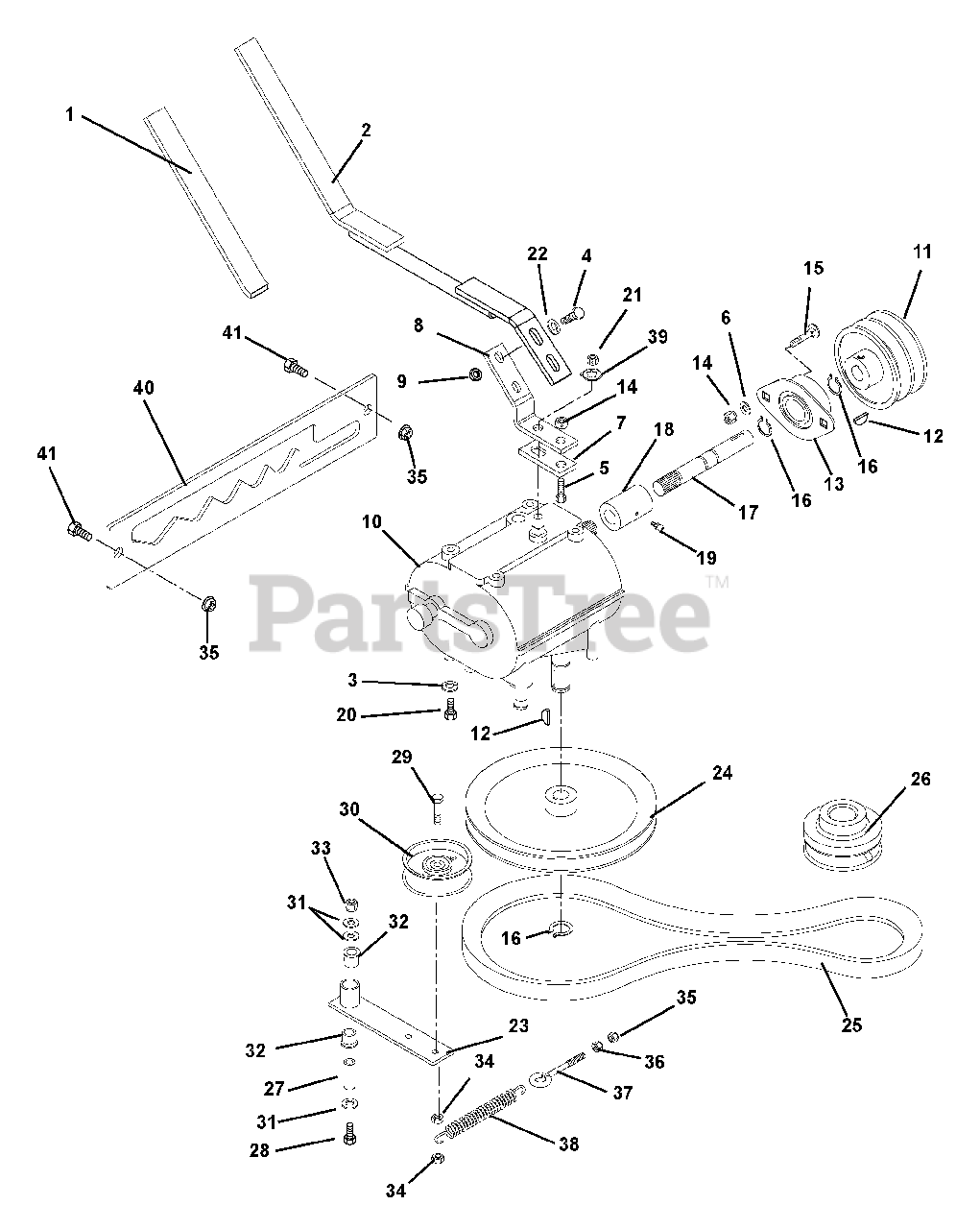

Gear Selector Parts Diagram

  • Title

1

Ariens 07530700

GRIP
(Superseded to 01570000)

$17.99

$

In Stock, only 2 left!

0

2

Ariens 04950851

WMT - SHIFT LEVER

$110.99

$

Usually ships in 4-12 days

0

3

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

4

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 05947700

@BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

6

Ariens 06442300

@WSHR-FL-STL.250X.56X.049 YWZC

$1.99

$

Usually ships in 4-12 days

0

7

Ariens 04923000

PLATE, SHIFT

$

$

Not available

8

Ariens 04922951

BRACKET, SHIFT LEVER

$39.99

$

Usually ships in 4-12 days

0

9

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 04901000

TRANSMISSION

$517.99

$

Usually ships in 4-12 days

0

11

Ariens 07328500

SHEAVE-DRIVE 3.25 OD X .625 ID
(Superseded to 07328551)

$193.99

$

Usually ships in 4-12 days

0

12

Ariens 06608700

KEY-WDRF .19X.75 HRD #9

$1.49

$

In Stock, Qty 20+

0

13

Ariens 05426400

BRG-FLG .625X1.875X.797

$62.99

$

In Stock, Qty 8

0

14

Ariens 06531000

@NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

15

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 05711900

RG-RTNG-EXT .579X.035

$0.99

$

In Stock, Qty 20+

0

17

Ariens 04923100

SHAFT, HALF

$68.99

$

Usually ships in 4-12 days

0

18

Ariens 04901200

COUPLER

$40.99

$

Usually ships in 4-12 days

0

19

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

20

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 06539400

NUT-LK-CTR .375-24 YWZC
(Superseded to 06500929)

$2.49

$

In Stock, only 4 left!

0

22

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 08844200

WLDMT,GROUND DRIVE IDLER
(Superseded to 08844251)

$58.99

$

Usually ships in 4-12 days

0

24

Ariens 07316900

PLY-V 7.50X.626

$

$

Not available

25

Ariens 07214200

V-BELT, 4L-COGGED

$26.99

$

In Stock, only 1 left!

0

26

Ariens 04950000

SHEAVE - CLUTCH

$

$

Not available

27

Ariens 08815100

BUSH.,S.560X.745X2.04 ST

$21.99

$

In Stock, only 1 left!

0

28

Ariens 05960000

@BLT-HEX .50-13X3.25 GR5 YWZC
(Superseded to 05901634)

$3.99

$

In Stock, only 1 left!

0

29

Ariens 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

30

Ariens 07320700

IDLER-PLY FLAT 3.25 X .38 X1.0

$34.99

$

In Stock, only 1 left!

0

31

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

32

Ariens 05518400

BSHG-FLG .762X1.0X.580X1.48 NY

$4.99

$

In Stock, Qty 20+

0

33

Ariens 06540600

@NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

34

Ariens 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

35

Ariens 06535800

@NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

36

Ariens 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

37

Ariens 07030000

BLT-EYE .375-16X2.50 YWZC

$7.99

$

Usually ships in 4-12 days

0

38

Ariens 08336100

SPRING, EXT
(Superseded to 08300512)

$17.99

$

In Stock, Qty 20+

0

39

Ariens 06306700

WSHR-LK .375X.130 YWZC

$3.99

$

In Stock, only 1 left!

0

40

Ariens 04950453

PLATE - SHIFT LEVER DETENT

$27.99

$

Usually ships in 4-12 days

0

41

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0
