988315 (GR1332FXPCE) - Ariens 32" Walk-Behind Mower, 13hp Kawasaki (SN: 002500 - 003499) Frame And Handlebars Parts Diagram

32" Walk-Behind Mower, 13hp Kawasaki

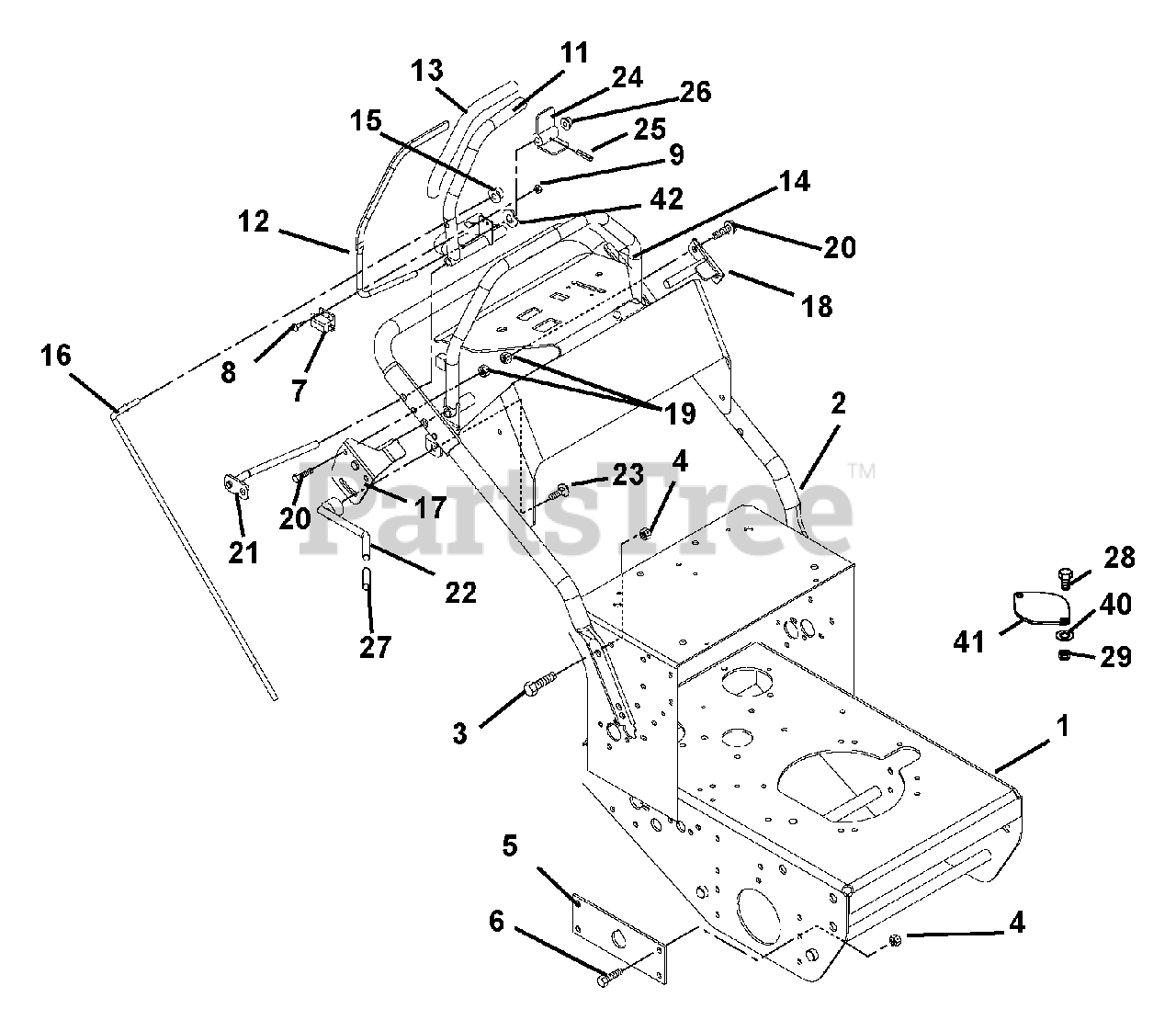

Frame And Handlebars Parts Diagram

  • Title

1

Ariens 58804200

KIT-FRAME W/DECALS

$

$

Not available

2

Ariens 58807000

KIT-HANDLEBAR/DECAL GR13/15-PS

Note: (315)

$

$

Not available

3

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 06535800

@NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

Note: (315)

$2.49

$

In Stock, only 3 left!

0

5

Ariens 04922300

PLATE, SUPPORT

Note: (315)

$

$

Not available

6

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

Note: (315)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 03657100

SWITCH- SINGLE POLE N.O.

Note: (315)

$9.49

$

In Stock, only 1 left!

0

8

Ariens 06116900

@SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

9

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 04944351

WMT-LEVER-RH SPEED CONTROL-GR

Note: (315)

$325.99

$

Usually ships in 4-12 days

0

11

Ariens 04944451

WMT-LEVER-LH SPEED CONTROL-GR

Note: (315)

$310.99

$

Usually ships in 4-12 days

0

12

Ariens 04944100

LEVER - OPERATOR PRESENCE

$47.99

$

Usually ships in 4-12 days

0

13

Ariens 07534500

GRIP - HANDLEBAR

$27.99

$

In Stock, only 2 left!

0

14

Ariens 04937951

WMT - SPEED CONTROL STOP
(Superseded to 04944951)

Note: (Serial # 101-2999)

$256.99

$

Usually ships in 4-12 days

0

14

Ariens 04944951

WMT - SPEED CONTROL STOP

Note: (Serial # 3000 and up)

$256.99

$

Usually ships in 4-12 days

0

15

Ariens 05711300

RG-RTNG-EXT .375X.010

Note: (315)

$0.99

$

In Stock, only 2 left!

0

16

Ariens 04950500

ROD - STEERING

Note: (315)

$

$

Not available

17

Ariens 04938000

WMT-CONTROL STOP LIMITER-RH

Note: (Serial # 101-2999)

$41.99

$

Usually ships in 4-12 days

0

17

Ariens 04944800

WMT - CONTROL STOP LIMITER -RH

Note: (Serial # 3000 and up)

$

$

Not available

18

Ariens 04938300

WMT-CONTROL STOP LIMITER-LH

$

$

Not available

19

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

21

Ariens 04943200

WMT - SPEED CONTROL PIVOT - RH

$

$

Not available

21

Ariens 04943300

WMT - SPEED CONTROL PIVOT - LH

$

$

Not available

22

Ariens 04938600

LEVER - CONTROL STOP LOCK

Note: (Serial # 101-2999)

$103.99

$

Usually ships in 4-12 days

0

22

Ariens 04944700

LEVER - CONTROL STOP LOCK

Note: (Serial # 3000 and up)

$34.99

$

Usually ships in 4-12 days

0

23

Ariens 06214100

BLT-RDHDSQSHK.31-18X.75 GR2 YW
(Superseded to 06200309)

Note: (Serial # 101-2999)

$2.49

$

In Stock, Qty 20+

0

23

Ariens 06223900

@BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

Note: (Serial # 3000 and up)

$1.49

$

In Stock, only 4 left!

0

24

Ariens 04936900

ACTUATOR - SWITCH

$58.99

$

Usually ships in 4-12 days

0

25

Ariens 05803400

PIN-ROLL .125X.75

$0.99

$

In Stock, Qty 16

0

26

Ariens 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 20+

0

27

Ariens 07528300

GRIP,HAND CLUTCH LEVER

$3.99

$

In Stock, only 2 left!

0

28

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

Note: (315)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

Note: (315)

$1.49

$

In Stock, Qty 20+

0

40

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

41

Ariens 04926053

PLATE, COVER

Note: (315)

$

$

Not available

42

Ariens 01320200

WAVE WASHER .390X.655X.110

$3.49

$

In Stock, Qty 7

0
