988315 (GR1332FXPCE) - Ariens 32" Walk-Behind Mower, 13hp Kawasaki (SN: 000101 - 002499) Transmission Parts Diagram

32" Walk-Behind Mower, 13hp Kawasaki

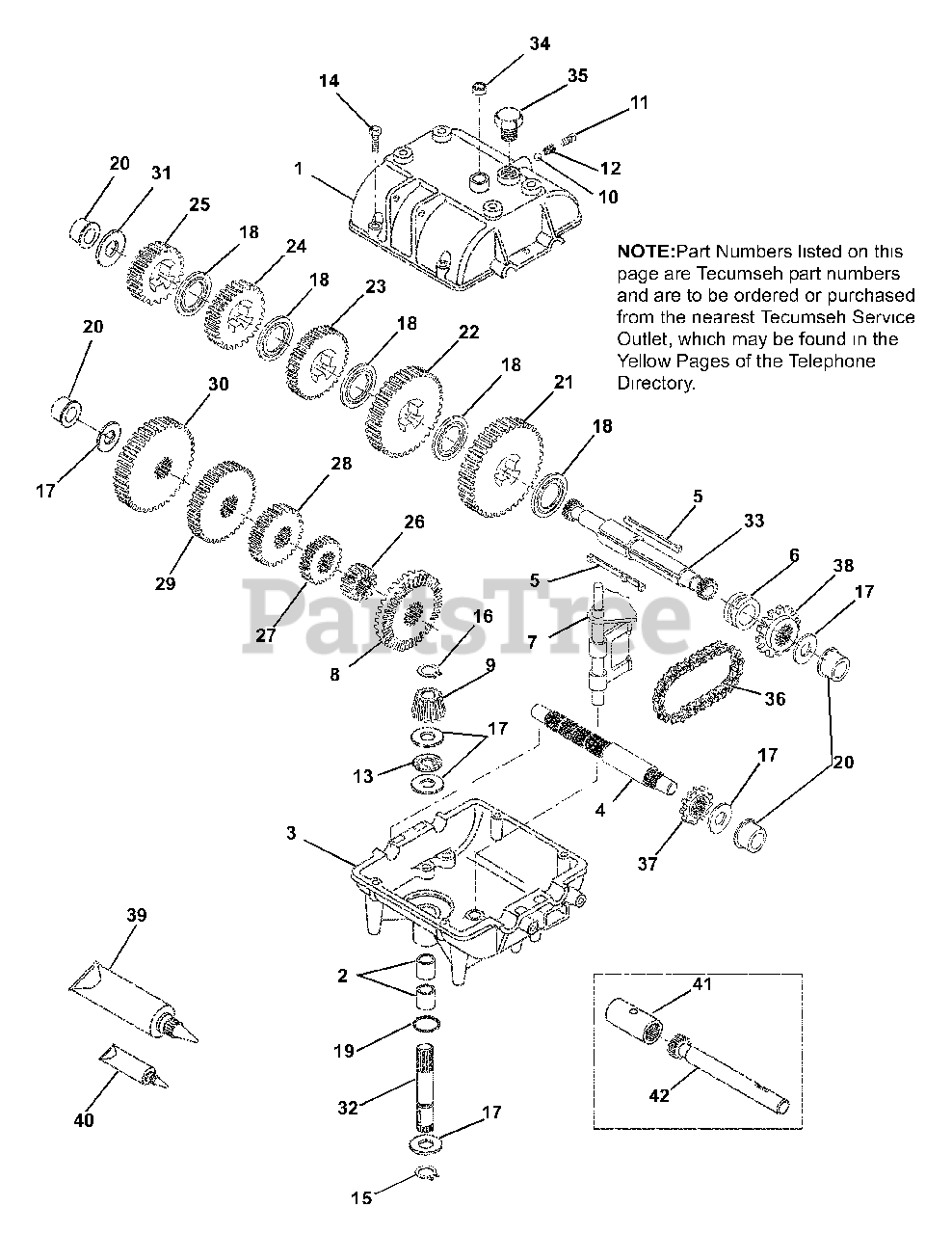

Transmission Parts Diagram

  • Title

1

Ariens 772083A

Transmission Cover

$

$

Not available

2

Ariens 780086A

Needle Bearing .625 ID x .50

$

$

Not available

Ariens 780142

Needle Bearing .625 ID x .75

$

$

Not available

3

Ariens 770061A

Transmission Case

$

$

Not available

4

Ariens 776134

Countershaft

$

$

Not available

5

Ariens 792089A

Shift Key

$

$

Not available

6

Ariens 784266

Shift Collar

$

$

Not available

7

Ariens 784376

Shift Rod & Fork Assembly

$

$

Not available

8

Ariens 778154

Bevel Gear (42 Teeth)

Note: (42 Teeth)

$

$

Not available

9

Ariens 792176

Bevel Pinion (14 Teeth-Steel)

Note: (14 Teeth-Steel)

$

$

Not available

10

Ariens 792077

Steel Ball .31 Diameter

$

$

Not available

11

Ariens 792078

Set Screw .38-16 x .38

$

$

Not available

12

Ariens 780079

Spring

$

$

Not available

13

Ariens 792071

Thrust Bearing

$

$

Not available

14

Ariens 792073A

Screw .25-20 x 1.25

$

$

Not available

15

Ariens 792035

Ring, Retaining

$

$

Not available

16

Ariens 788040

Ring, Retaining

$

$

Not available

17

Ariens 780072

Washer

$

$

Not available

18

Ariens 780108

Washer

$

$

Not available

19

Ariens 792001

"O" Ring

$

$

Not available

20

Ariens 780105A

Bushing, Flanged

$

$

Not available

21

Ariens 778146A

Spur Gear (37 Teeth)

Note: (37 Teeth)

$

$

Not available

22

Ariens 778125

Spur Gear (35 Teeth)

Note: (35 Teeth)

$

$

Not available

23

Ariens 778239A

Spur Gear (32 Teeth-Steel)

Note: (32 Teeth-Steel)

$

$

Not available

24

Ariens 778124A

Spur Gear (30 Teeth)

Note: (30 Teeth)

$

$

Not available

25

Ariens 778250

Spur Gear (27 Teeth)

Note: (27 Teeth)

$

$

Not available

26

Ariens 778145

Spur Gear (12 Teeth)

Note: (12 Teeth)

$

$

Not available

27

Ariens 778151

Spur Gear (15 Teeth)

Note: (15 Teeth)

$

$

Not available

28

Ariens 778240

Spur Gear (18 Teeth)

Note: (18 Teeth)

$

$

Not available

29

Ariens 778126A

Spur Gear (20 Teeth)

Note: (20 Teeth)

$

$

Not available

30

Ariens 778249

Spur Gear (23 Teeth)

Note: (23 Teeth)

$

$

Not available

31

Ariens 780139

Washer

$

$

Not available

32

Ariens 776135

Input Shaft 3.69 long

$

$

Not available

33

Ariens 776402

Shifter and Brake Shaft

$

$

Not available

34

Ariens 788069

Square Cut Ring

$

$

Not available

35

Ariens 792074

Threaded Plug

$

$

Not available

36

Ariens 786081

Roller Chain (No. 41, 24 Links

$

$

Not available

37

Ariens 786082

Sprocket (9 Teeth)

Note: (9 Teeth)

$

$

Not available

38

Ariens 786083

Sprocket (18 Teeth)

Note: (18 Teeth)

$

$

Not available

39

Ariens 788067B

Grease (32 oz. Bottle Bentonite Grease)

Note: (32 oz. Bottle Bentonite Grease)

$

$

Not available

40

Ariens 510334

Gasket Eliminator (Loctite #515)

Note: (Loctite #515)

$

$

Not available

41

Ariens 786176

Optional Coupling (1.813 OD)

Note: (1.813 OD)

$

$

Not available

Ariens 786177

Optional Coupling (1.188 OD)

Note: (1.188 OD)

$

$

Not available

42

Ariens 776401

Optional Connector (6.095 long)

Note: (6.095 long)

$

$

Not available

Ariens 776403

Optional Connector (6.25 long)

Note: (6.25 long)

$

$

Not available

Ariens 776407

Optional Connector (6.630 long)

Note: (6.630 long)

$

$

Not available

Ariens 776416

Optional Connector (7.000 long)

Note: (7.000 long)

$

$

Not available
