988315 (GR1332FXPCE) - Ariens 32" Walk-Behind Mower, 13hp Kawasaki (SN: 000101 - 002499) Fixed Deck And Mower Frame Parts Diagram

32" Walk-Behind Mower, 13hp Kawasaki

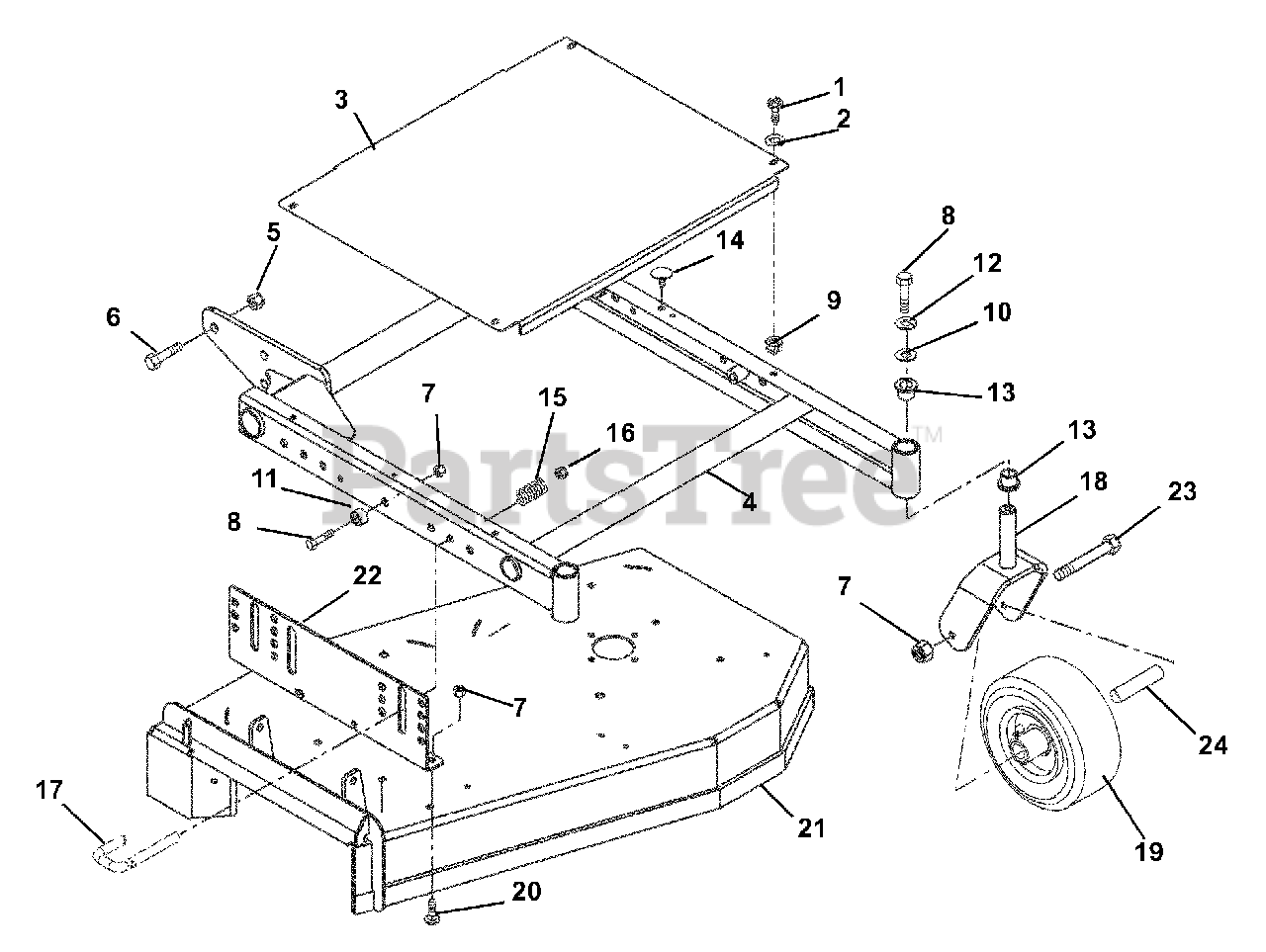

Fixed Deck And Mower Frame Parts Diagram

  • Title
1

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

2

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

3

Ariens 04929753

COVER - BELT - PRO - 32"

Note: (315)

$

$

Not available

Ariens 04916753

COVER - BELT - PRO MOWER

Note: (316)

$

$

Not available

4

Ariens 04929653

WMT - MOWER FRAME - 32"

Note: (315)

$

$

Not available

Ariens 04916653

WMT - MOWER FRAME - 36"

Note: (316)

$

$

Not available

5

Ariens 06540700

@NUT-LK-NYL .625-11 YWZC

$3.99

$

In Stock, only 2 left!

0

6

Ariens 05968700

@BLT-HEX .62-11X1.50 GR5 YWZC

$3.99

$

In Stock, only 3 left!

0

7

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 07538100

GRMT,PLASTIC

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06443400

WSHR-FL-STL .380X1.50X.125YWZC
(Superseded to 06401106)

$3.49

$

In Stock, Qty 9

0

11

Ariens 08553700

BSHG-SLV .391X.688X.52 PM

$5.99

$

In Stock, only 1 left!

0

12

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 05533600

BSHG-FLG 1.00X1.25X1.50X1.50EP
(Superseded to 05500934)

$6.99

$

In Stock, Qty 20+

0

14

Ariens 07503100

BUMPER GROMMET

$3.49

$

In Stock, only 3 left!

0

15

Ariens 08325900

SPRG, COMP .058X.65X2.13 WLD15

$9.49

$

Usually ships in 4-12 days

0

16

Ariens 06536300

@NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

17

Ariens 04920400

PIN - LATCH

$36.99

$

Usually ships in 4-12 days

0

18

Ariens 04917053

WMT - CASTER FORK

$148.99

$

Usually ships in 4-12 days

0

19

Ariens 07157200

WHEEL 9 X 3.50 SEMI-PNEUMATIC
(Superseded to 07100931)

$136.99

$

In Stock, only 1 left!

0

20

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

21

Ariens 58804400

KIT-32" FX MOWER DECK W/DECALS

Note: (315)

$

$

Not available

Ariens 58804500

KIT-36" FX MOWER DECK W/DECALS

Note: (316)

$475.99

$

Usually ships in 4-12 days

0

22

Ariens 58806600

KIT-MOWER SIDE SUPT BRKT-RH&LH

$157.99

$

Usually ships in 4-12 days

0

23

Ariens 05925400

BLT-HEX .38-16X5.50 YWZC
(Superseded to 05982000)

$3.99

$

In Stock, only 2 left!

0

24

Ariens 04916900

BEARING .625 X .380 X 4.08

$71.99

$

Usually ships in 4-12 days

0
