988315 (GR1332FXPCE) - Ariens 32" Walk-Behind Mower, 13hp Kawasaki (SN: 000101 - 002499) Discharge Chute And Baffles Parts Diagram

32" Walk-Behind Mower, 13hp Kawasaki

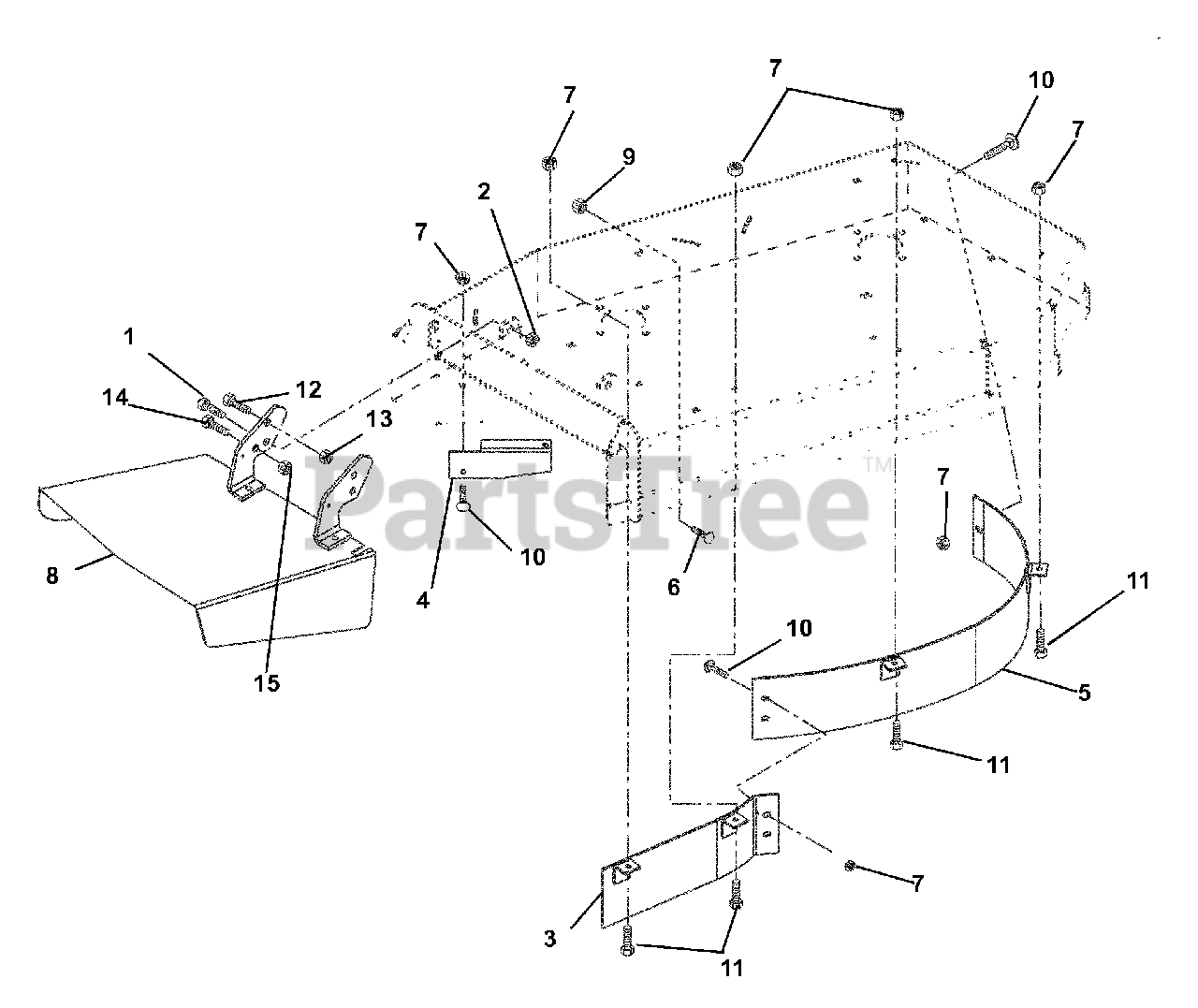

Discharge Chute And Baffles Parts Diagram

  • Title
1

Ariens 05958900

@BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

2

Ariens 06540600

@NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

3

Ariens 04929551

BAFFLE - RIGHT FRONT - 32"
(Superseded to 04929553)

Note: (315)

$

$

Not available

Ariens 04916351

BAFFLE - RIGHT FRONT - 36"
(Superseded to 04916353)

Note: (316)

$63.99

$

Usually ships in 4-12 days

0

4

Ariens 04930251

DEFLECTOR - 32"
(Superseded to 04930253)

$

$

Not available

5

Ariens 04929451

BAFFLE - LEFT FRONT - 32"
(Superseded to 04929453)

Note: (315)

$

$

Not available

Ariens 04916251

BAFFLE - LEFT FRONT - 36"
(Superseded to 04916253)

Note: (316)

$55.99

$

Usually ships in 4-12 days

0

6

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

7

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 04917853

WMT - DISCHARGE CHUTE - PRO

$187.99

$

Usually ships in 4-12 days

0

9

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

11

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

Note: (315)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 06531000

@NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

Note: (315)

$4.99

$

Usually ships in 4-12 days

0
