988314 (HR 1536 FXPCE) - Gravely Pro-Hydro 36" Walk-Behind Mower, Pro-Steer, 15hp Kawasaki (SN: 002500 & Above) 36" And 48" Fixed Deck And Mower Frame Parts Diagram

Pro-Hydro 36" Walk-Behind Mower, Pro-Steer, 15hp Kawasaki

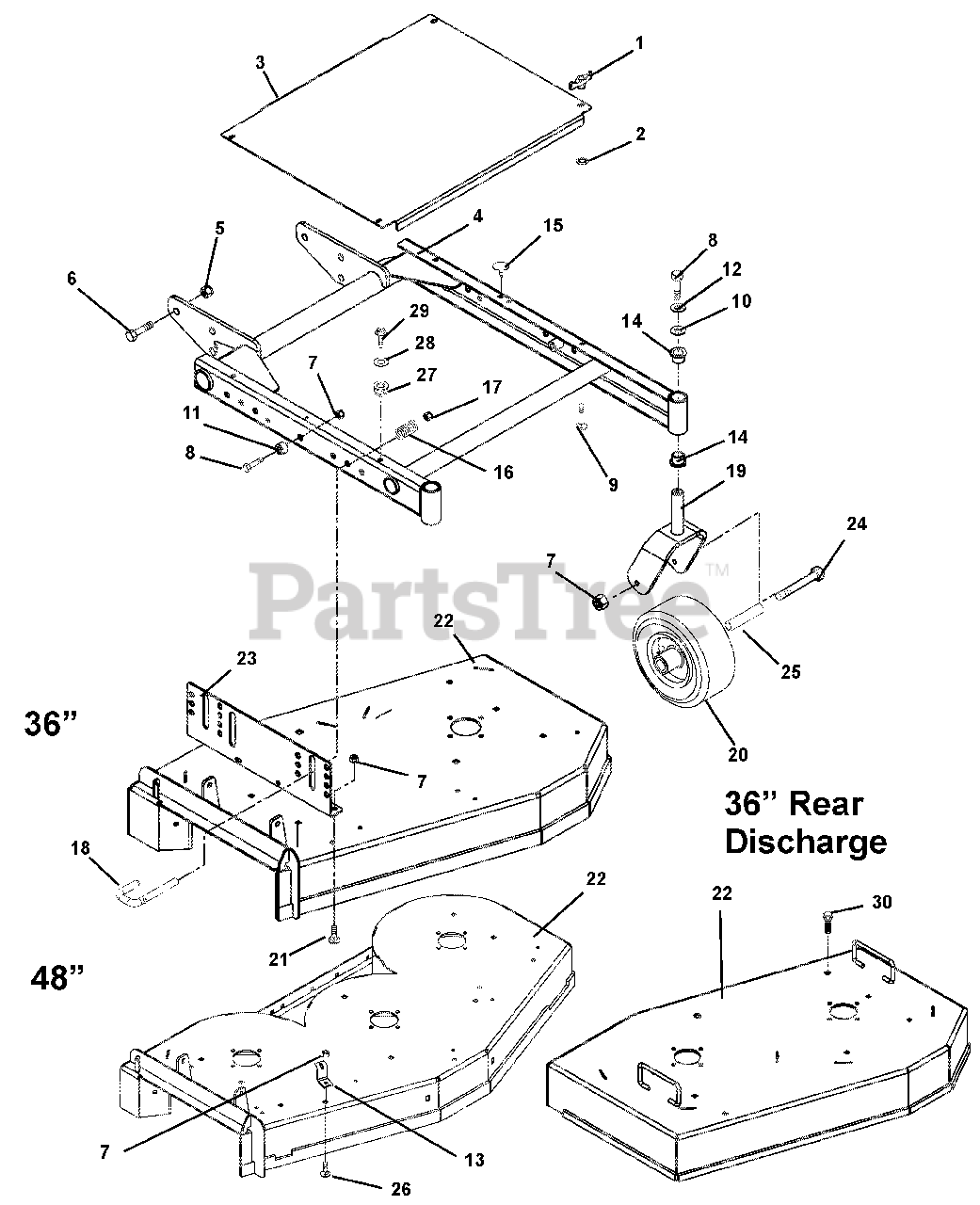

36" And 48" Fixed Deck And Mower Frame Parts Diagram

  • Title

1

Gravely 07531700

Knob- Wing .312-18 (106, 120)
(Superseded to 07534800)

Note: (106, 120)

$3.49

$

In Stock, Qty 20+

0

2

Gravely 040380

Nut-Push .312 (106, 120)
(Superseded to 06514900)

Note: (106, 120)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 04916753

Cover, Belt Pro Mower (120, 314)

Note: (120, 314)

$

$

Not available

Gravely 04919853

Cover, Belt Pro Mower (106)

Note: (106)

$56.99

$

Usually ships in 4-12 days

0

Gravely 04929753

Cover- Belt- Pro- 32

$

$

Not available

4

Gravely 04916653

Weldment - Mower Frame 36" (120, 314)

Note: (120, 314)

$

$

Not available

Gravely 04919753

Weldment - Mower Frame 48" (106)

Note: (106)

$

$

Not available

5

Gravely 06540700

Nut-Locking-Nylon .625-11

$3.99

$

In Stock, only 2 left!

0

6

Gravely 05968700

Bolt-Hex .62-11 x 1.50

$3.99

$

In Stock, only 3 left!

0

7

Gravely 06542000

Nut-Locking-Top-Flange .38-16 (120)
(Superseded to 06500822)

Note: (120)

$1.49

$

In Stock, Qty 20+

0

Gravely 06542000

Nut-Locking-Top-Flange .38-16 (106)
(Superseded to 06500822)

Note: (106)

$1.49

$

In Stock, Qty 20+

0

Gravely 06542000

Nut-Locking-Top-Flange .38-16 (314)
(Superseded to 06500822)

Note: (314)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 05958000

Bolt-Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06221800

Bolt-Round Head Square Neck .31-18 x 1.00 (106, 120)
(Superseded to 06200237)

Note: (106, 120)

$2.49

$

In Stock, only 3 left!

0

10

Gravely 06443400

Washer-Flat-Steel .38 x 1.50 x .125
(Superseded to 06401106)

$3.49

$

In Stock, Qty 9

0

11

Gravely 043922

Bushing
(Superseded to 08553700)

$5.99

$

In Stock, only 1 left!

0

12

Gravely 06308800

Washer-Locking .38 x .094 Regular
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 09245353

Anchor, Spring (106)

Note: (106)

$

$

Not available

14

Gravely 05533600

Bushing-Flange 1.00 x 1.25 x 1.50 x 1.50
(Superseded to 05500934)

$6.99

$

In Stock, Qty 20+

0

15

Gravely 07503100

Bumper Grommet .125 x .25 Dia.

$3.49

$

In Stock, only 3 left!

0

16

Gravely 051650

Spring-Compression .058 x .65 x 2.13
(Superseded to 08325900)

$9.49

$

Usually ships in 4-12 days

0

17

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

18

Gravely 04920400

Pin- Latch

$36.99

$

Usually ships in 4-12 days

0

19

Gravely 04917053

Weldment-Caster Fork

$148.99

$

Usually ships in 4-12 days

0

20

Gravely 07157200

Wheel 9 x 3.50
(Superseded to 07100931)

$136.99

$

In Stock, only 1 left!

0

21

Gravely 06223600

Bolt-Round Head Square Neck .38-16 x 1.00 Grade 5 (106, 120)
(Superseded to 06200313)

Note: (106, 120)

$2.49

$

In Stock, Qty 10

0

Gravely 06223600

Bolt-Round Head Square Neck .38-16 x 1.00 Grade 5 (314)
(Superseded to 06200313)

Note: (314)

$2.49

$

In Stock, Qty 10

0

22

Gravely 58804500

Kit, 36" Fixed Mower Deck with Decals (120)

Note: (120)

$475.99

$

Usually ships in 4-12 days

0

Gravely 58804600

Kit, 48" Fixed Mower Deck with Decals (106)

Note: (106)

$

$

Not available

Gravely 58805000

Kit, 36" Rear Discharge Fixed Mower Deck with Decals (314)

Note: (314)

$

$

Not available

23

Gravely 58806600

Kit-Mower Side Support Bracket-Right Hand and Left Hand (314)

Note: (314)

$157.99

$

Usually ships in 4-12 days

0

24

Gravely 05925400

Bolt-Hex .38-16 x 5.50
(Superseded to 05982000)

$3.99

$

In Stock, only 2 left!

0

25

Gravely 04916900

Bearing .625 x .380 x 4.08

$71.99

$

Usually ships in 4-12 days

0

26

Gravely 06223900

Bolt-Round Head Square Neck .38-16 x .75 Grade 5
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

27

Gravely 07538100

Grommet, Plastic (314)

Note: (314)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 06437300

Washer-Flat-Steel .281 x .62 x .065 (314)
(Superseded to 06401001)

Note: (314)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 07412000

Screw-Tapping .25-20 x .50 Hex Washer Head (314)
(Superseded to 07400122)

Note: (314)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 05948700

Bolt-Hex .38-16X1.00 Grade 5 (314)
(Superseded to 05901711)

Note: (314)

$1.49

$

In Stock, Qty 20+

0
