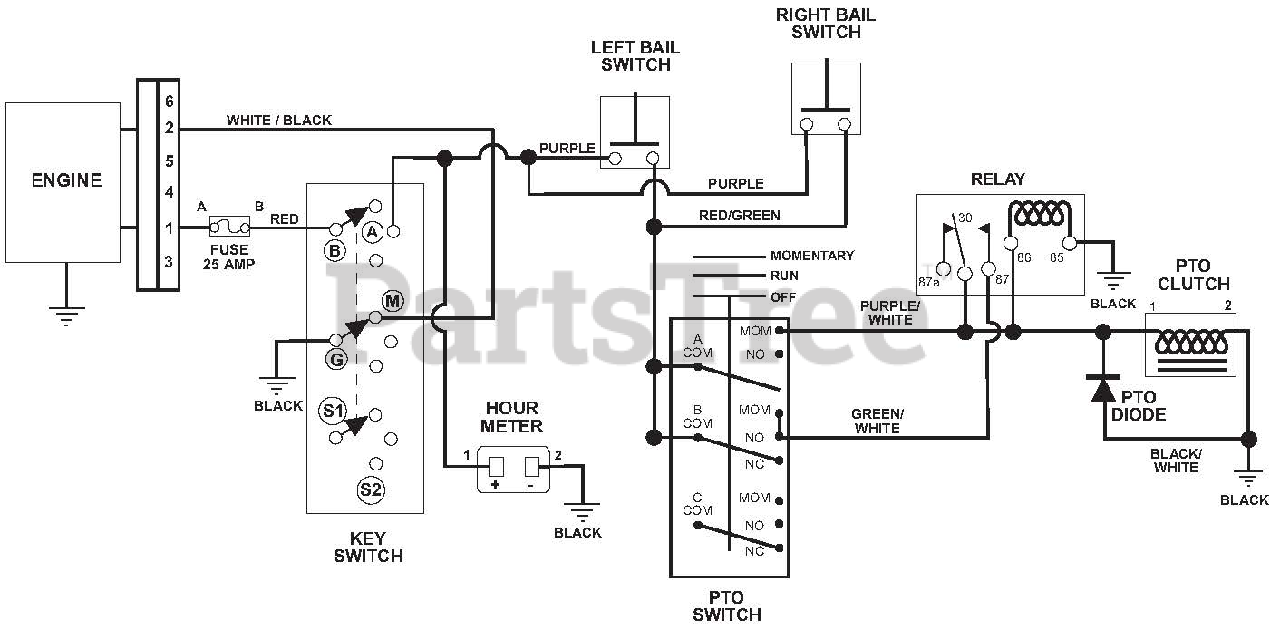

988313 (GR 1332 FXPCE) - Gravely Pro-Gear 32" Walk-Behind Mower, Pro-Steer, 13hp Kawasaki (SN: 003000 & Above) Wiring Diagram - Recoil Start - Pro Steer Parts Diagram

Pro-Gear 32" Walk-Behind Mower, Pro-Steer, 13hp Kawasaki

Wiring Diagram - Recoil Start - Pro Steer Parts Diagram
