988313 (GR 1332 FXPCE) - Gravely Pro-Gear 32" Walk-Behind Mower, Pro-Steer, 13hp Kawasaki (SN: 003000 & Above) Gear Selector Parts Diagram

Pro-Gear 32" Walk-Behind Mower, Pro-Steer, 13hp Kawasaki

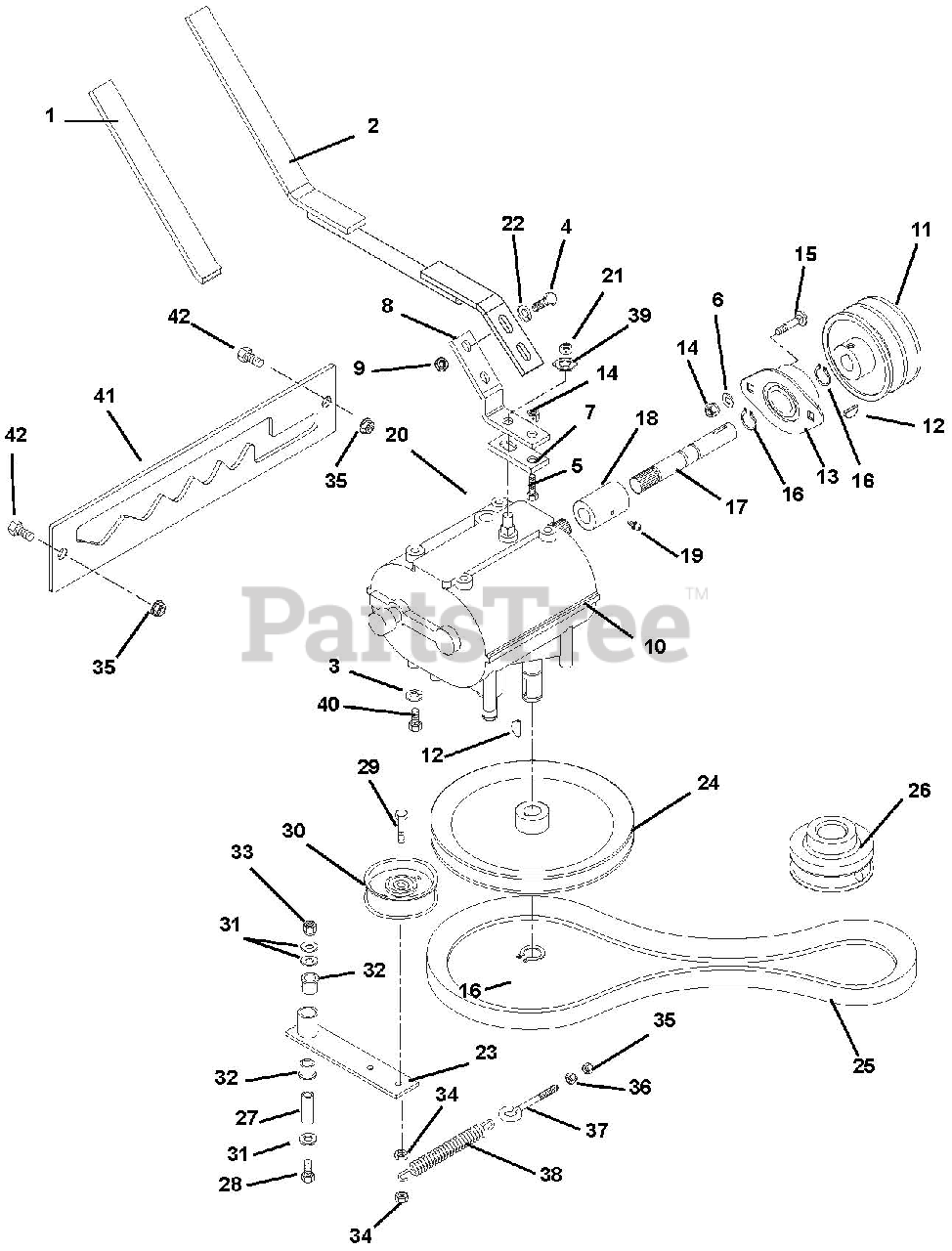

Gear Selector Parts Diagram

  • Title
1

Gravely 07530700

Grip
(Superseded to 01570000)

$17.99

$

In Stock, only 2 left!

0

2

Gravely 04950851

Lever, Shift

$110.99

$

Usually ships in 4-12 days

0

3

Gravely 06308600

Washer-Locking .31 x .078 Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 05947700

Bolt-Hex .25-20 x 1.00 Grade 5
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

6

Gravely 06442300

Washer-Flat-Steel .25 x .562 x .049

$1.99

$

Usually ships in 4-12 days

0

7

Gravely 04923000

Plate, Shift

$

$

Not available

8

Gravely 04922951

Arm, Shift

$39.99

$

Usually ships in 4-12 days

0

9

Gravely 06543100

Nut-Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 04901000

Transmission

$517.99

$

Usually ships in 4-12 days

0

11

Gravely 07328500

Sheave, Drive
(Superseded to 07328551)

$193.99

$

Usually ships in 4-12 days

0

12

Gravely 06608700

Key-Woodruff .19 x .75

$1.49

$

In Stock, Qty 20+

0

13

Gravely 05426400

Bearing-Flange .625 x 1.875 x .797

$62.99

$

In Stock, Qty 8

0

14

Gravely 06531000

Nut-Locking-Nylon .25-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

15

Gravely 06219900

Bolt-Round Head Square Neck .25-20 x .75 Grade 5
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 05711900

Ring-Retaining-External .579 x .930

$0.99

$

In Stock, Qty 20+

0

17

Gravely 04923100

Shaft, Half

$68.99

$

Usually ships in 4-12 days

0

18

$40.99

$

Usually ships in 4-12 days

0

19

Gravely 07012600

Fitting, Lube, .25-28
(Superseded to 07001806)

$

$

Not available

20

Gravely 08803700

Switch-Neutral Start

Note: (N.C.) (988100, 102, 103, 110, 112)

$34.99

$

In Stock, only 1 left!

0

21

Gravely 06539400

Nut-Locking-Center .38-24
(Superseded to 06500929)

$2.49

$

In Stock, only 4 left!

0

22

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 08844251

Weldment, Ground Drive Idler

$58.99

$

Usually ships in 4-12 days

0

24

Gravely 07316900

Pulley-V 7.50 x .63 Sheave Transmission

$

$

Not available

25

Gravely 07214200

V-Belt 4L-Section 33.9

$26.99

$

In Stock, only 1 left!

0

26

Gravely 04950000

Sheave, Clutch

$

$

Not available

27

Gravely 08815100

Bushing, Steel .56 x .745 x 2.04

$21.99

$

In Stock, only 1 left!

0

28

Gravely 05960000

Bolt-Hex .50-13 x 3.25 Grade 5
(Superseded to 05901634)

$3.99

$

In Stock, only 1 left!

0

29

Gravely 05963300

Bolt-Hex .38-16 x 2.00 Grade 5
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

30

Gravely 07320700

Idler-Pulley Flat 3.25 x .625

$34.99

$

In Stock, only 1 left!

0

31

Gravely 06441900

Washer-Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 05518400

Bushing-Flange Nylon .762 x 1.00 x .58 x 1.48

$4.99

$

In Stock, Qty 20+

0

33

Gravely 06540600

Nut-Locking-Nylon .50-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

34

Gravely 06537200

Nut-Locking-Jam-Center .375-16
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

36

Gravely 06529400

Nut-Hex .38-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

37

Gravely 07030000

Eye Bolt

$7.99

$

Usually ships in 4-12 days

0

38

Gravely 08336100

Spring, Extension
(Superseded to 08300512)

$17.99

$

In Stock, Qty 20+

0

39

Gravely 06306700

Washer, Locking .38 x .13

$3.99

$

In Stock, only 1 left!

0

40

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

41

Gravely 04950453

Plate, Shift Lever Detent

$27.99

$

Usually ships in 4-12 days

0

42

Gravely 05948700

Bolt-Hex .38-10 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0
