988313 (GR 1332 FXPCE) - Gravely Pro-Gear 32" Walk-Behind Mower, Pro-Steer, 13hp Kawasaki (SN: 003000 & Above) 32" And 36" Belts, Idlers And Blades Parts Diagram

Pro-Gear 32" Walk-Behind Mower, Pro-Steer, 13hp Kawasaki

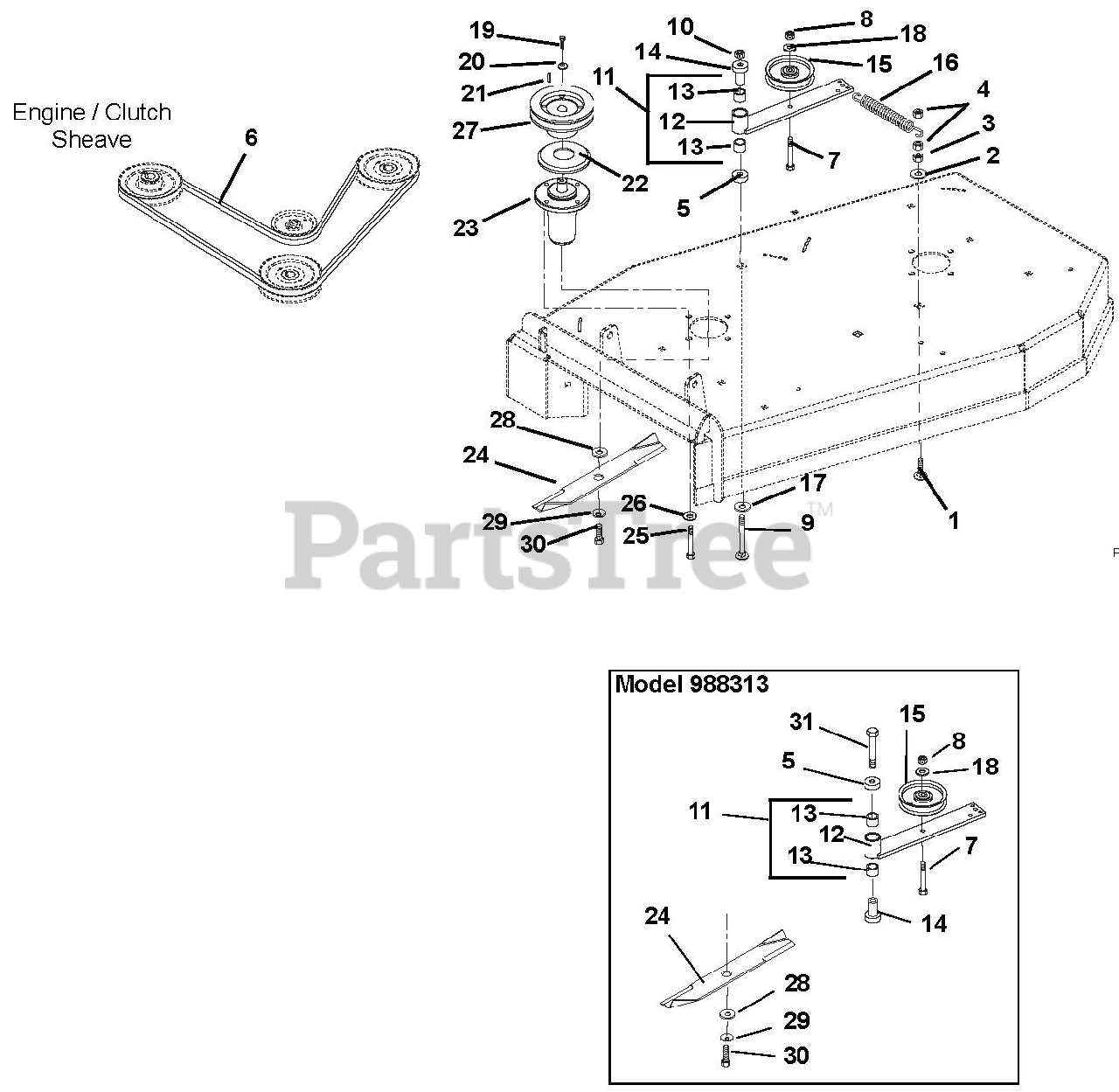

32" And 36" Belts, Idlers And Blades Parts Diagram

  • Title

1

Gravely 06224200

Bolt-Round Head Square Neck .38-16 x 1.50 Grade 5
(Superseded to 06200416)

$3.99

$

In Stock, only 2 left!

0

2

Gravely 06308800

Washer-Locking .38 x .094 Regular
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 06529400

Nut-Hex .38-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06445000

Washer-Flat-Steel .515 x 1.625 x .25

$5.99

$

In Stock, only 4 left!

0

6

Gravely 07240100

V-Belt B-Section 36.70 x .650

Note: (988100, 114)

$85.99

$

In Stock, only 1 left!

0

6

Gravely 07240000

V-Belt B-Section 35.47 x .650

Note: (988110, 118, 313)

$91.99

$

In Stock, only 2 left!

0

7

Gravely 06225400

Bolt-Round Head Square Neck .38-16 x 2.75 Grade 5
(Superseded to 06200316)

$3.99

$

In Stock, only 1 left!

0

8

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06218600

Bolt-Round Head Square Neck .50-13 x 3.75 Grade 5

$7.99

$

Usually ships in 4-12 days

0

10

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

11

Gravely 09286500

Assembly, Idler Pivot Arm

Note: (Contains Items 12 & 13)

$164.99

$

In Stock, only 1 left!

0

12

Gravely 09286451

Weldment, Idler Pivot Arm

$170.99

$

Usually ships in 4-12 days

0

13

Gravely 05435800

Bearing, 1.00 x 1.12 x .75

$9.49

$

In Stock, Qty 10

0

14

Gravely 07053100

Bearing, Pedestal Powdered Metal
(Superseded to 07000031)

$80.99

$

In Stock, only 1 left!

0

15

Gravely 07327800

Idler-Flat 4.00 x .38

Note: (2.00 W)

$87.99

$

In Stock, only 2 left!

0

16

Gravely 08336000

Spring, Extension
(Superseded to 08300728)

$26.99

$

In Stock, Qty 20+

0

17

Gravely 06441500

Washer-Flat-Steel .755 x 1.375 x .062
(Superseded to 06401016)

$3.99

$

In Stock, only 4 left!

0

18

Gravely 06425500

Washer-Flat-Steel .375 x 1.125 x .065
(Superseded to 06401139)

$2.49

$

In Stock, only 2 left!

0

19

Gravely 05974500

Bolt-Hex .38-16 x 1.00 Grade 8
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 00597000

Washer-Cupped-Serrated .375
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

21

Gravely 06611200

Key, Square .25 x .25 x 1.00 RC 40-50

$2.99

$

In Stock, Qty 16

0

22

Gravely 09238200

Slinger-Dust

$17.99

$

In Stock, only 4 left!

0

23

Gravely 59201000

Assembly, Maintenance Free Spindle
(Superseded to 59114000)

$262.99

$

Usually ships in 4-12 days

0

24

Gravely 04916400

Blade- Mower

Note: (988100, 114)

$27.99

$

In Stock, Qty 20+

0

24

Gravely 04917900

Blade- Mulching
(Superseded to 00273100)

Note: (988100, 114)

$26.99

$

In Stock, Qty 20+

0

24

Gravely 04919100

Blade- Mower

Note: (98816.25) (110, 118)

$26.99

$

In Stock, Qty 20+

0

24

Gravely 04936000

Blade, 32"

Note: (98816.25) (313)

$28.99

$

Usually ships in 4-12 days

0

24

Gravely 04920600

Blade- Mulching
(Superseded to 05244100)

Note: (98816.12) (110, 118)

$27.99

$

In Stock, Qty 20+

0

25

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06308800

Washer-Locking .38 x .094 Regular
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 09242500

Pulley
(Superseded to 07331067)

$119.99

$

In Stock, only 1 left!

0

28

Gravely 06435200

Washer, Flat .64 x 1.81 x .250
(Superseded to 06400829)

$3.99

$

In Stock, only 3 left!

0

29

Gravely 06445700

Washer-Bellville .63 x 1.625 x .14

$4.99

$

In Stock, Qty 14

0

30

Gravely 05978900

Bolt-Hex .62-18 x 1.75 Grade 8
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

31

Gravely 05960100

Bolt-Hex .50-13 x 3.75 Grade 5
(Superseded to 05901703)

Note: (988313)

$5.99

$

Usually ships in 4-12 days

0
