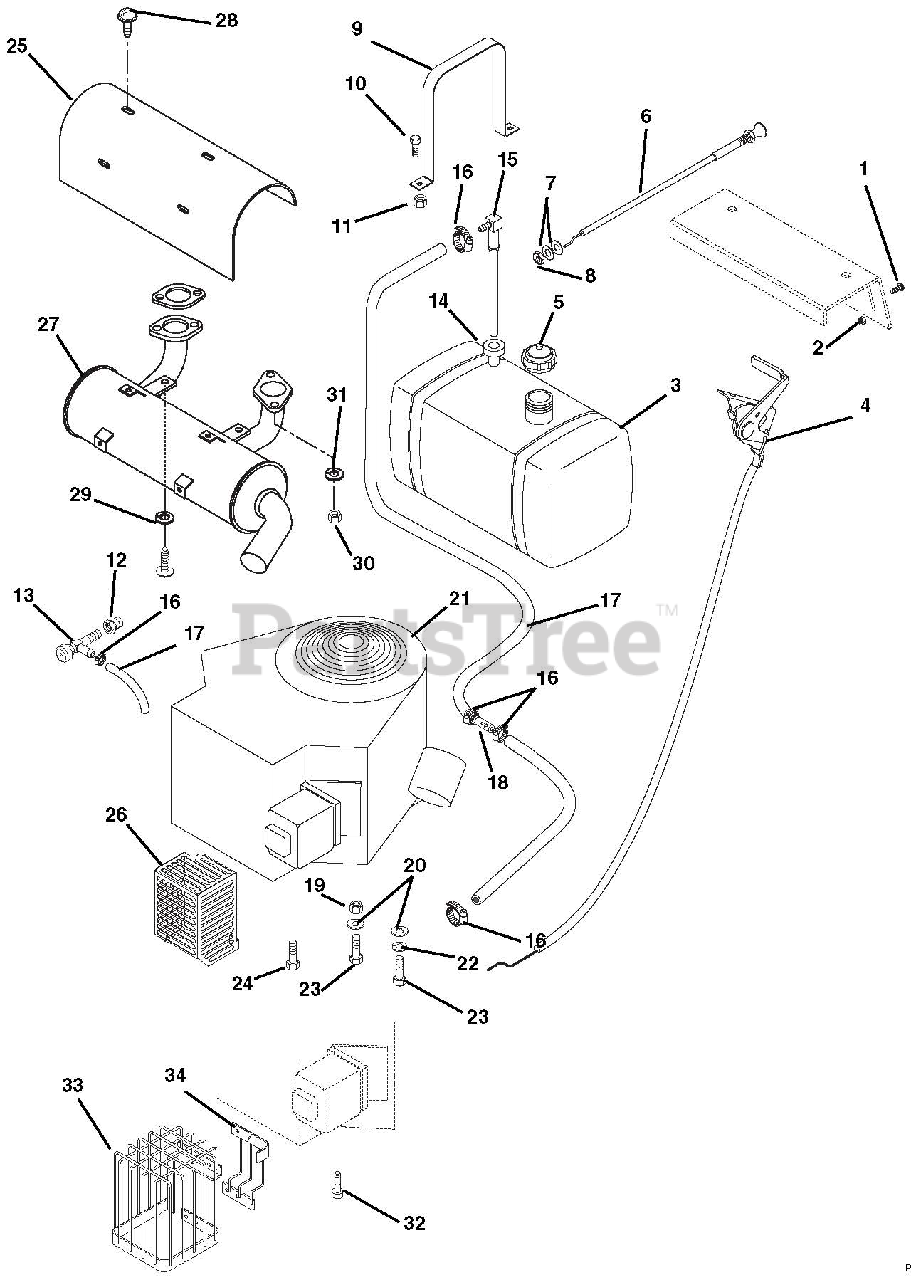

988310 - Gravely Pro 300 Walk-Behind Mower Power Unit, 14hp Kawasaki, Hydro Drive (SN: 010100 & Above) Engine, Fuel And Exhaust System Parts Diagram

Pro 300 Walk-Behind Mower Power Unit, 14hp Kawasaki, Hydro Drive

Engine, Fuel And Exhaust System Parts Diagram

  • Title

1

Gravely 06116700

Screw-Machine 10-32 x .50
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 06536000

Nut-Locking-Nylon 10-24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 09112200

Fuel Tank

$75.99

$

Usually ships in 4-12 days

0

4

Gravely 06943700

Cable, Throttle Control

Note: (988093)

$59.99

$

Usually ships in 4-12 days

0

4

Gravely 06925800

Cable, Throttle Control
(Superseded to 06943700)

Note: (988307)

$59.99

$

Usually ships in 4-12 days

0

4

Gravely 06943600

Cable, Throttle Control

Note: (988310)

$52.99

$

Usually ships in 4-12 days

0

5

Gravely 048856

Cap-Fuel Tank
(Superseded to 07533400)

Note: Gravely Part Number

$22.99

$

In Stock, only 1 left!

0

6

Gravely 06924800

Control, Choke

Note: (988093, 307)

$39.99

$

Usually ships in 4-12 days

0

6

Gravely 06936100

Cable, Choke

Note: (988310)

$

$

Not available

7

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06534700

Nut-Jam .38-24
(Superseded to 06500739)

$2.49

$

In Stock, only 1 left!

0

9

Gravely 04933800

Strap-Fuel Tank

$13.99

$

Usually ships in 4-12 days

0

10

Gravely 05947900

Bolt-Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 041831

Adapter, Oil Drain
(Superseded to 08757700)

Note: Gravely Part Number

$14.99

$

Usually ships in 4-12 days

0

13

Gravely 035329

Drain-cock, Oil
(Superseded to 00429000)

Note: Gravely Part Number

$39.99

$

In Stock, only 1 left!

0

14

Gravely 050246

Bushing
(Superseded to 07511400)

Note: Gravely Part Number

$3.49

$

In Stock, Qty 20+

0

15

Gravely 09112300

Fitting, Tank
(Superseded to 03875300)

$14.99

$

In Stock, only 4 left!

0

16

Gravely 032045

Hose Clamp
(Superseded to 06924300)

Note: Gravely Part Number

$6.99

$

Usually ships in 4-12 days

0

17

Gravely 021134

Gas Line-Bulk 1/4 inch ID
(Superseded to 03278100)

Note: Gravely Part Number

$1.49

$

In Stock, Qty 20+

0

18

Gravely 08811700

Filter, Fuel

$10.99

$

Usually ships in 4-12 days

0

19

Gravely 06529800

Nut-Locking-Nylon .31-18
(Superseded to 06500826)

Note: (988093, 307)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

Note: (988093, 307)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 08257400

Engine-14 HP Kawasaki

Note: (988310)

$

$

Not available

21

Gravely 08252100

Engine Briggs and Stratton 16HP Twin

Note: (988307)

$

$

Not available

21

Gravely 08256600

Engine-18 HP Robin

Note: (988093)

$

$

Not available

22

Gravely 06308600

Washer-Lock .313 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 05968200

Bolt-Hex M8 x 1.25 x 30 mm

Note: (988310)

$3.99

$

Usually ships in 4-12 days

0

23

Gravely 021914

Bolt-Hex M8 x 1.25 x 30
(Superseded to 05968200)

Note: (988307) Gravely Part Number

$3.99

$

Usually ships in 4-12 days

0

24

Gravely 05957400

Bolt -Hex .31-18 x 1.75
(Superseded to 05901804)

Note: (988093)

$2.99

$

In Stock, Qty 8

0

25

Gravely 08898000

Shield-Heat

Note: (988093)

$55.99

$

Usually ships in 4-12 days

0

26

Gravely 04903000

Weldment, Muffler Guard

Note: (988310)

$31.99

$

Usually ships in 4-12 days

0

27

Gravely 09208900

Muffler

Note: (988093)

$

$

Not available

28

Gravely 07413100

Screw-Tapping M6-1 x 25

$

$

Not available

29

Gravely 06109900

Screw-Machine 8MM-1.25 x 20

Note: (988093)

$

$

Not available

30

Gravely 06538600

Nut-Hex M8-1.25

$

$

Not available

31

Gravely 06308600

Washer-Lock .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 051666

Screw-Socket Head M8 x 1.25 x 20
(Superseded to 05931800)

Note: (988307) Gravely Part Number

$2.49

$

Usually ships in 4-12 days

0

33

Gravely 08898400

Weldment, Muffler Guard

Note: (988307)

$

$

Not available

34

Gravely 08898300

Weldment, Muffler Guard

Note: (988307)

$75.99

$

Usually ships in 4-12 days

0
