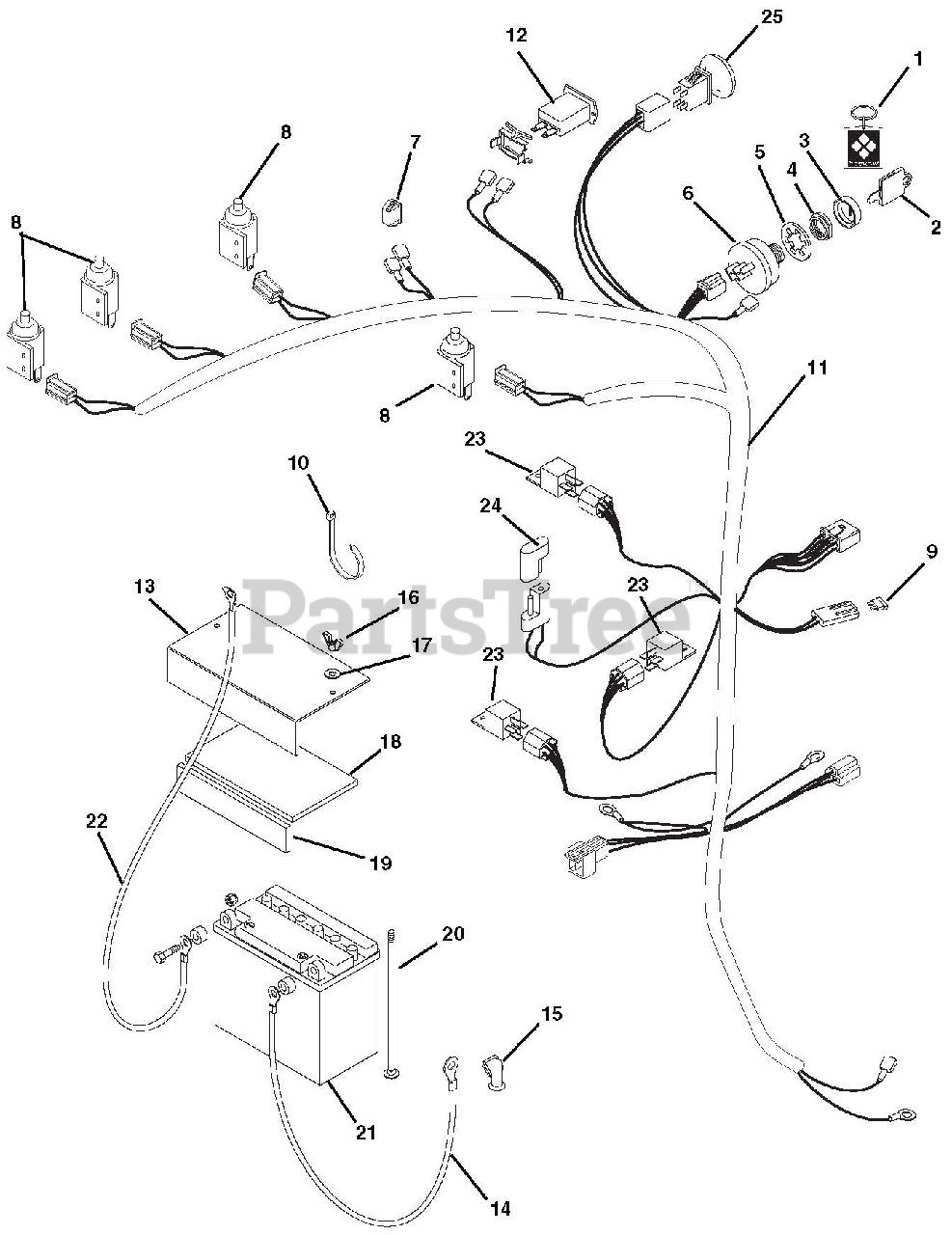

988310 - Gravely Pro 300 Walk-Behind Mower Power Unit, 14hp Kawasaki, Hydro Drive (SN: 010100 & Above) Electrical System Parts Diagram

Pro 300 Walk-Behind Mower Power Unit, 14hp Kawasaki, Hydro Drive

Electrical System Parts Diagram

  • Title

1

Gravely 045842

Key Chain
(Superseded to 03490000)

Note: Gravely Part Number

$

$

Not available

2

Gravely 045488

Ignition Switch Key
(Superseded to 02460700)

Note: Gravely Part Number

$7.99

$

In Stock, Qty 20+

0

3

Gravely 045490

Cap, Ignition Switch
(Superseded to 07517700)

Note: Gravely Part Number

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 045497

Nut, Panel .625-32
(Superseded to 06517300)

Note: Gravely Part Number

$7.99

$

Usually ships in 4-12 days

0

5

Gravely 06301900

Washer-Lock .625 Internal Tooth
(Superseded to 06306900)

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 03602300

Key Switch

$26.99

$

Usually ships in 4-12 days

0

7

Gravely 050673

Light, Indicator
(Superseded to 05128700)

Note: Gravely Part Number

$6.99

$

In Stock, only 1 left!

0

8

Gravely 09251900

Single-Pole N.O. with Cover

$22.99

$

Usually ships in 4-12 days

0

9

Gravely 00524600

Fuse-30 AMP

$

$

Not available

10

Gravely 041634

Tie Wrap-Black
(Superseded to 07519900)

Note: Gravely Part Number

$3.49

$

Usually ships in 4-12 days

0

11

Gravely 04905700

Wire Harness, Pro-300

$

$

Not available

12

Gravely 038256

Hour Meter
(Superseded to 09497400)

Note: Gravely Part Number

$23.99

$

In Stock, only 2 left!

0

13

Gravely 049294

Cover-Battery
(Superseded to 08835800)

Note: Gravely Part Number

$

$

Not available

14

Gravely 049101

Cable-Battery
(Superseded to 08987000)

Note: Gravely Part Number

$51.99

$

In Stock, only 1 left!

0

15

Gravely 00525800

Boot, Insulator

$7.99

$

Usually ships in 4-12 days

0

16

Gravely 06537500

Nut-Locking-Wing .25-20
(Superseded to 06500805)

$4.99

$

In Stock, Qty 19

0

17

Gravely 06437300

Washer-Flat-Steel .281 x .625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 050417

Pad, Battery
(Superseded to 08803400)

Note: Gravely Part Number

$6.99

$

Usually ships in 4-12 days

0

19

Gravely 050418

Pad, Battery
(Superseded to 08800600)

Note: Gravely Part Number

$

$

Not available

20

Gravely 06220400

Bolt-Round Head Square Neck .25-20 x 7.00 Grade 2
(Superseded to 06200229)

$4.49

$

In Stock, only 1 left!

0

21

Gravely 041358

Battery, 12 Volt
(Superseded to 78801800)

Note: Gravely Part Number

$

$

Not available

22

Gravely 050383

Cable, Negative Battery
(Superseded to 08840400)

Note: Gravely Part Number

$17.99

$

Usually ships in 4-12 days

0

23

Gravely 03042800

Relay
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

24

Gravely 03081700

Molded Diode Plug 1 AMP

$26.99

$

Usually ships in 4-12 days

0

25

Gravely 01545600

Switch, Clutch With Retainer

$25.99

$

In Stock, Qty 20+

0
