988309 - Gravely Pro 150 Walk-Behind Mower Power Unit, Hydro Drive, 14hp Kawasaki (SN: 010000 & Above) Steering Controls Parts Diagram

Pro 150 Walk-Behind Mower Power Unit, Hydro Drive, 14hp Kawasaki

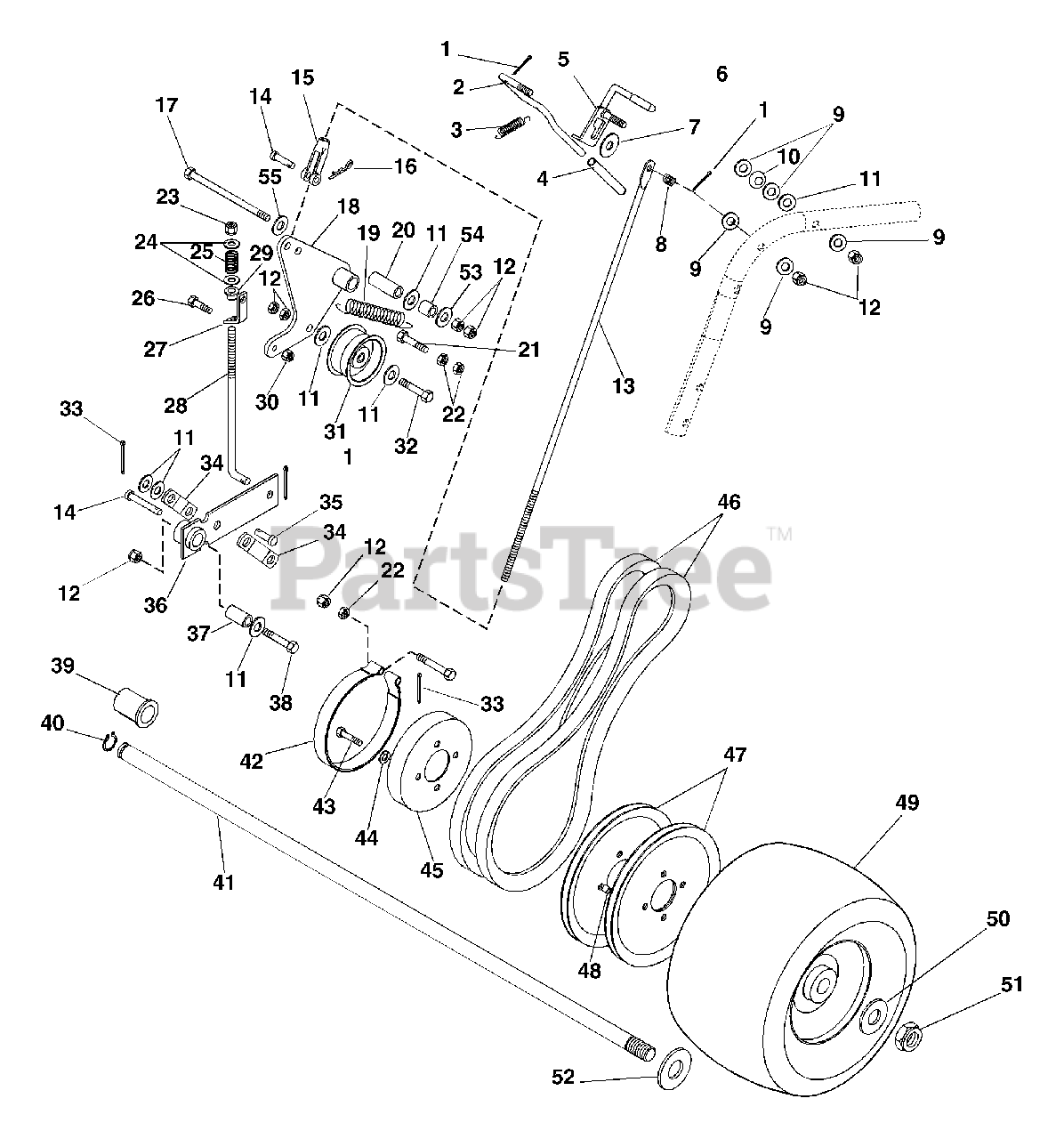

Steering Controls Parts Diagram

  • Title

1

Gravely 06706900

Pin-Cotter .09 x .75

$0.99

$

In Stock, Qty 10

0

2

Gravely 04905200

Lever-Hand Control

$79.99

$

In Stock, only 1 left!

0

3

Gravely 043446

Spring-Tension .041 x .500 x 1.75
(Superseded to 08339300)

$5.99

$

In Stock, only 1 left!

0

4

Gravely 043197

Grip-Hand Clutch Lever
(Superseded to 07528300)

$3.99

$

In Stock, only 2 left!

0

5

Gravely 042990

Weldment-Clutch-Brake Lock
(Superseded to 08820600)

$75.99

$

Usually ships in 4-12 days

0

6

Gravely 043192

Tip-Brake Lock Lever
(Superseded to 07503800)

$1.49

$

In Stock, only 4 left!

0

7

Gravely 06442400

Washer-Flat-Steel .4 x 1.375
(Superseded to 06401121)

$5.99

$

In Stock, only 1 left!

0

8

Gravely 043193

Spring-Compression .045 x .60 x .75
(Superseded to 08338800)

$6.99

$

In Stock, only 2 left!

0

9

Gravely 020775

Washer-Flat-Nylon .375 x .75 x .060
(Superseded to 06433600)

$0.99

$

In Stock, Qty 11

0

10

Gravely 029024

Spring Washer
(Superseded to 02902400)

$18.99

$

Usually ships in 4-12 days

0

11

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 08878200

Rod-Clutch Actuating

$103.99

$

Usually ships in 4-12 days

0

14

Gravely 06814900

Pin-Clevis .38 x 1.25

$3.99

$

In Stock, only 2 left!

0

15

Gravely 018380

Clevis .38-24 Adjustable
(Superseded to 08800400)

$11.99

$

Usually ships in 4-12 days

0

16

Gravely 06709800

Pin-Hair Internal .08 x .18 x 1.18
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 05965400

Bolt-Hex .38-16 x 4.00 Grade 5

$3.99

$

In Stock, only 1 left!

0

18

Gravely 08831200

Weldment-Wheel Clutch Arm

$

$

Not available

19

Gravely 034400

Spring-Tension .069 x .62 x 3.50
(Superseded to 08332000)

$11.99

$

In Stock, only 1 left!

0

20

Gravely 08831500

Bushing-Sleeve .385 x .610 x 1.80

$5.99

$

In Stock, only 2 left!

0

21

Gravely 05957900

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

22

Gravely 06529600

Nut-Hex .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 011779

Spring-Compression .125 x .78 x 1.00
(Superseded to 08327000)

$15.99

$

In Stock, only 2 left!

0

26

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 088726

Left-Bracket-Pro Brake Link
(Superseded to 08872600)

$

$

Not available

28

Gravely 049282

Rod-Brake
(Superseded to 08878300)

$

$

Not available

29

Gravely 045789

Bushing-Flange .320 x .620 x .312
(Superseded to 05517500)

$18.99

$

Usually ships in 4-12 days

0

30

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 048870

Sheave 3.25 x 1.25
(Superseded to 07318400)

$22.99

$

In Stock, only 1 left!

0

32

Gravely 05963700

Bolt-Hex .31-18 x 2.25
(Superseded to 05901806)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 06707300

Pin-Cotter .12 x .75

$0.99

$

In Stock, Qty 5

0

34

Gravely 049026

Link-Brake Arm
(Superseded to 08831951)

$15.99

$

In Stock, only 1 left!

0

35

Gravely 06814800

Pin-Clevis .38 x .75

$3.99

$

In Stock, only 4 left!

0

36

Gravely 049023

Weldment-Brake Arm
(Superseded to 08831600)

$74.99

$

Usually ships in 4-12 days

0

37

Gravely 049027

Bushing-Sleeve .391 x .622 x .950
(Superseded to 08833400)

$5.99

$

In Stock, only 1 left!

0

38

Gravely 05963300

Bolt-Hex .38-16 x 2.00 Grade 5
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

39

Gravely 049969

Bushing-Flange 1.010 x 1.38 x 1.4 x 1.65
(Superseded to 05517900)

$5.99

$

In Stock, only 2 left!

0

40

Gravely 017980

Ring-Retaining-External .906 x .078
(Superseded to 05707300)

$2.99

$

In Stock, Qty 9

0

41

Gravely 08875200

Axle Shaft-Pro-150

$124.99

$

Usually ships in 4-12 days

0

42

Gravely 08880600

Assembly-Brake Band-Pro

$58.99

$

In Stock, only 2 left!

0

43

Gravely 05952400

Bolt-Hex .31-18 x 1.50 Grade 5
(Superseded to 05901710)

$1.49

$

In Stock, Qty 13

0

44

Gravely 06308600

Washer-Lock .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

45

Gravely 049015

Drum-Brake
(Superseded to 08863900)

$45.99

$

In Stock, Qty 5

0

46

Gravely 07225800

Drive Belt-Matched Pair

$93.99

$

In Stock, only 4 left!

0

47

Gravely 049033

Pulley-V 9.00 x 3.75
(Superseded to 07319700)

$

$

Not available

48

Gravely 048868

Bushing-Sleeve .385 x .625 x .475
(Superseded to 08809500)

$

$

Not available

49

Gravely 07147300

Assembly-Wheel, 13 x 6.00-6
(Superseded to 07100239)

$159.99

$

Usually ships in 4-12 days

0

50

Gravely 06436300

Washer-Flat-Steel 1.010 x 1.505 x .062
(Superseded to 06401132)

$1.49

$

In Stock, Qty 20+

0

51

Gravely 06536400

Nut-Locking-Center .44 -14
(Superseded to 06500930)

$2.99

$

In Stock, Qty 12

0

52

Gravely 06426500

Washer-Thrust 1.55 x 1.002 x .093

$18.99

$

In Stock, only 2 left!

0

53

Gravely 06439100

Washer-Flat-Steel .38 x .87 x .179
(Superseded to 06401103)

$3.49

$

In Stock, only 2 left!

0

54

Gravely 043922

Bushing
(Superseded to 08553700)

$5.99

$

In Stock, only 1 left!

0

55

Gravely 06440800

Washer-Flat-Steel .44 x 1.625 x .315

$

$

Not available
