988309 - Gravely Pro 150 Walk-Behind Mower Power Unit, Hydro Drive, 14hp Kawasaki (SN: 010000 & Above) PTO Clutch Linkage Parts Diagram

Pro 150 Walk-Behind Mower Power Unit, Hydro Drive, 14hp Kawasaki

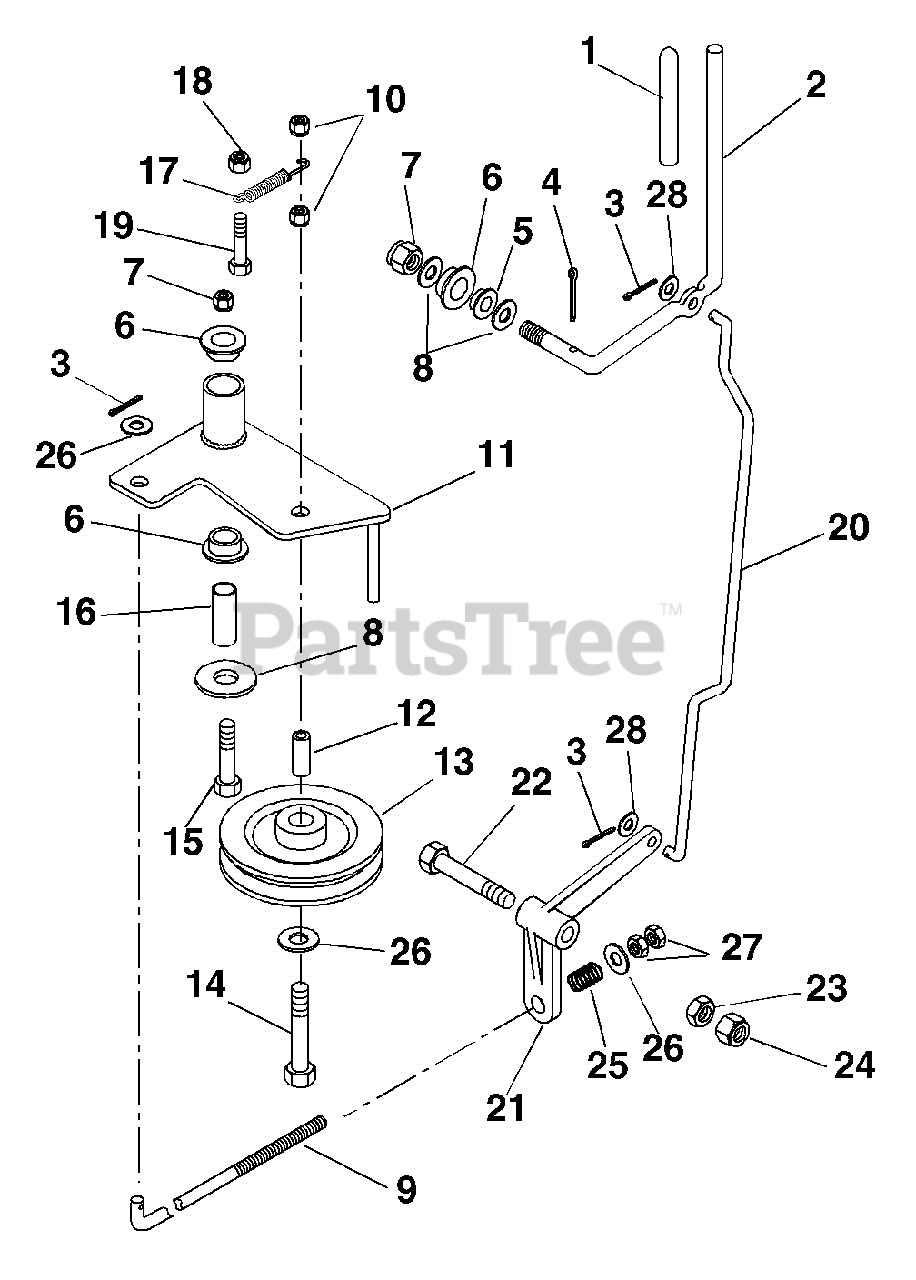

PTO Clutch Linkage Parts Diagram

  • Title

1

Gravely 043196

Grip PTO Lever
(Superseded to 07528200)

$9.99

$

Usually ships in 4-12 days

0

2

Gravely 08878400

Lever-PTO Actuating

$

$

Not available

3

Gravely 121222

Pin-Cotter .09X1.00
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

4

Gravely 06712800

Pin-Cotter .18 x 1.50

$1.99

$

In Stock, only 2 left!

0

5

Gravely 034738

Bushing-Flange-Nylon .515 x .750 x .745 x 1.00
(Superseded to 05521100)

$2.49

$

In Stock, only 3 left!

0

6

Gravely 010174

Bushing-Flange-Nylon .762 x 1.0 x .580 x 1.48
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

7

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

8

Gravely 06441000

Washer-Flat-Steel .50 x 1.25 x .083
(Superseded to 06401202)

$2.99

$

In Stock, Qty 6

0

9

Gravely 08873000

Rod, PTO Link-Pro 150

$38.99

$

Usually ships in 4-12 days

0

10

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 08872300

Declutch Arm- Pro PTO

$71.99

$

Usually ships in 4-12 days

0

12

Gravely 08874100

Spacer .391 x .75 x 1.25

$

$

Not available

13

Gravely 052062

Idler-Pulley Flat 3.25 x .625
(Superseded to 07320700)

$34.99

$

In Stock, only 1 left!

0

14

Gravely 05960900

Bolt-Hex .38-16 x 3.50 Grade 5
(Superseded to 05901818)

$3.99

$

In Stock, Qty 20+

0

15

Gravely 05960000

Bolt-Hex .50-13 x 3.25 Grade 5
(Superseded to 05901634)

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 08872400

Bushing, Declutch Arm Pivot

$

$

Not available

17

Gravely 08329500

Spring-Tension .095 x .85 x 4.38

$14.99

$

In Stock, only 2 left!

0

18

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 05947500

Bolt-Hex .31-18 x 1.25 Grade 5
(Superseded to 05901803)

$2.49

$

In Stock, Qty 10

0

20

Gravely 08873300

Rod, PTO Lever Link-Pro 150

$

$

Not available

21

Gravely 049271

Lever, PTO Clutch
(Superseded to 08834400)

$

$

Not available

22

Gravely 05966600

Bolt-Hex .50-13X2.50 Grade 5
(Superseded to 05901712)

$3.99

$

In Stock, only 3 left!

0

23

Gravely 06537300

Nut-Hex .50-13
(Superseded to 06500814)

$3.99

$

Usually ships in 4-12 days

0

24

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

25

Gravely 011779

Spring-Compression .125 x .78 x 1.00
(Superseded to 08327000)

$15.99

$

In Stock, only 2 left!

0

26

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 06529400

Nut-Hex .38-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0
