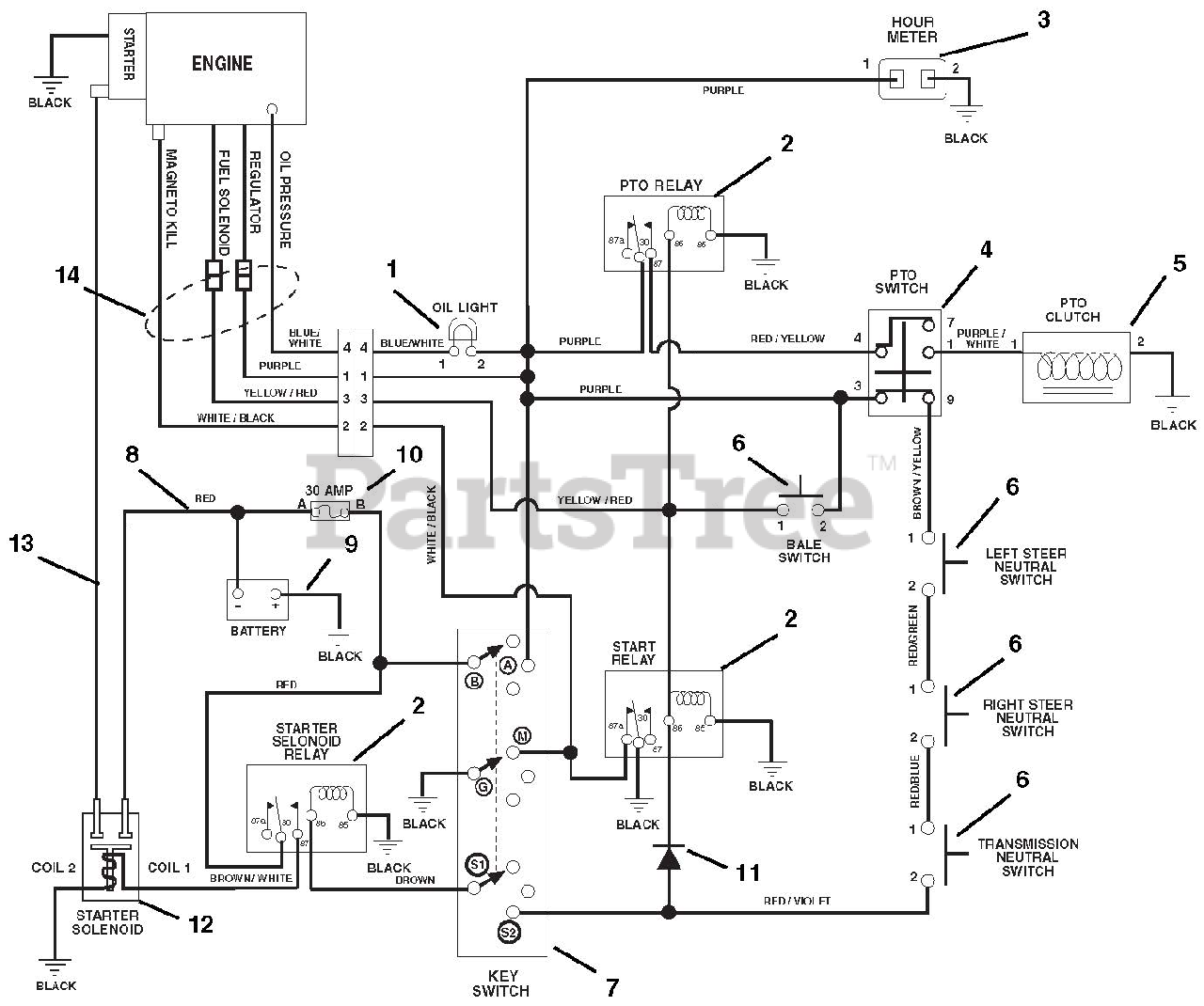

988307 - Gravely Pro 300 Walk-Behind Mower Power Unit, 16hp Briggs & Stratton, Hydro (SN: 010000 & Above) Wiring Diagram Parts Diagram

Pro 300 Walk-Behind Mower Power Unit, 16hp Briggs & Stratton, Hydro

Wiring Diagram Parts Diagram

  • Title

1

Gravely 050673

Light, Indicator
(Superseded to 05128700)

Note: Gravely Part Number

$6.99

$

In Stock, only 1 left!

0

2

Gravely 03042800

Relay
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

3

Gravely 038256

Hour Meter
(Superseded to 09497400)

Note: Gravely Part Number

$23.99

$

In Stock, only 2 left!

0

4

Gravely 01545600

Switch, Clutch w/ Retainer

$25.99

$

In Stock, Qty 20+

0

5

Gravely 09225400

Clutch, Electric

$362.99

$

Usually ships in 4-12 days

0

6

Gravely 09251900

Switch, Bale

$22.99

$

Usually ships in 4-12 days

0

7

Gravely 03602300

Key Switch

$26.99

$

In Stock, only 1 left!

0

8

Gravely 049101

Cable, Battery to Solenoid
(Superseded to 08987000)

Note: Gravely Part Number

$51.99

$

In Stock, only 1 left!

0

9

Gravely 050383

Cable, Negative Battery
(Superseded to 08840400)

Note: Gravely Part Number

$17.99

$

Usually ships in 4-12 days

0

10

Gravely 00524600

Fuse, 30 AMP

$

$

Not available

11

Gravely 03081700

Molded Diode Plug, 1 AMP

$26.99

$

In Stock, only 1 left!

0

12

Gravely 03679000

Solenoid
(Superseded to 59223400)

$60.99

$

In Stock, Qty 20+

0

13

Gravely 042696

Cable, Starter 6.75"
(Superseded to 00145900)

Note: Gravely Part Number

$13.99

$

In Stock, only 1 left!

0

14

Gravely 04908800

Adapter, Wire Harness

$

$

Not available
