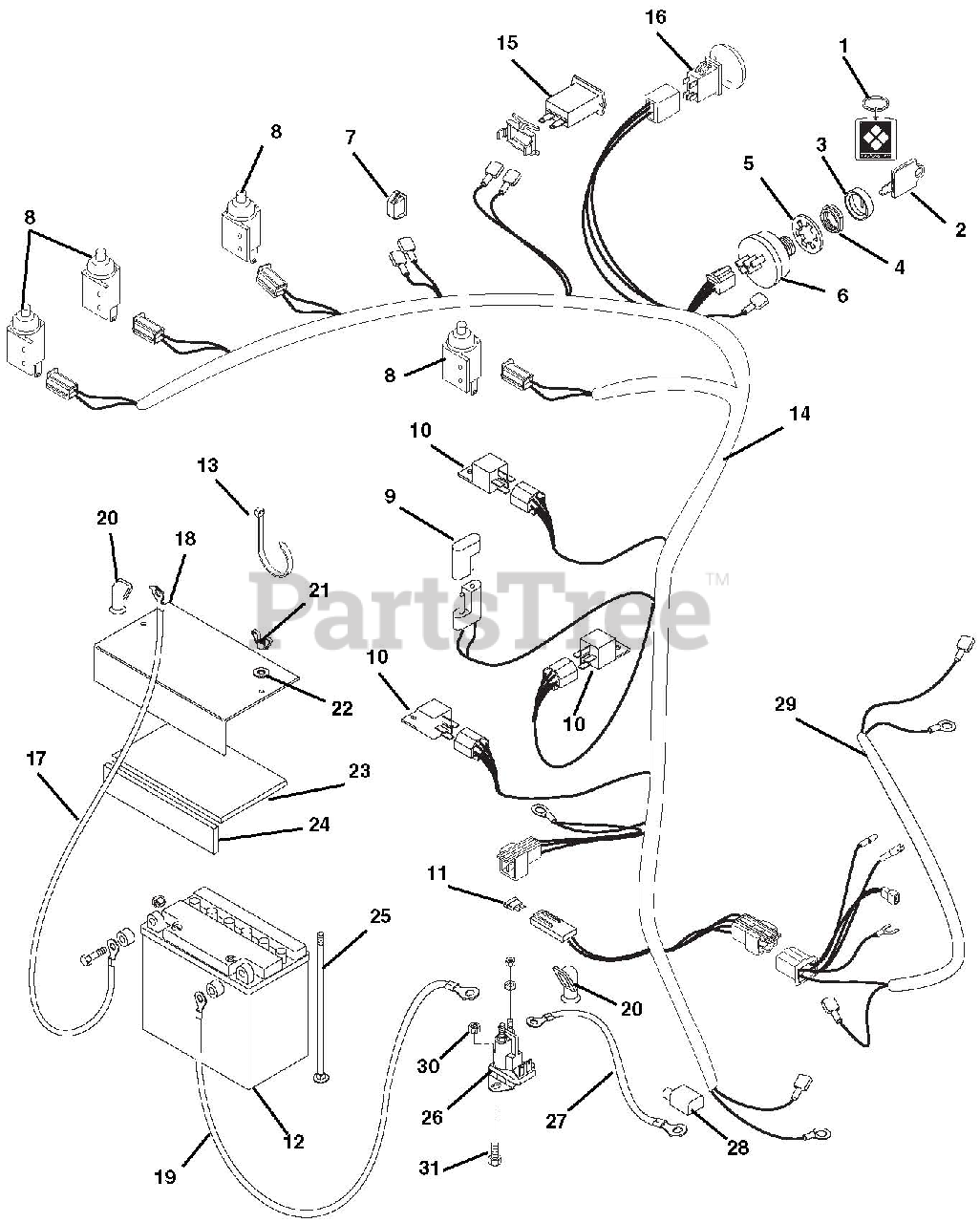

988307 - Gravely Pro 300 Walk-Behind Mower Power Unit, 16hp Briggs & Stratton, Hydro (SN: 010000 & Above) Electrical System Parts Diagram

Pro 300 Walk-Behind Mower Power Unit, 16hp Briggs & Stratton, Hydro

Electrical System Parts Diagram

  • Title

1

Gravely 045842

Key Chain
(Superseded to 03490000)

Note: Gravely Part Number

$

$

Not available

2

Gravely 045488

Ignition Switch Key
(Superseded to 02460700)

Note: Gravely Part Number

$7.99

$

In Stock, Qty 20+

0

3

Gravely 045490

Cap, Ignition Switch
(Superseded to 07517700)

Note: Gravely Part Number

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 045497

Nut, Panel .625-32
(Superseded to 06517300)

Note: Gravely Part Number

$7.99

$

Usually ships in 4-12 days

0

5

Gravely 06301900

Washer-Lock .625 Internal Tooth
(Superseded to 06306900)

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 03602300

Key Switch

$26.99

$

Usually ships in 4-12 days

0

7

Gravely 050673

Light, Indicator
(Superseded to 05128700)

Note: Gravely Part Number

$6.99

$

In Stock, only 1 left!

0

8

Gravely 09251900

Single-Pole N.O. with Cover

$22.99

$

Usually ships in 4-12 days

0

9

Gravely 03081700

Molded Diode Plug-Clear 1 AMP

$26.99

$

Usually ships in 4-12 days

0

10

Gravely 03042800

Relay
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

11

Gravely 00524600

Fuse-30 AMP

$

$

Not available

12

Gravely 041358

Battery, 12 Volt
(Superseded to 78801800)

Note: Gravely Part Number

$

$

Not available

13

Gravely 041634

Tie Wrap-Black
(Superseded to 07519900)

Note: Gravely Part Number

$3.49

$

Usually ships in 4-12 days

0

14

Gravely 04905500

Wire Harness, Pro-300

$

$

Not available

15

Gravely 038256

Hour Meter
(Superseded to 09497400)

Note: Gravely Part Number

$23.99

$

In Stock, only 2 left!

0

16

Gravely 01545600

Switch, Clutch With Retainer

$25.99

$

In Stock, Qty 20+

0

17

Gravely 050383

Cable, Negative Battery
(Superseded to 08840400)

Note: Gravely Part Number

$17.99

$

Usually ships in 4-12 days

0

18

Gravely 049294

Cover-Battery
(Superseded to 08835800)

Note: Gravely Part Number

$

$

Not available

19

Gravely 049101

Cable-Battery
(Superseded to 08987000)

Note: Gravely Part Number

$51.99

$

In Stock, only 1 left!

0

20

Gravely 033847

Boot, Insulator
(Superseded to 03384700)

Note: Gravely Part Number

$

$

Not available

21

Gravely 06537500

Nut-Locking-Wing .25-20
(Superseded to 06500805)

$4.99

$

In Stock, Qty 19

0

22

Gravely 06437300

Washer-Flat-Steel .281 x .625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 050417

Pad, Battery
(Superseded to 08803400)

Note: Gravely Part Number

$6.99

$

Usually ships in 4-12 days

0

24

Gravely 050418

Pad, Battery
(Superseded to 08800600)

Note: Gravely Part Number

$

$

Not available

25

Gravely 06226400

Bolt-Round Head Square Neck .25-20 x 7.00 Grade 2
(Superseded to 06200424)

$4.99

$

In Stock, Qty 20+

0

26

Gravely 03551000

Solenoid

$34.99

$

In Stock, Qty 14

0

27

Gravely 042696

Cable, Starter 6.75"
(Superseded to 00145900)

Note: Gravely Part Number

$13.99

$

In Stock, only 1 left!

0

28

Gravely 00525800

Boot, Starter Terminal Red

$7.99

$

Usually ships in 4-12 days

0

29

Gravely 04908800

Adapter, Wire Harness

$

$

Not available

30

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 05947900

Bolt-Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0
