988307 - Gravely Pro 300 Walk-Behind Mower Power Unit, 16hp Briggs & Stratton, Hydro (SN: 000101 - 009999) Steering Controls Parts Diagram

Pro 300 Walk-Behind Mower Power Unit, 16hp Briggs & Stratton, Hydro

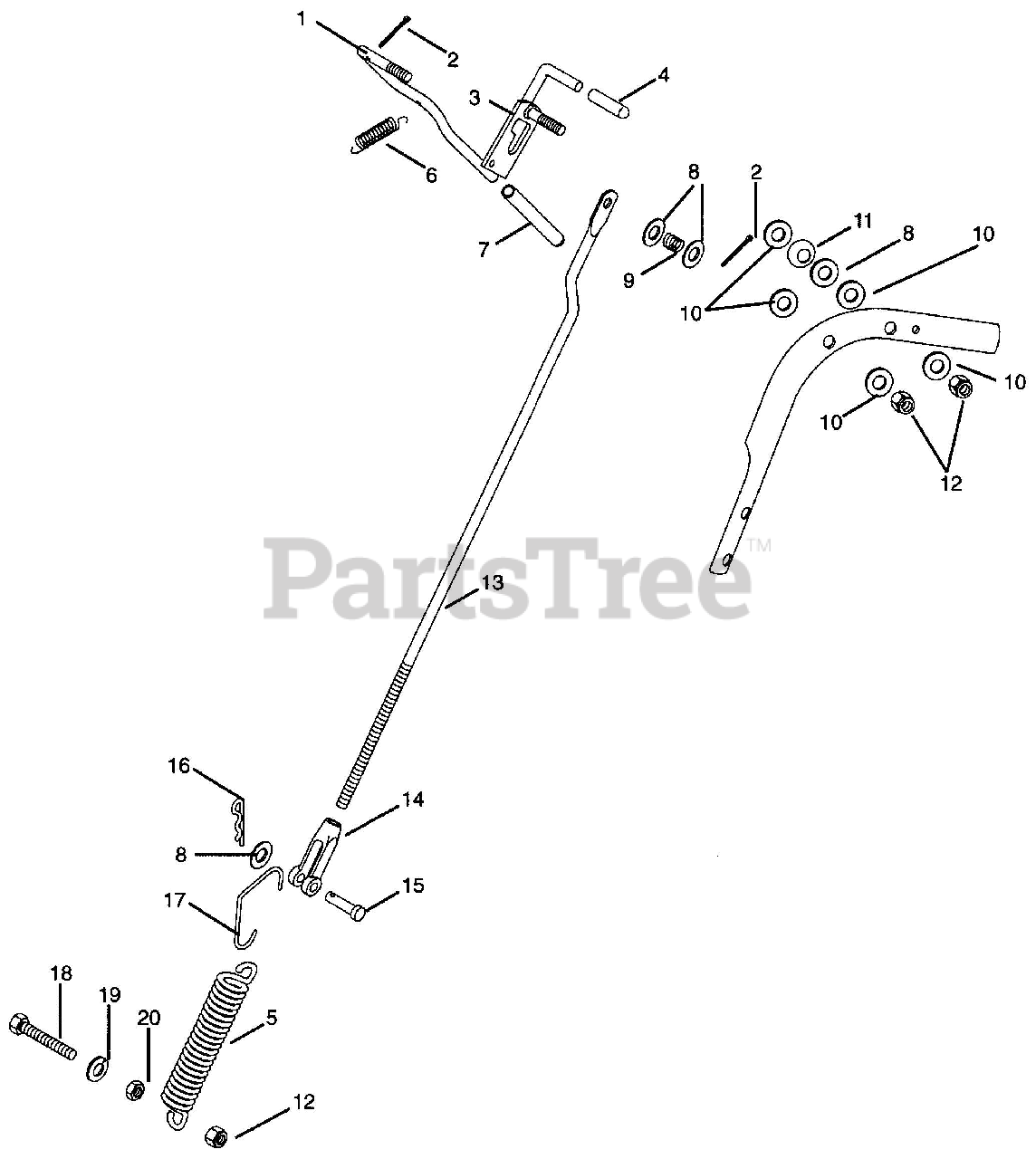

Steering Controls Parts Diagram

  • Title
1

Gravely 052624

Lever - Hand Control
(Superseded to 04905200)

Note: Gravely Part Number

$79.99

$

In Stock, only 1 left!

0

2

Gravely 06906900

Pin-Cotter .09 x .75

$

$

Not available

3

Gravely 052680

Weldment - Neutral Locking Lever
(Superseded to 08848200)

Note: Gravely Part Number

$

$

Not available

4

Gravely 043192

Tip-Brake Lock Lever
(Superseded to 07503800)

Note: Gravely Part Number

$1.49

$

In Stock, only 4 left!

0

5

Gravely 052617

Spring - Tens .105 x 1.00 x 4.5
(Superseded to 08346800)

Note: Gravely Part Number

$14.99

$

In Stock, only 2 left!

0

6

Gravely 043446

Spring - tens .041 x .500x 1.750
(Superseded to 08339300)

Note: Gravely Part Number

$5.99

$

In Stock, only 1 left!

0

7

Gravely 043197

Grip-Hand Clutch Lever
(Superseded to 07528300)

Note: Gravely Part Number

$3.99

$

In Stock, only 2 left!

0

8

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 043193

Spring - Compression .045 x .600 x .750
(Superseded to 08338800)

Note: Gravely Part Number

$6.99

$

In Stock, only 2 left!

0

10

Gravely 020775

Washer-Flat-Nylon .375 x .75 x .06
(Superseded to 06433600)

Note: Gravely Part Number

$0.99

$

In Stock, Qty 11

0

11

Gravely 041623

Washer-Spring .375
(Superseded to 06433000)

Note: Gravely Part Number

$

$

Not available

12

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 051236

Rod - Pump Control
(Superseded to 08878900)

Note: Gravely Part Number

$297.99

$

Usually ships in 4-12 days

0

14

Gravely 018380

Clevis .38-24 Adjustable
(Superseded to 08800400)

Note: Gravely Part Number

$11.99

$

Usually ships in 4-12 days

0

15

Gravely 06814900

Pin-Clevis .370 x 1.50

$3.99

$

In Stock, only 2 left!

0

16

Gravely 036185

Pin-Hair Internal .08 x .18 x 1.18
(Superseded to 06700222)

Note: Gravely Part Number

$0.99

$

In Stock, Qty 20+

0

17

Gravely 051670

Hook - Spring
(Superseded to 08879000)

Note: Gravely Part Number

$

$

Not available

18

Gravely 05958400

Bolt-Hex .38-16 x 2.50
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

19

Gravely 06308800

Washer-Lock .375 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06529400

Nut-Hex .375-16 Grade 5
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0
