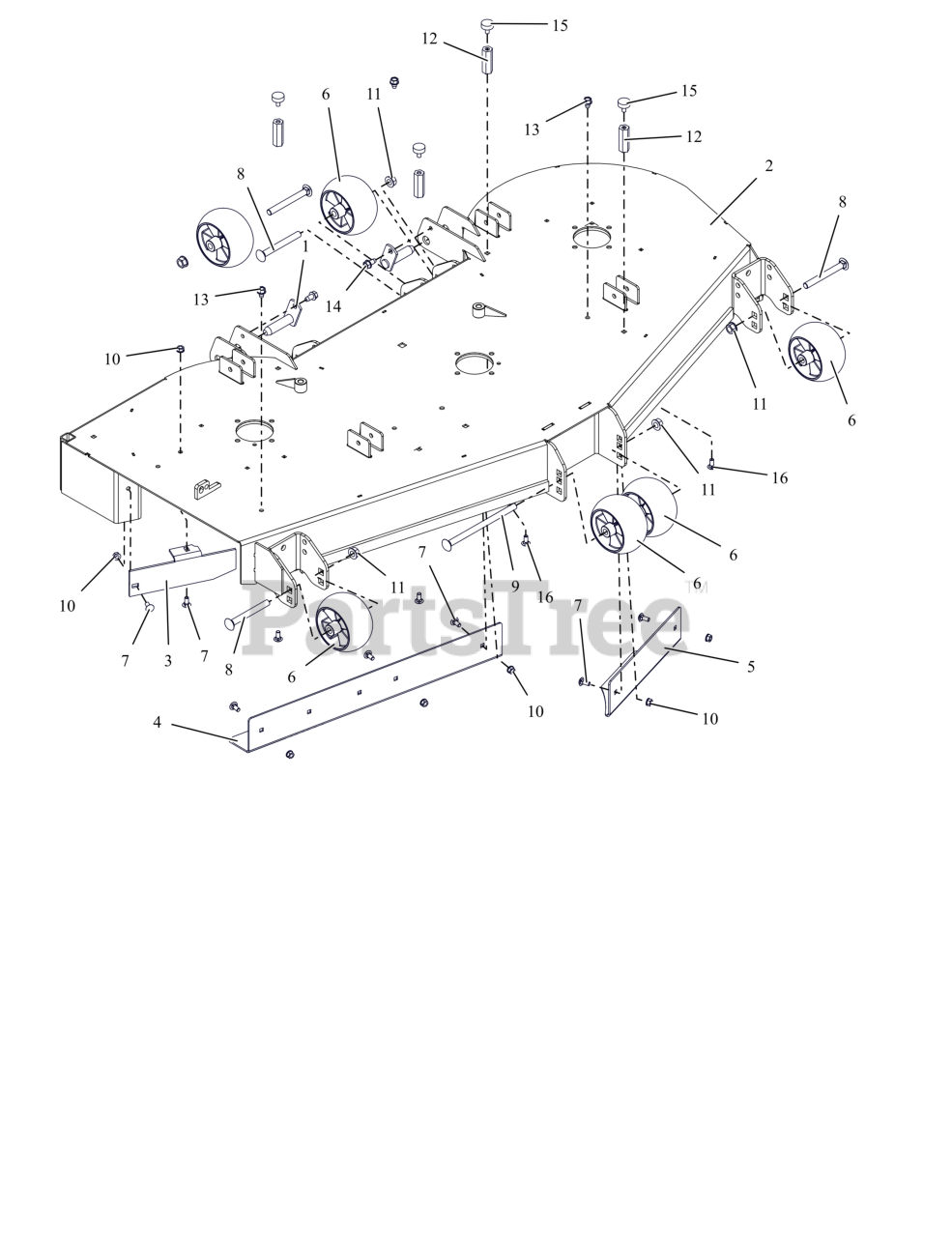

988187 - Gravely Pro-Walk 60" Walk-Behind Mower, Kawasaki FS (SN: 000600 & Above) Deck, Baffles, and Anti-Scalp Wheels - 60" Parts Diagram

Pro-Walk 60" Walk-Behind Mower, Kawasaki FS

Deck, Baffles, and Anti-Scalp Wheels - 60" Parts Diagram

  • Title

1

Gravely 04874767

WLDMT, MOWER MTG. PIN (BLACK)

$71.99

$

Usually ships in 4-12 days

0

2

Gravely 58813500

KIT, 60" PRO-WALK DECK W/ DECALS (RED)

$1086.99

$

Usually ships in 4-12 days

0

3

Gravely 00374153

60" DISCHARGE BAFFLE - RED

$28.99

$

In Stock, only 1 left!

0

4

Gravely 05251953

BAFFLE, 60" RH VACUUM (RED)

$60.99

$

Usually ships in 4-12 days

0

5

Gravely 05252053

BAFFLE, 60" LH VACUUM (RED)

$29.99

$

In Stock, only 1 left!

0

6

Gravely 05268800

WHEEL, ANTI SCALP - 5X3 CTR W/RIBS

$11.99

$

In Stock, Qty 20+

0

7

Gravely 06200232

BLT,RHSN .31-18X.75 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

8

Gravely 06200505

BLT,RHNS .50-13X4.50 G5 ZCC NS

$5.99

$

Usually ships in 4-12 days

0

9

Gravely 06200506

BLT,RHSN .50-13X8.00 G5 ZCC NS

$6.99

$

Usually ships in 4-12 days

0

10

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

12

Gravely 07001630

NUT, .31-18X2.25 LG COUPLING

$32.99

$

Usually ships in 4-12 days

0

13

Gravely 07400126

SCR,TAP .375-16X.50 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

14

Gravely 07400129

SCR,TAP .375-16X.75 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

15

Gravely 07533600

BUMPER, RUBBER

$11.99

$

In Stock, only 1 left!

0

16

Gravely 06200425

BTL,RHSN .313-18 X 0.75 G5 ZCC LT

$3.99

$

In Stock, only 3 left!

0
