988185 - Gravely Pro-Walk 48" Walk-Behind Mower, Kawasaki FS (SN: 000600 & Above) Electrical - 48", 52", and 60" Parts Diagram

Pro-Walk 48" Walk-Behind Mower, Kawasaki FS

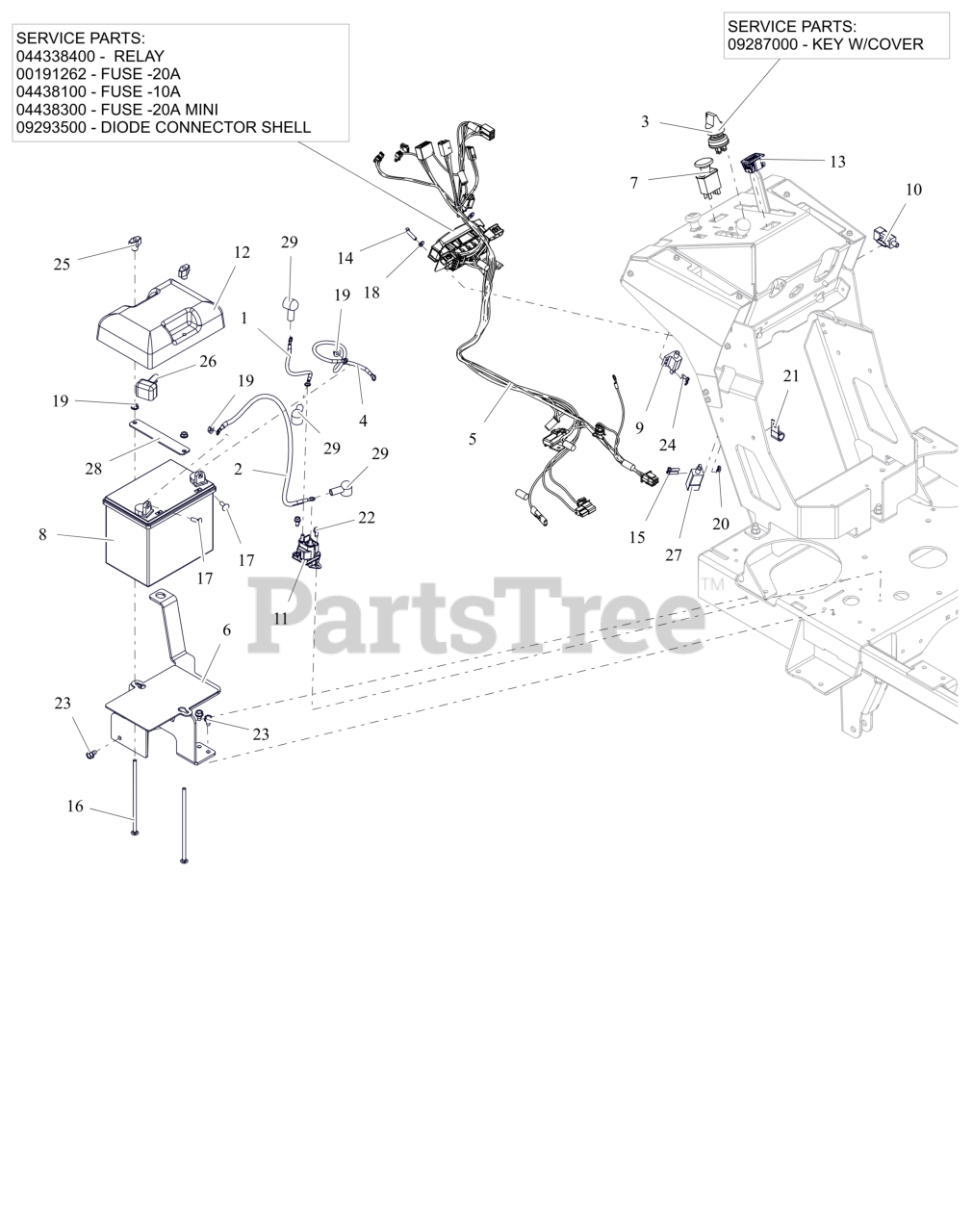

Electrical - 48", 52", and 60" Parts Diagram

  • Title

1

Gravely 03286000

CABLE-POSITIVE BATTERY 9.00"

$7.99

$

Usually ships in 4-12 days

0

2

Gravely 03287200

CABLE - START 22.00"

$17.99

$

In Stock, only 2 left!

0

3

Gravely 04331600

SWITCH, IGNITION

$45.99

$

In Stock, Qty 20+

0

3

Gravely 09287000

KEY, W/ SHIELD

Note: Service Part Component

$14.99

$

In Stock, Qty 20+

0

4

Gravely 08840400

CBL,NEGATIVE BATTERY 20.00

$17.99

$

Usually ships in 4-12 days

0

5

Gravely 09161800

HARNESS, 36-60 PRO-WALK

$

$

Not available

5

Gravely 04438400

RELAY,MICRO5 TERML W/RESISTOR

Note: Service Part Component, Part number on image is incorrect

$19.99

$

In Stock, only 1 left!

0

5

Gravely 00191262

FUSE, 20 AMP BLADE S/O

Note: Service Part Component

$14.99

$

In Stock, only 1 left!

0

5

Gravely 04438100

FUSE,10 AMP MINI-ATC

Note: Service Part Component

$4.99

$

Usually ships in 4-12 days

0

5

Gravely 04438300

FUSE,20 AMP MINI ATC

Note: Service Part Component

$

$

Not available

5

Gravely 09293500

DIODE, CONNECTOR SHELL
(Superseded to 09293501)

Note: Service Part Component

$11.99

$

In Stock, only 3 left!

0

6

Gravely 09358753

WLDMT, BATTERY TRAY 48"-60"

$129.99

$

Usually ships in 4-12 days

0

7

Gravely 01545600

SWITCH, CLUTCH

$25.99

$

In Stock, Qty 20+

0

8

Gravely 01554800

BATTERY, 300 CCA 10U1L

$

$

Not available

9

Gravely 03657100

SWITCH- SINGLE POLE N.O.

$9.49

$

In Stock, only 2 left!

0

10

Gravely 03834300

SWITCH, SNAP IN - N.O./N.O.

$14.99

$

In Stock, only 1 left!

0

11

Gravely 04781700

SOLENOID, STARTER (SEALED)

$44.99

$

In Stock, only 2 left!

0

12

Gravely 04912900

COVER, BATTERY

$11.99

$

Usually ships in 4-12 days

0

13

Gravely 09497400

HOUR METER

$23.99

$

In Stock, only 2 left!

0

14

Gravely 05901609

BLT, HEX M6-1.0 X 25 G8.8 ZCC

$1.49

$

Usually ships in 4-12 days

0

15

Gravely 05901837

BLT, HWH #10-24X.75 ZCC

$2.49

$

In Stock, Qty 15

0

16

Gravely 06200229

BLT,RHSN .25-20X7.00 G2 ZCC

$4.49

$

In Stock, only 1 left!

0

17

Gravely 06200307

BLT, RHSN .25-20X.750 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06401001

WSHR,FLT .281X.625X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06500824

NUT-SPNLK-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06501001

NUT, HEX .250-20 GR5 ZCC

$2.49

$

Usually ships in 4-12 days

0

21

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

22

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

23

Gravely 07400124

SCR,TAP .312-18X.50 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

24

Gravely 07400130

SCR,TAP #10-24X.50 HWH TR ZCC

$2.49

$

In Stock, Qty 5

0

25

Gravely 07500104

KNOB, WING - .25-20 UNC

$3.99

$

Usually ships in 4-12 days

0

26

Gravely 07505700

INSULATOR

$9.49

$

Usually ships in 4-12 days

0

27

Gravely 08828100

SWITCH,INTERLOCK

$20.99

$

In Stock, only 1 left!

0

28

Gravely 09130751

STRAP, BATTERY

$7.49

$

Usually ships in 4-12 days

0

29

Gravely 07533200

BOOT, EYELET TERMINAL

$3.49

$

In Stock, only 3 left!

0
