988185 - Gravely Pro-Walk 48" Walk-Behind Mower, Kawasaki FS (SN: 000101 - 000399) Tower Parts Diagram

Pro-Walk 48" Walk-Behind Mower, Kawasaki FS

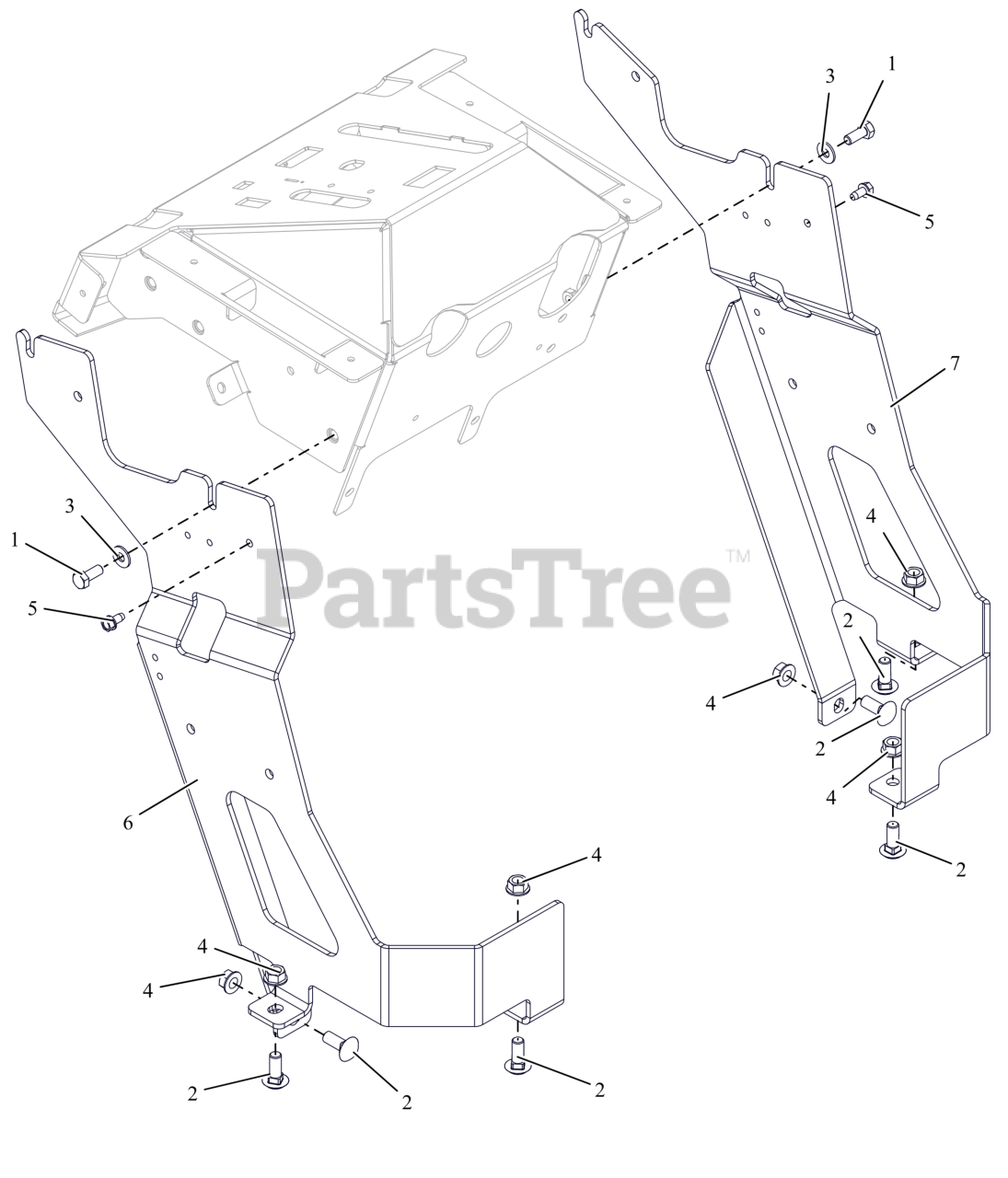

Tower Parts Diagram

  • Title
1

Gravely 05901704

BLT,HEX .31-18X.75 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

2

Gravely 06200313

BLT, RHSN .38-16X1.00 G5 ZCC

$2.49

$

In Stock, Qty 10

0

3

Gravely 06401124

WSHR, FLT .312X.734X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

4

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

5

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

6

Gravely 09160251

SIDE, RH TOWER (BLACK)

$

$

Not available

7

Gravely 09160451

SIDE, LH TOWER (BLACK)

$

$

Not available
