988185 - Gravely Pro-Walk 48" Walk-Behind Mower, Kawasaki FS (SN: 000101 - 000399) Discharge Chute and Belt Guards - 48" Parts Diagram

Pro-Walk 48" Walk-Behind Mower, Kawasaki FS

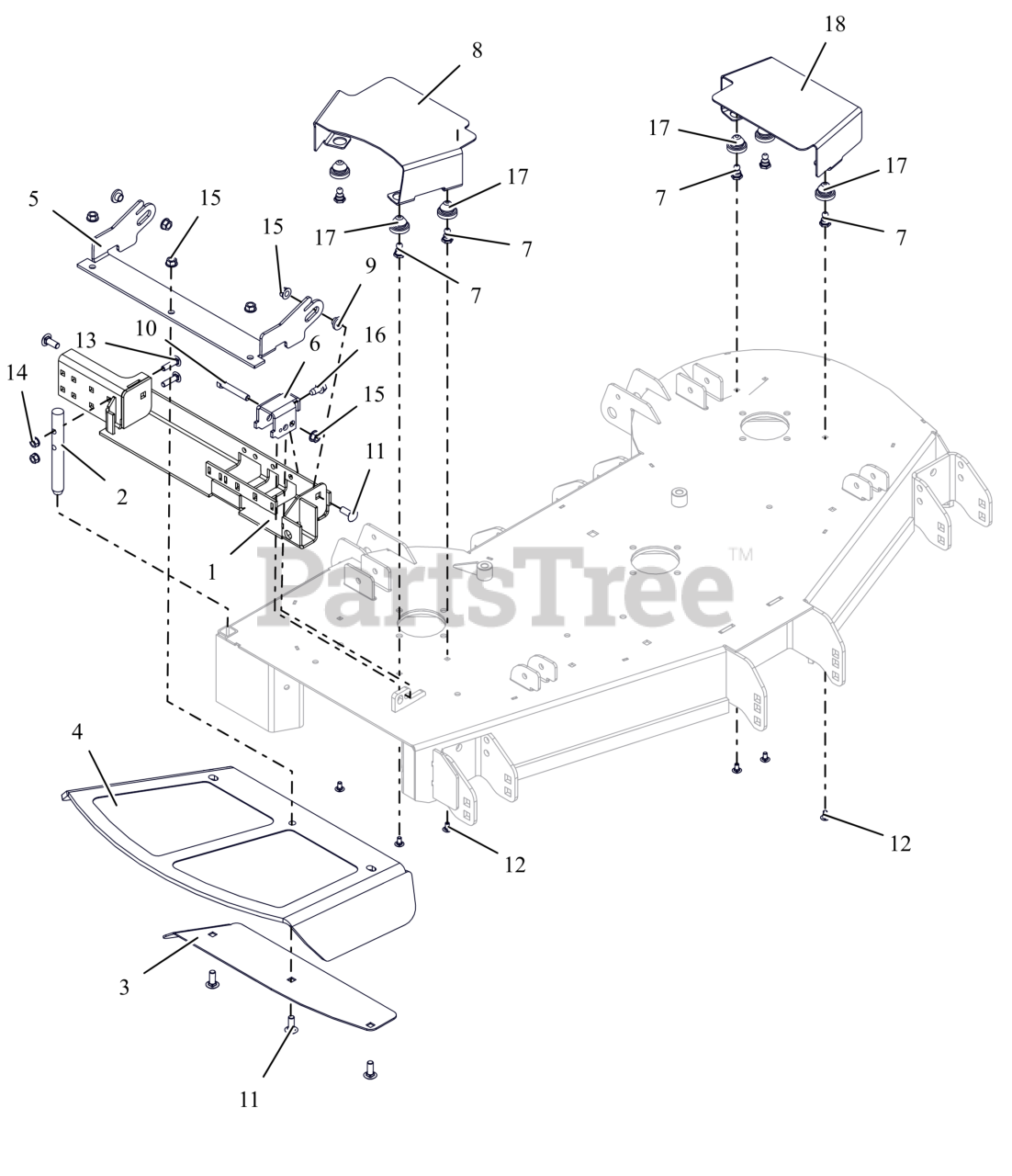

Discharge Chute and Belt Guards - 48" Parts Diagram

  • Title

1

Gravely 04984053

WLDMT, GRASS CATCHER

$136.99

$

Usually ships in 4-12 days

0

2

Gravely 03830600

PIN, DISCHARGE CHUTE X-DRILLED

$30.99

$

Usually ships in 4-12 days

0

3

Gravely 04873751

48-60 DISCH CHUTE CLMP PLT-BLK

$31.99

$

Usually ships in 4-12 days

0

4

Gravely 04881200

CHUTE,48-60" FRMD RUBBER DISCH

$75.99

$

In Stock, Qty 9

0

5

Gravely 04984353

BRKT, 48-60" CHUTE MTG

$51.99

$

Usually ships in 4-12 days

0

6

Gravely 04985153

BRKT, DISCH. CHUTE MTG

$

$

Not available

7

Gravely 05275900

STUD, BALL FEMALE .250-20 THREAD

$9.49

$

Usually ships in 4-12 days

0

8

Gravely 05276153

GUARD, RH DECK BELT (RED)

$29.99

$

In Stock, only 1 left!

0

9

Gravely 05500435

BSHG-FLG .385X.500X.875X.406

$2.49

$

In Stock, Qty 20+

0

10

Gravely 05901640

BLT,HEX .38-16X2.25 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

11

Gravely 06200235

BLT,RHSSN .38-16X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06200305

BLT, RHSSN.25-20X.500 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06200310

BTL,RHSSN .313-18 X 1.25 G5 ZCC

$1.49

$

In Stock, Qty 5

0

14

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

16

Gravely 07400129

SCR,TAP .375-16X.75 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

17

Gravely 07500429

COUPLING, RUBBER PUSH-IN

$2.49

$

In Stock, Qty 20+

0

18

Gravely 09181553

GUARD, LH DECK BELT (RED)

$51.99

$

Usually ships in 4-12 days

0
