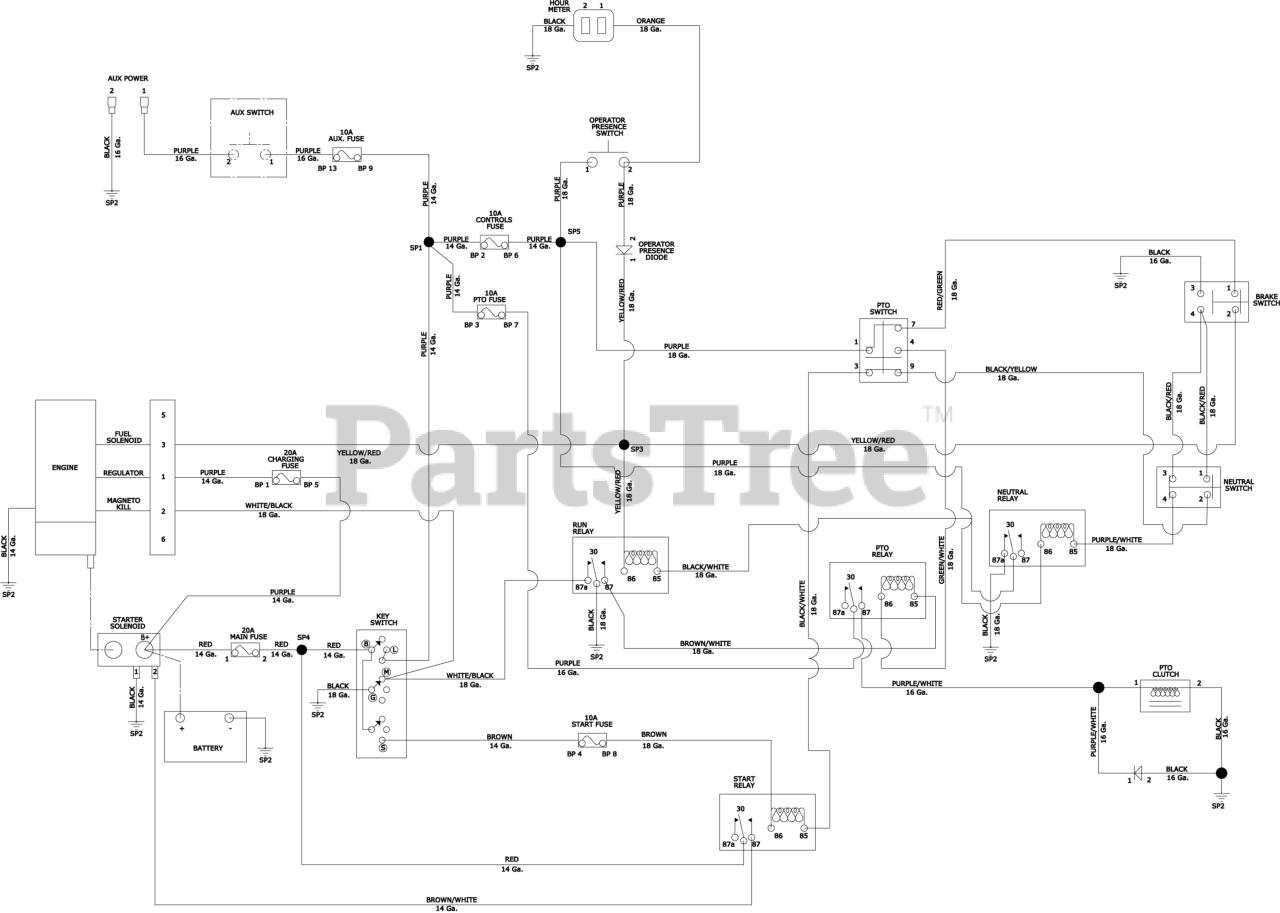

988184 - Gravely Pro-Walk 36" Walk-Behind Mower, Kawasaki FS (SN: 000600 & Above) Wiring Diagram - 09161800 Parts Diagram

Pro-Walk 36" Walk-Behind Mower, Kawasaki FS

Wiring Diagram - 09161800 Parts Diagram

  • Title
