988184 - Gravely Pro-Walk 36" Walk-Behind Mower, Kawasaki FS (SN: 000600 & Above) Frame - 36" Parts Diagram

Pro-Walk 36" Walk-Behind Mower, Kawasaki FS

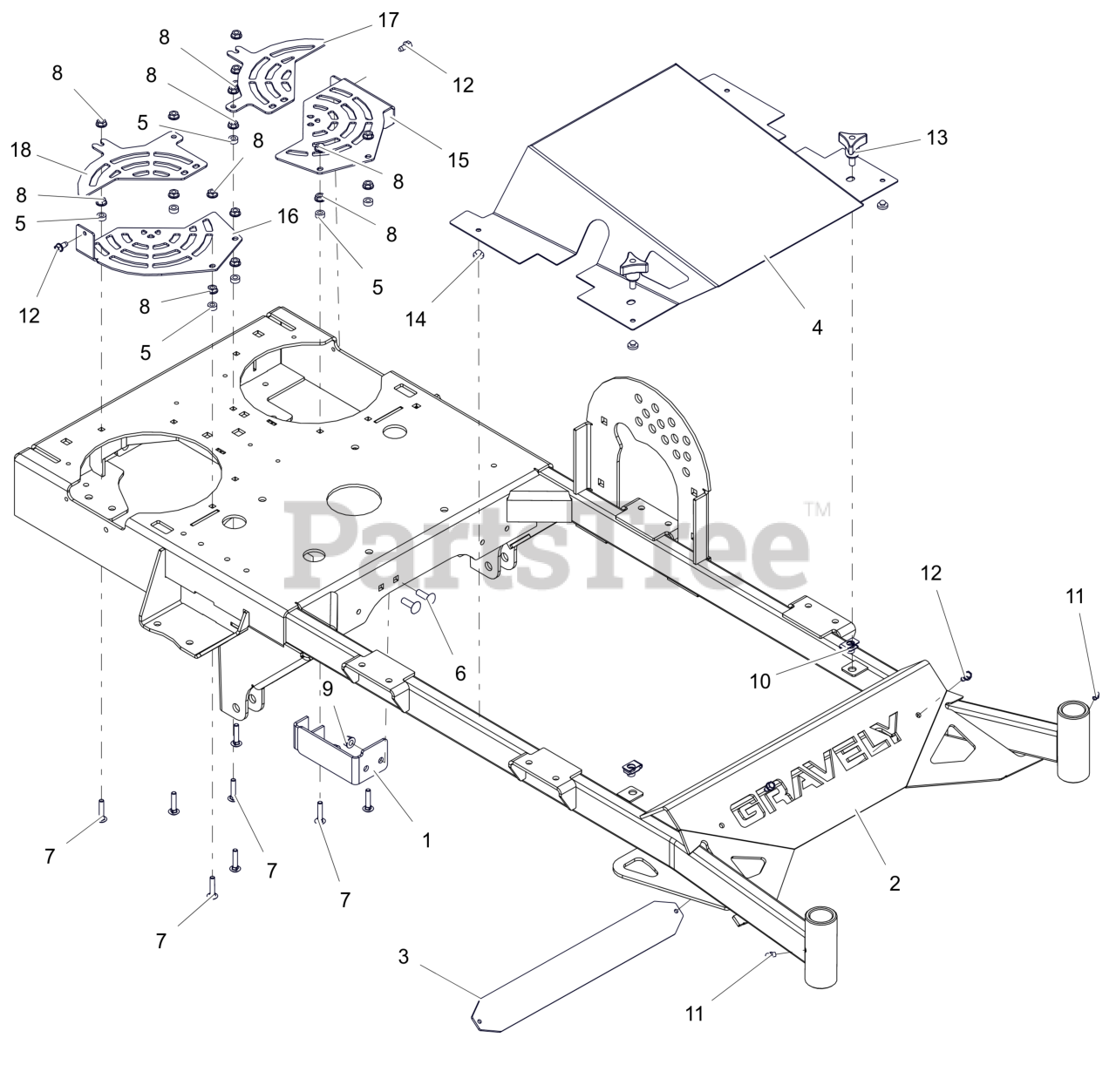

Frame - 36" Parts Diagram

  • Title

1

Gravely 05066051

WLDMT, CLUTCH STOP

$

$

Not available

2

Gravely 09161953

WLDMT, FRAME 36" PRO WLK (RED)

$

$

Not available

3

Gravely 04416951

BACKER, NAMEPLATE

$

$

Not available

4

Gravely 05110553

SHIELD, FRONT 36" PRO-WALK (RED)

$

$

Currently unavailable

5

Gravely 05501012

BSHG-SLV .265X.500X.219

$3.99

$

In Stock, Qty 12

0

6

Gravely 06200237

BLT,RHSSN .31-18X1.00 G5 ZCC

$2.49

$

In Stock, only 3 left!

0

7

Gravely 06200403

BTL,RHSN .250-20 X 1.25 G5 ZCC

$

$

Currently unavailable

8

Gravely 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

10

Gravely 07000829

NUT-CLIP RETAINER 5/16-18X.56

$

$

Not available

11

Gravely 07001738

FTG-LUBE .25-28X.256 SST

$3.99

$

Usually ships in 4-12 days

0

12

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

13

Gravely 07500008

KNOB,WING STUD 5/16-18 X .75

$5.99

$

In Stock, Qty 20+

0

14

Gravely 07503100

BUMPER GROMMET

$3.49

$

In Stock, only 3 left!

0

15

Gravely 09180853

GUARD, LH FAN - 36" (RED)

$50.99

$

Usually ships in 4-12 days

0

16

Gravely 09661153

GUARD-RH FAN - 36"- RED

$

$

Not available

17

Gravely 09185253

GUARD, LH FAN - 36" (RED)

$32.99

$

Usually ships in 4-12 days

0

18

Gravely 09185353

GUARD, RH FAN - 36" (RED)

$

$

Not available
