988184 - Gravely Pro-Walk 36" Walk-Behind Mower, Kawasaki FS (SN: 000101 - 000399) Transaxle Drive - 36" Parts Diagram

Pro-Walk 36" Walk-Behind Mower, Kawasaki FS

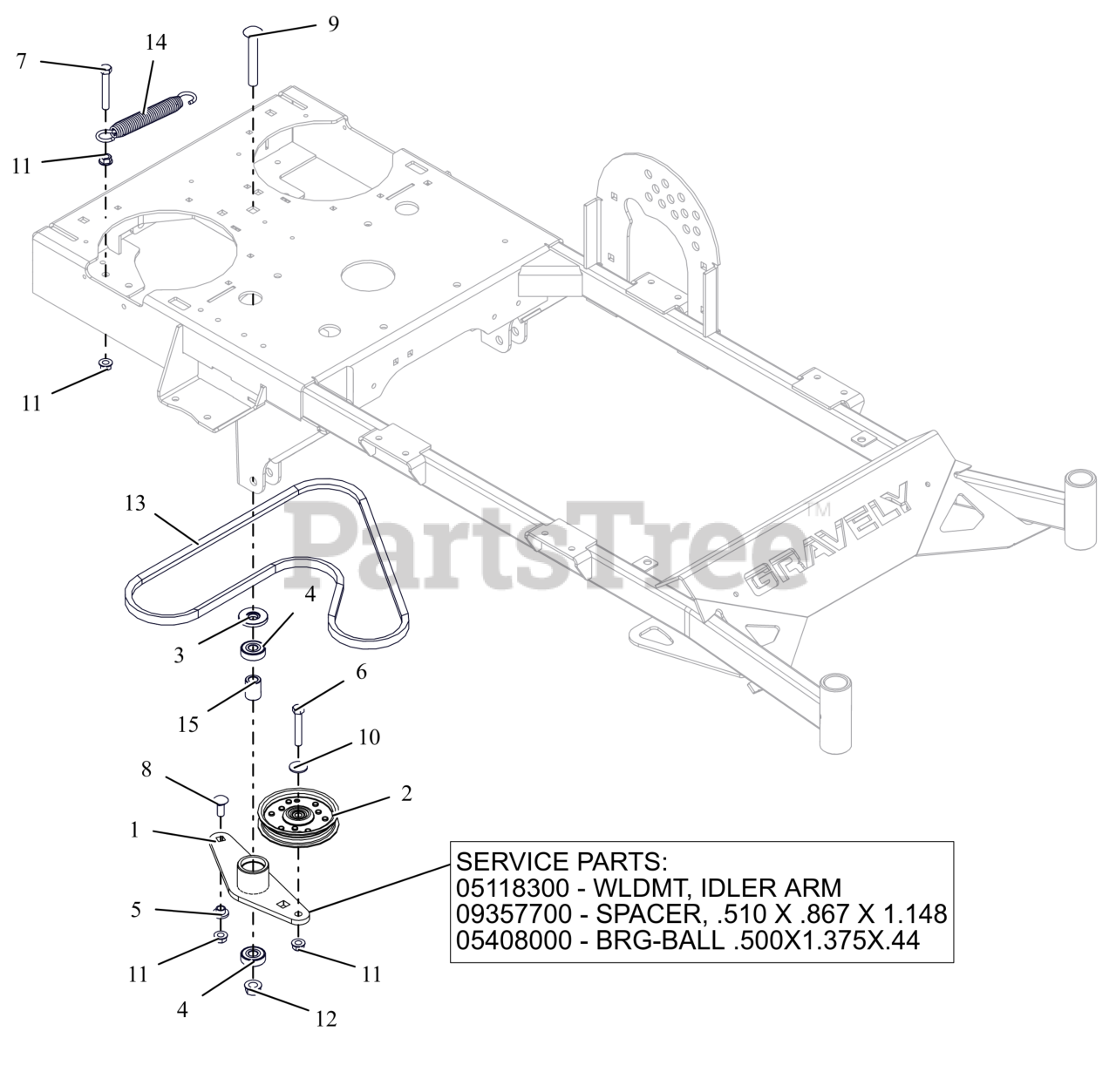

Transaxle Drive - 36" Parts Diagram

  • Title

1

Gravely 58813600

ASM, IDLER ARM SERVICE

Note: Includes Items 4 and 15

$

$

Currently unavailable

2

Gravely 07300101

ASM, 4" IDLER (.75 WIDE)

$62.99

$

In Stock, Qty 20+

0

3

Gravely 04714600

SPACER, IDLER ARM

$5.99

$

In Stock, Qty 20+

0

4

Gravely 05408000

BRG-BALL .500X1.38X.437

$5.99

$

In Stock, Qty 15

0

5

Gravely 05500435

BSHG-FLG .385X.500X.875X.406

$2.49

$

In Stock, Qty 20+

0

6

Gravely 05901640

BLT,HEX .38-16X2.25 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

7

Gravely 05901812

BLT, HEX .38-16X2.50 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

8

Gravely 06200313

BLT, RHSN .38-16X1.00 G5 ZCC

$2.49

$

In Stock, Qty 10

0

9

Gravely 06200340

BLT, RHSSN .50-13X3.50 G5 ZCC

$5.99

$

In Stock, only 2 left!

0

10

Gravely 06401008

WSHR,FLT .438X1.00X.083 ZCC

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

13

Gravely 07200610

V-BELT, HA WRAPPED

$46.99

$

In Stock, Qty 13

0

14

Gravely 08300507

SPRING, EXTENSION
(Superseded to 08300728)

$26.99

$

In Stock, Qty 20+

0

15

Gravely 09357700

SPACER .510 X .75 X 1.1485

$4.99

$

In Stock, only 3 left!

0
