988184 - Gravely Pro-Walk 36" Walk-Behind Mower, Kawasaki FS (SN: 000101 - 000399) Tires and Caster Forks - 36" Parts Diagram

Pro-Walk 36" Walk-Behind Mower, Kawasaki FS

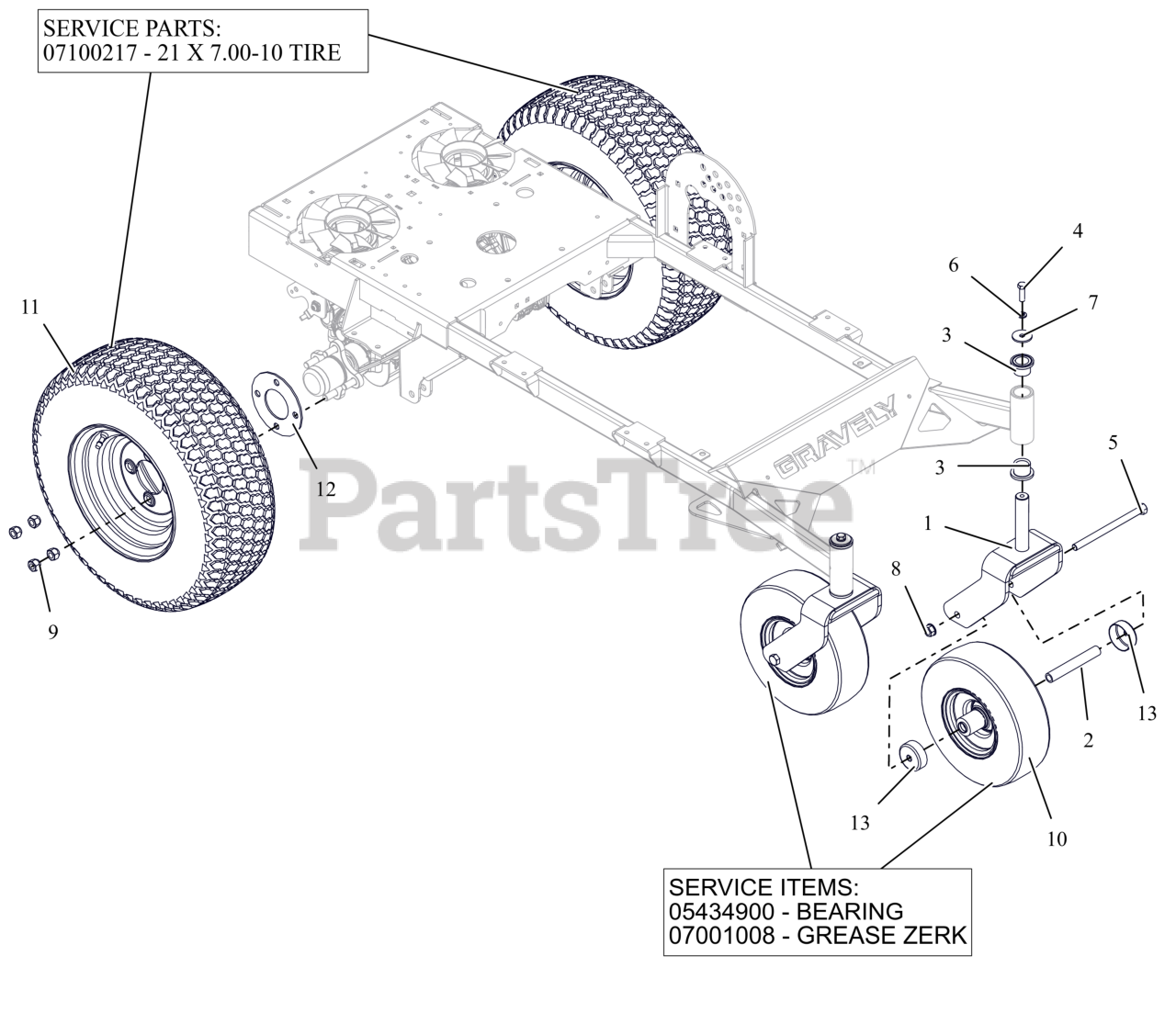

Tires and Caster Forks - 36" Parts Diagram

  • Title

1

Gravely 04986653

WLDMT, CASTER FORK (RED)

$

$

Not available

2

Gravely 00278500

SPACER, ROLLED WHEEL

$13.99

$

In Stock, Qty 20+

0

3

Gravely 04366100

BRG, FLG 1.00 X 1.25 X 1.00

$17.99

$

Usually ships in 4-12 days

0

4

Gravely 05901724

BLT, HEX .38-16X1.25 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

5

Gravely 05901917

BLT, HEX 0.5-13X7 GR5 ZCC

$7.99

$

In Stock, only 1 left!

0

6

Gravely 06300116

WSHR,LK-REG .375X.094 ZCC

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06401106

WSHR, FLT .380X1.50X.125 ZCC

$3.49

$

In Stock, Qty 11

0

8

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06500926

NUT, WHEEL .50-20 ZCC

$1.49

$

In Stock, Qty 20+

0

10

Gravely 07101233

ASM, WHL/TIRE 11X4.00-5

$

$

Not available

10

Gravely 05434900

BRG-BALL .752X1.380X.500

Note: Component Service Part

$13.99

$

In Stock, Qty 20+

0

10

Gravely 07001008

GREASE FITTING 1/4-28 EXTENDED

Note: Component Service Part

$12.99

$

In Stock, only 2 left!

0

11

Gravely 07101305

ASSY, TIRE/WHL 21X7.00-10

$159.99

$

Usually ships in 4-12 days

0

11

Gravely 07100217

TIRE, 21X7.00-10

Note: Component Service Part

$148.99

$

Usually ships in 4-12 days

0

12

Gravely 09126951

SPACER, WHEEL 4-BOLT

$14.99

$

Usually ships in 4-12 days

0

13

Gravely 09357800

SHIELD, WHEEL BEARING

$9.49

$

In Stock, Qty 20+

0
