988184 - Gravely Pro-Walk 36" Walk-Behind Mower, Kawasaki FS (SN: 000101 - 000399) Handlebar Components Parts Diagram

Pro-Walk 36" Walk-Behind Mower, Kawasaki FS

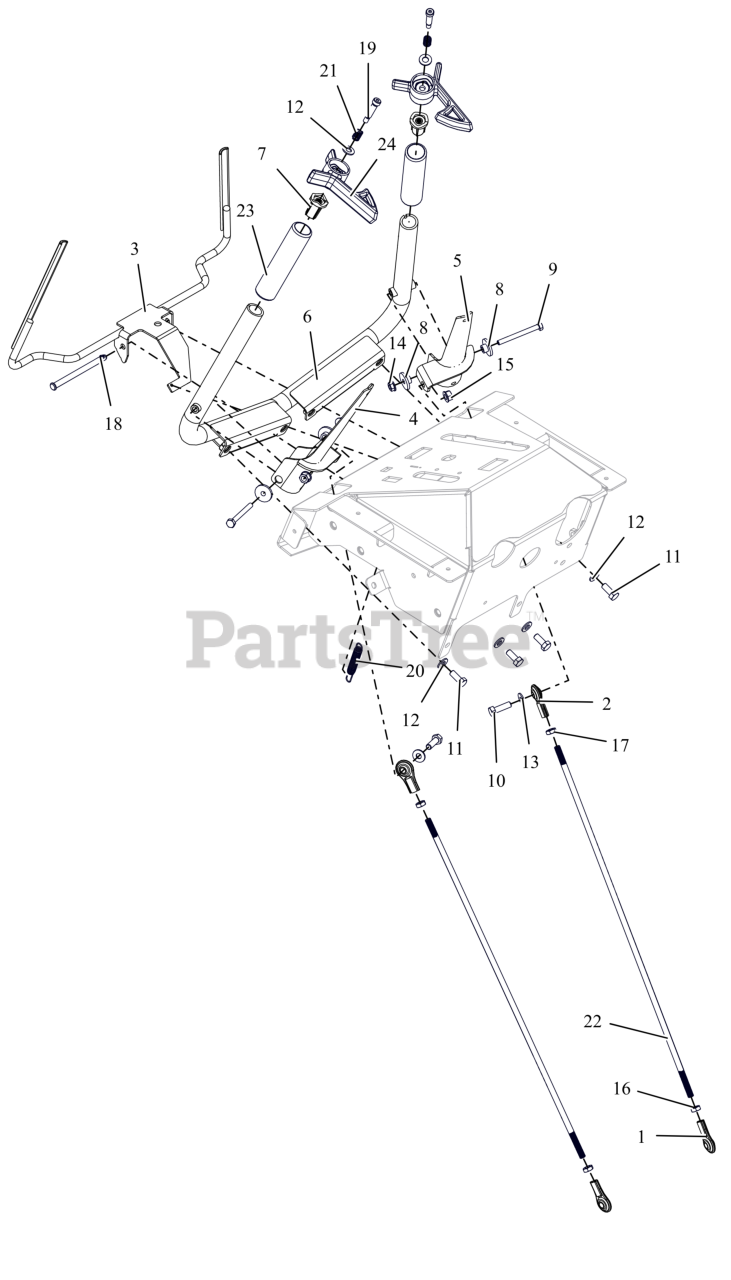

Handlebar Components Parts Diagram

  • Title

1

Gravely 03787100

ALIGNABALL, 5/16 RH THREAD

$18.99

$

In Stock, only 2 left!

0

2

Gravely 03787200

ALIGNABALL, 5/16 LH THREAD
(Superseded to 05298700)

$17.99

$

Usually ships in 4-12 days

0

3

Gravely 09172551

WLDMT, OPERATOR PRESENCE LEVER (BLACK)

$124.99

$

Usually ships in 4-12 days

0

4

Gravely 09172651

WLDMT, RH OPERATOR DRIVE PADDLE (BLACK)

$54.99

$

Usually ships in 4-12 days

0

5

Gravely 09173551

WLDMT, LH OPERATOR DRIVE PADE (BLACK)

$54.99

$

Usually ships in 4-12 days

0

6

Gravely 09173851

WLDMT, HANDLEBAR (BLACK)

$170.99

$

Usually ships in 4-12 days

0

7

Gravely 09174800

BASE, NEUTRAL LOCK

$14.99

$

Usually ships in 4-12 days

0

8

Gravely 05500005

BSHG-FLG .265X.448X.375X1.00

$9.49

$

In Stock, only 1 left!

0

9

Gravely 05900034

BLT, HEX 0.25-20X2.5 GR8 ZCC

$2.99

$

Usually ships in 4-12 days

0

10

Gravely 05901701

BLT,HEX .31-18X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

11

Gravely 05901704

BLT,HEX .31-18X.75 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06401124

WSHR, FLT .312X.734X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0

15

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06500923

NUT-JAM .312-24 ZCC

$0.99

$

In Stock, Qty 13

0

17

Gravely 06501002

NUT, JAM-LH .312-24 ZCC

$3.99

$

Usually ships in 4-12 days

0

18

Gravely 06800204

PIN, SLIC-.3125X4.015X3.625 -ZCC

$17.99

$

Usually ships in 4-12 days

0

19

Gravely 07070107

BLT-SHLDR .313X1.00X.25-20

$

$

Currently unavailable

20

Gravely 08300527

SPRING, EXTENSION

$3.49

$

Usually ships in 4-12 days

0

21

Gravely 08300720

SPRG, COMPRESSION
(Superseded to 08307800)

$9.49

$

Usually ships in 4-12 days

0

22

Gravely 09172400

ROD, STEERING

$

$

Currently unavailable

23

Gravely 09174300

GRIP, HANDLEBAR

$11.99

$

Usually ships in 4-12 days

0

24

Gravely 09174900

LOCK, NEUTRAL ROTARY

$8.49

$

Usually ships in 4-12 days

0
