988183 (61 HE) - Gravely Pro-Hydro 61" Walk-Behind Mower (SN: 000101 & Above) Pulleys And Idlers - 61" Parts Diagram

Pro-Hydro 61" Walk-Behind Mower

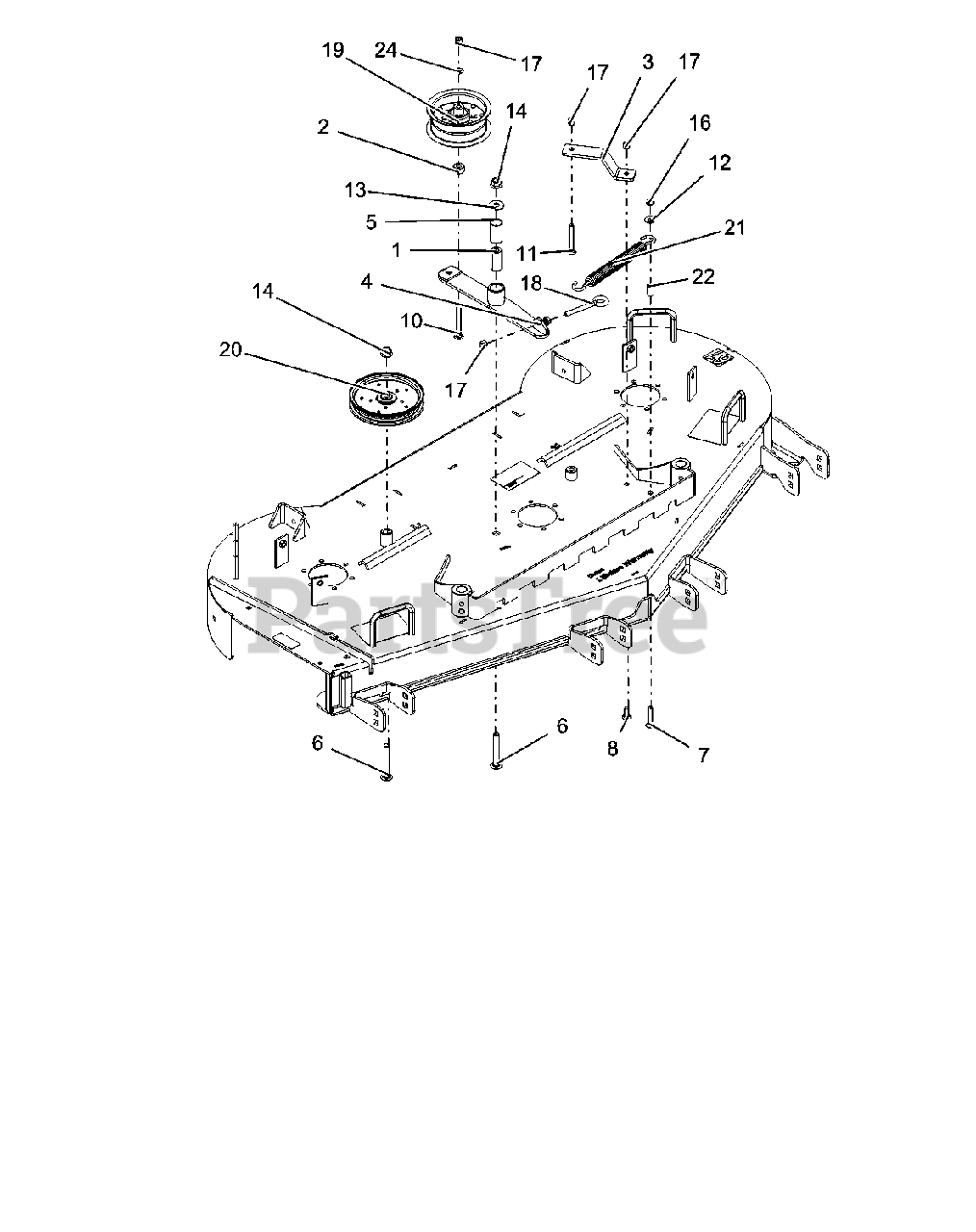

Pulleys And Idlers - 61" Parts Diagram

  • Title

1

Gravely 01581700

BSHG, SPCR .502X.997X2.03

$5.99

$

In Stock, Qty 20+

0

2

Gravely 03846217

SPACER, .437X1.00X.58 SMLS

$9.49

$

In Stock, Qty 10

0

3

Gravely 03856451

STRAP, IDLER 48/52 WALK-BLACK

$13.99

$

Usually ships in 4-12 days

0

4

Gravely 04370951

WLDMT, IDLER 61 WALK-BLACK

$45.99

$

Usually ships in 4-12 days

0

5

Gravely 05500123

BSHG, 1.00X1.125X1.937
(Superseded to 05501234)

$10.99

$

In Stock, Qty 20+

0

6

Gravely 06200003

BLT-RHDSSQNK .50-13X3.50 G5YZ
(Superseded to 06200340)

$5.99

$

In Stock, only 4 left!

0

7

Gravely 06203200

BLT-RHDSSQNK .38-16X2.00 G5YZ
(Superseded to 06200323)

$2.99

$

In Stock, Qty 20+

0

8

Gravely 06212000

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06222400

BLT-RDHDSQNK .38-16X3.50 G5 YWZC
(Superseded to 06200302)

$9.49

$

In Stock, only 1 left!

0

11

Gravely 06228100

BLT-RDHDSQNK .38-16X3.00 G5 YWZC
(Superseded to 06200418)

$3.99

$

In Stock, only 1 left!

0

12

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZC
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06442000

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.49

$

In Stock, only 2 left!

0

14

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

18

Gravely 07001701

BOLT, EYE .38-16X4.50 .75 DIA

$12.99

$

Usually ships in 4-12 days

0

19

Gravely 07300532

PULLEY, FLAT 5.00X2.36X.375

$68.99

$

In Stock, Qty 14

0

20

Gravely 07316700

IDLER-FLAT-PLY 6.75X.510

$63.99

$

In Stock, only 2 left!

0

21

Gravely 08300505

SPRG, EXTENSION - SWIVEL

$25.99

$

In Stock, Qty 20+

0

22

Gravely 08833400

BUSH.,S.391X.622X.95 ST REV A

$5.99

$

In Stock, only 1 left!

0

24

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0
