988182 (52 HE) - Gravely Pro-Hydro 52" Walk-Behind Mower (SN: 000101 & Above) Hydraulic Tank Parts Diagram

Pro-Hydro 52" Walk-Behind Mower

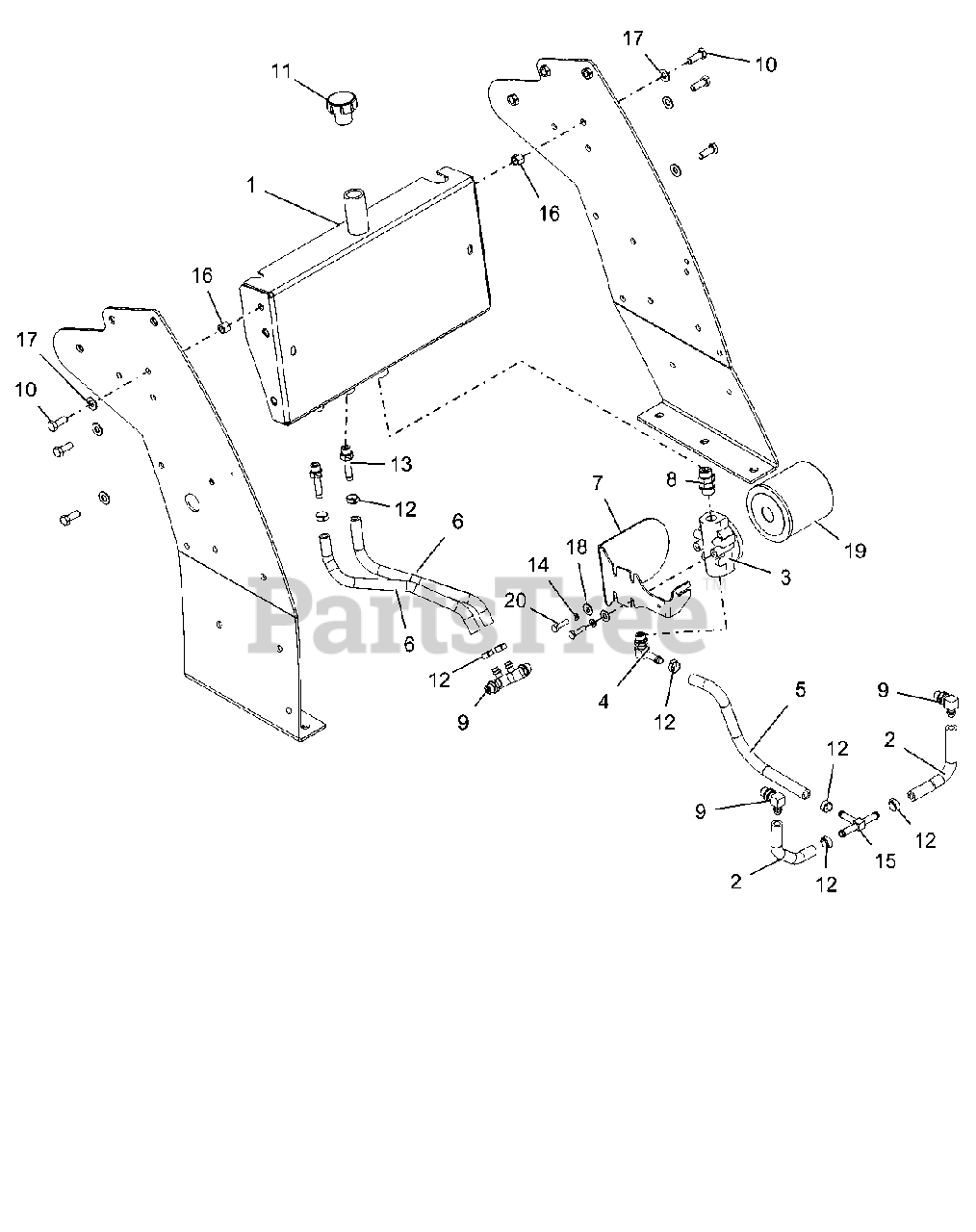

Hydraulic Tank Parts Diagram

  • Title

1

Gravely 04499153

WLDMT, TANK HYDRO STR PORT-RED

$142.99

$

Usually ships in 4-12 days

0

2

Gravely 00200455

HOSE, HYD 3/8 X 6.00

$

$

Not available

3

Gravely 00200463

HEAD, OIL FILTER

$34.99

$

Usually ships in 4-12 days

0

4

Gravely 00200464

FTG, 90 BRB-OR 4601-06-08

$17.99

$

Usually ships in 4-12 days

0

5

Gravely 03832605

HOSE, HYD .375X10.5

$14.99

$

Usually ships in 4-12 days

0

6

Gravely 03832621

HOSE, HYD .375X14.00

$

$

Not available

7

Gravely 04455200

GUARD, HYDRO FILTER

$

$

Not available

8

Gravely 07001606

FTG, STR UNION M80-M80

$14.99

$

Usually ships in 4-12 days

0

9

Gravely 07001641

FTG, 90 9/16MOR X 3/8HOSE SHRT

$

$

Not available

10

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

11

Gravely D18333

CAP, OIL FILL BREATHER

$24.99

$

Usually ships in 4-12 days

0

12

Gravely D18379

CLAMP, HOSE - 1/2" PINCH

$3.99

$

In Stock, only 2 left!

0

13

Gravely GDA10065

ADAPTER, STRAIGHT FITTING

$

$

Not available

14

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

15

Gravely M86863

FTG, TUN 3/8 HOSE

$

$

Not available

16

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

17

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06435800

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

19

Gravely GDA10137

FILTER, OIL

$22.99

$

In Stock, only 3 left!

0

20

Gravely 05947700

BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0
