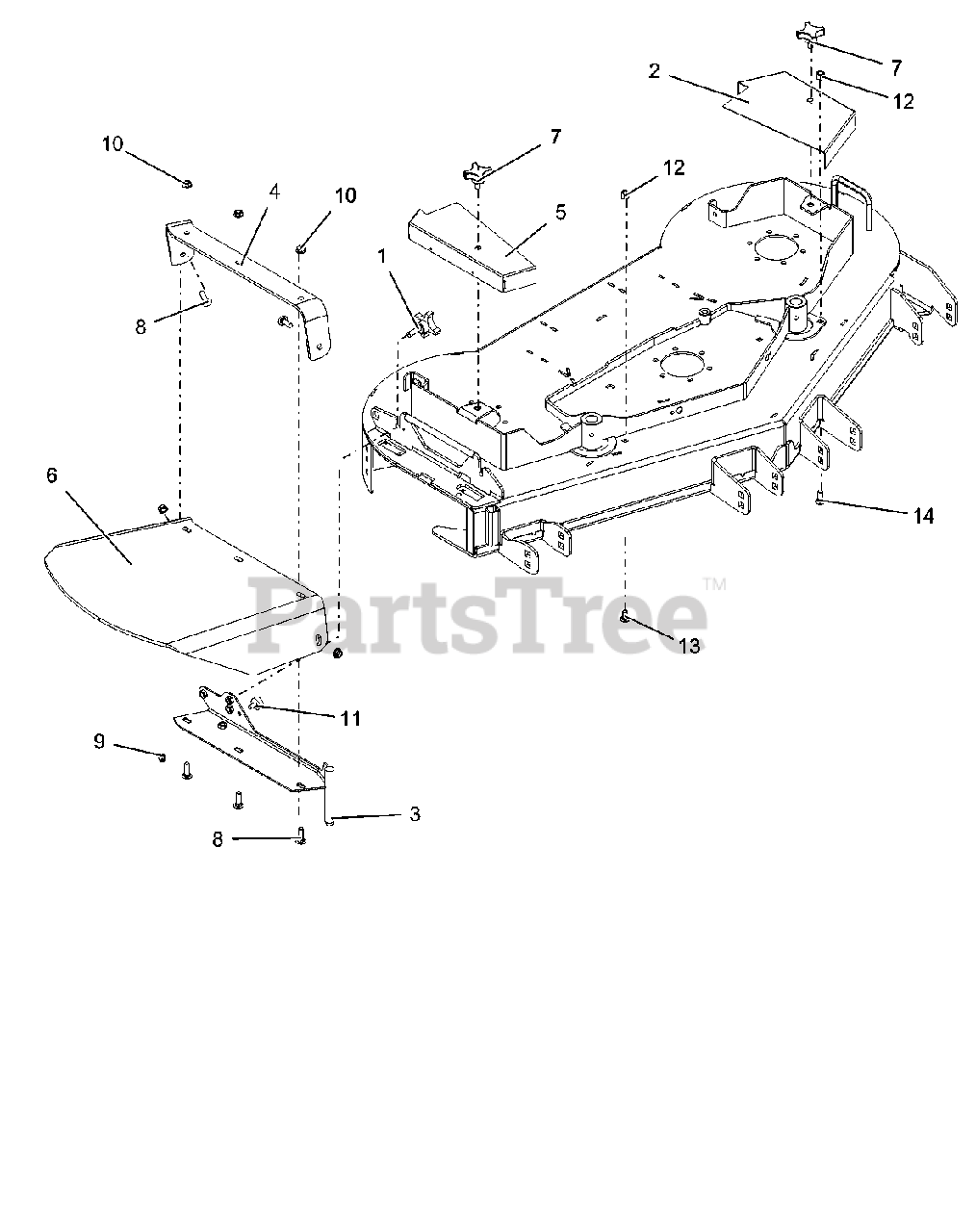

988182 (52 HE) - Gravely Pro-Hydro 52" Walk-Behind Mower (SN: 000101 & Above) Chute, Belt Covers - 52" Parts Diagram

Pro-Hydro 52" Walk-Behind Mower

Chute, Belt Covers - 52" Parts Diagram

  • Title

1

Gravely 03820400

KNOB, 3/8 X 1.25 - 4 PRONG

$10.99

$

Usually ships in 4-12 days

0

2

Gravely 03899253

SHIELD, LH SPINDLE 52 FLWLK-RED

$33.99

$

Usually ships in 4-12 days

0

3

Gravely 03981953

WLDT. DISCHARGE-RED

$88.99

$

Usually ships in 4-12 days

0

4

Gravely 03983853

STRAP, WALK RUBBER DISCHARGE-RED

$62.99

$

Usually ships in 4-12 days

0

5

Gravely 03999753

SHIELD, RH SPINDLE 52 FLWLK G2-RED

$33.99

$

Usually ships in 4-12 days

0

6

Gravely 04044200

SHIELD, WALK RUBBER DISCHARGE

$

$

Not available

7

Gravely 04378100

KNOB, 3/8-16 x .75

$

$

Not available

8

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5 YWZC
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

9

Gravely 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 07533600

BUMPER, RUBBER

$11.99

$

In Stock, only 1 left!

0

12

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

13

Gravely 06200004

BLT-RHDSSQNK .38-16X.75 G5YZ
(Superseded to 06200336)

$2.49

$

In Stock, Qty 20+

0

14

Gravely 06212000

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0
