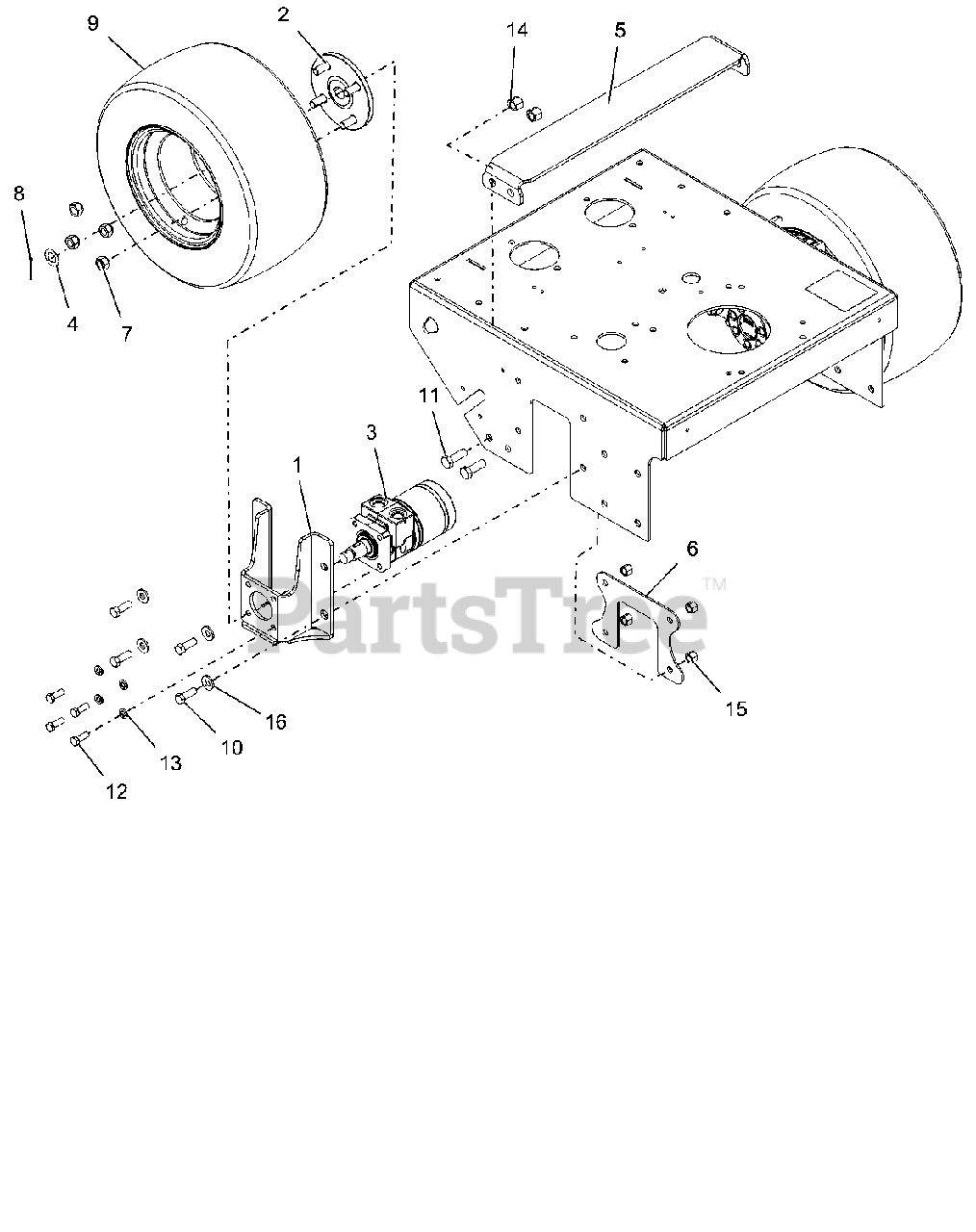

988181 (48 LP) - Gravely Pro-Hydro 48" Walk-Behind Mower, Propane (SN: 000101 & Above) Tires And Hydraulic Motors Parts Diagram

Pro-Hydro 48" Walk-Behind Mower, Propane

Tires And Hydraulic Motors Parts Diagram

  • Title

1

Gravely 04506953

WLDMT, WHEEL MOTOR BRACKET-RED

$81.99

$

Usually ships in 4-12 days

0

2

203842

ASSY, WHEEL HUB

$

$

Not available

3

Gravely D18311

MOTOR, HYDRAULIC WHEEL

$840.99

$

Usually ships in 4-12 days

0

4

150052

BUSHING, MACH .75 X 1.25 X .048

$

$

Not available

5

Gravely 03932053

PLATE, ENGINE BED REAR 52/48-RED

$27.99

$

Usually ships in 4-12 days

0

6

Gravely 04440353

PLATE, ENGINE BED DOUBLE-RED

$16.99

$

Usually ships in 4-12 days

0

7

Gravely 06553000

NUT, 1/2-20 LUG C
(Superseded to 06517600)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06714300

PIN, COTTER

$1.99

$

Usually ships in 4-12 days

0

9

Gravely 07100906

ASSM, WHL/TIRE 16X7.50-8 K500

$175.99

$

Usually ships in 4-12 days

0

10

Gravely 05963800

BLT-HEX .44-14X1.25 GR5 YWZC

$2.99

$

Usually ships in 4-12 days

0

11

Gravely 05962000

BLT-HEX .50-13X1.50 GR5 YWZC
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

12

Gravely D14280

BOLT, 3/8-16 X 1 GR8 BLACK

$2.49

$

Usually ships in 4-12 days

0

13

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06540600

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

15

Gravely 06527500

NUT-LK-NYL .44-14 YWZC

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 06400914

WSHR-FL-STL .468X1.00X.125 YWZC

$3.99

$

Usually ships in 4-12 days

0
