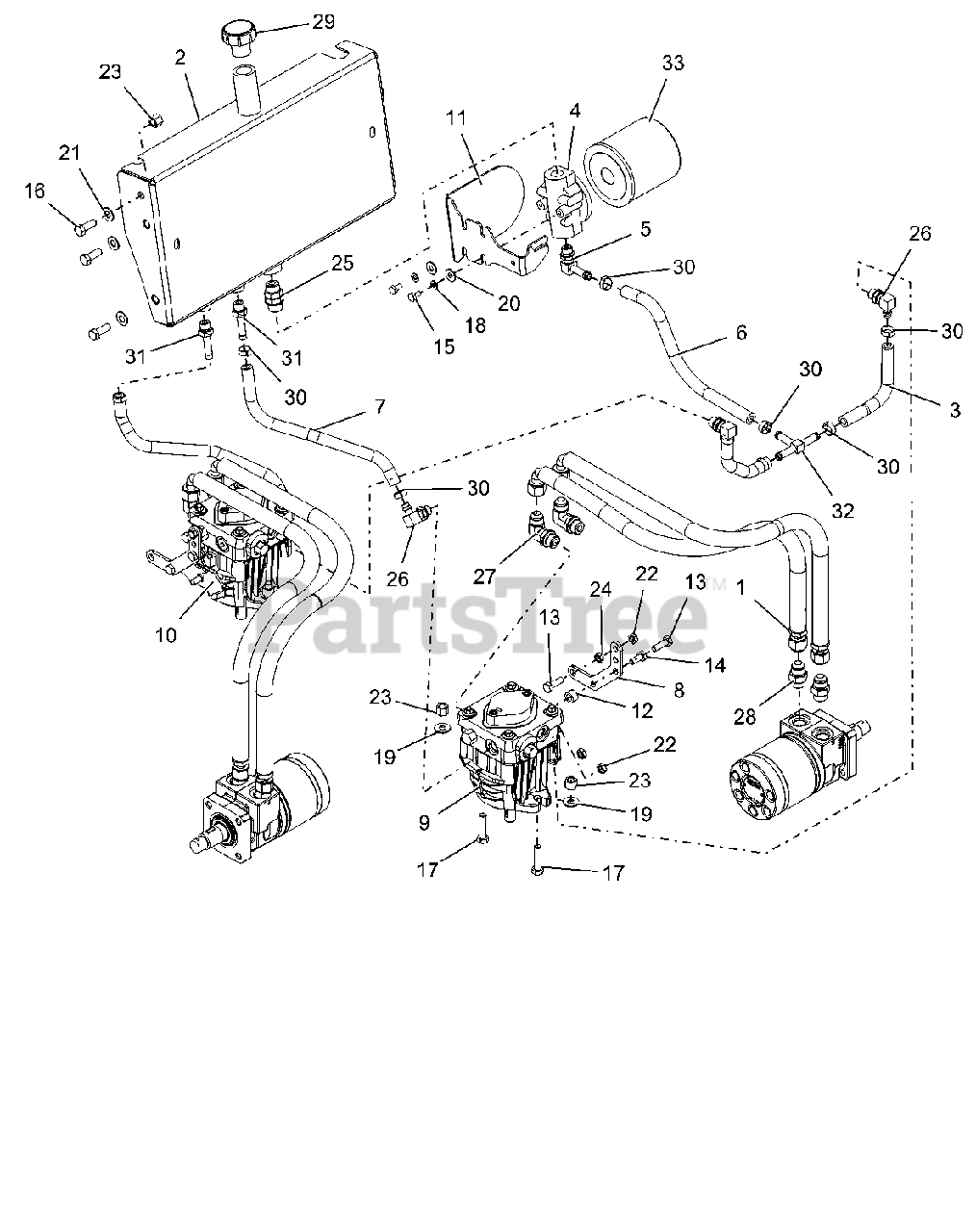

988181 (48 LP) - Gravely Pro-Hydro 48" Walk-Behind Mower, Propane (SN: 000101 & Above) Hydraulic System Parts Diagram

Pro-Hydro 48" Walk-Behind Mower, Propane

Hydraulic System Parts Diagram

  • Title

1

201091

HOSE, HYD 1/2 X 26 1/2 EZFLEX

$

$

Not available

2

Gravely 04499153

WLDMT, TANK HYDRO STR PORT-RED

$142.99

$

Usually ships in 4-12 days

0

3

Gravely 00200455

HOSE, HYD 3/8 X 6.00

$

$

Not available

4

Gravely 00200463

HEAD, OIL FILTER

$34.99

$

Usually ships in 4-12 days

0

5

Gravely 00200464

FTG, 90 BRB-OR 4601-06-08

$17.99

$

Usually ships in 4-12 days

0

6

Gravely 03832605

HOSE, HYD .375X10.5

$14.99

$

Usually ships in 4-12 days

0

7

Gravely 03832621

HOSE, HYD .375X14.00

$

$

Not available

8

Gravely 04198051

BRACKET-PUMP CONTROL-BLACK

$

$

Not available

9

Gravely 04269500

PUMP, LH HYD PE (10CC)

$678.99

$

Usually ships in 4-12 days

0

10

Gravely 04269600

PUMP, RH HYD PE (10CC)

$678.99

$

Usually ships in 4-12 days

0

11

Gravely 04455253

GUARD, HYDRO FILTER-RED

$

$

Not available

12

Gravely 05522100

BSHG, SLV REV

$4.99

$

Usually ships in 4-12 days

0

13

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 05947900

BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

18

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06435800

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 06500011

NUT-LK-CTR-JAM .31-18 YWZC
(Superseded to 06500913)

$0.99

$

In Stock, only 3 left!

0

23

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

24

Gravely 06536100

NUT, JAM .312-18 YWZC
(Superseded to 06500909)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 07001606

FTG, STR UNION M80-M80

$14.99

$

Usually ships in 4-12 days

0

26

Gravely 07001641

FTG, 90 9/16MOR X 3/8HOSE SHRT

$

$

Not available

27

Gravely D14196

FTG, ADP JIC-ORB 6801-08-08

$5.99

$

Usually ships in 4-12 days

0

28

Gravely D14197

FITTING, STRAIGHT

$

$

Not available

29

Gravely D18333

CAP, OIL FILL BREATHER

$24.99

$

Usually ships in 4-12 days

0

30

Gravely D18379

CLAMP, HOSE - 1/2" PINCH

$3.99

$

In Stock, only 2 left!

0

31

Gravely GDA10065

ADAPTER, STRAIGHT FITTING

$

$

Not available

32

Gravely M86863

FTG, TUN 3/8 HOSE

$

$

Not available

33

Gravely GDA10137

FILTER, OIL

$22.99

$

In Stock, only 3 left!

0
