988181 (48 LP) - Gravely Pro-Hydro 48" Walk-Behind Mower, Propane (SN: 000101 & Above) Height Of Cut Rods/Pins Parts Diagram

Pro-Hydro 48" Walk-Behind Mower, Propane

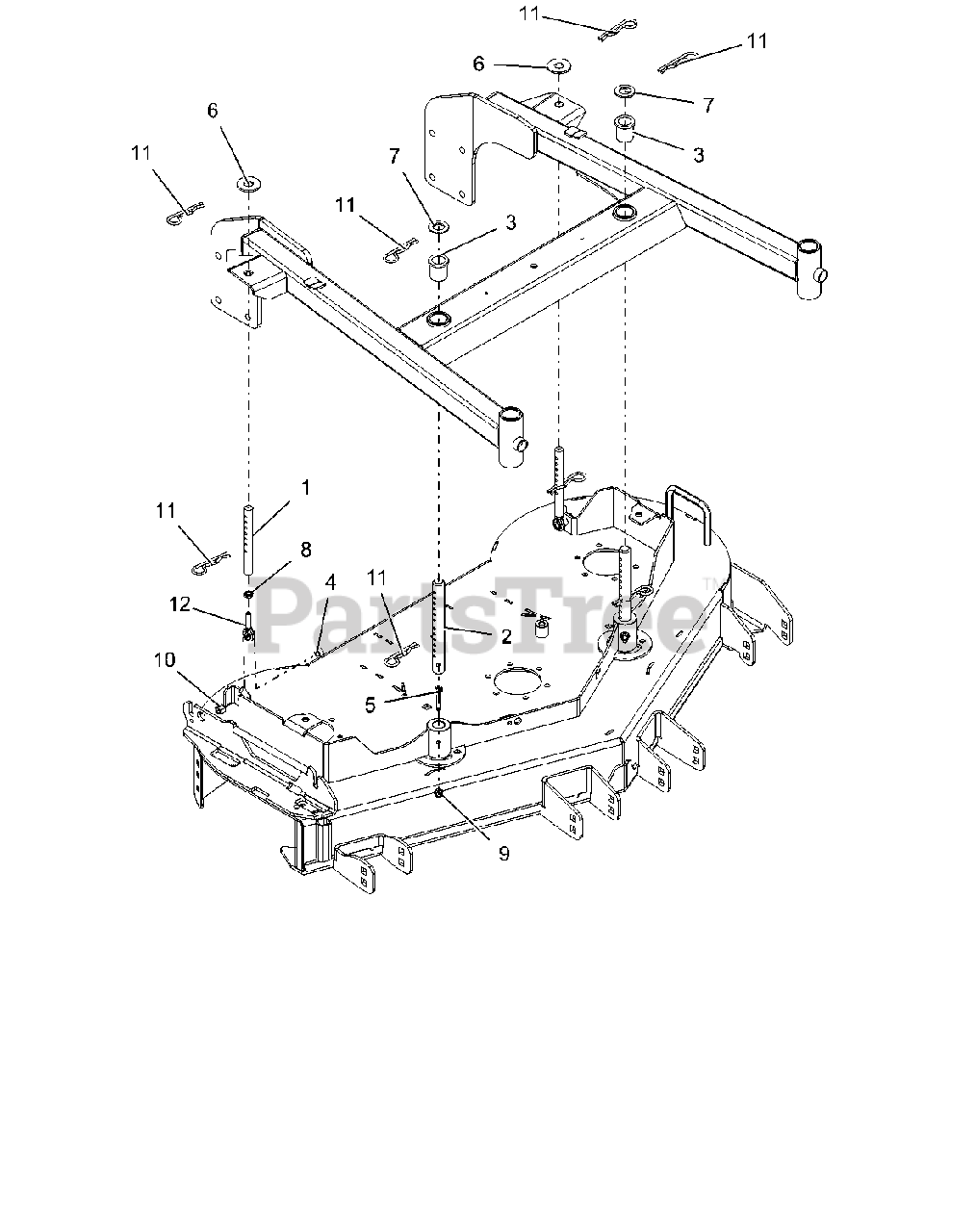

Height Of Cut Rods/Pins Parts Diagram

  • Title
1

Gravely 03841021

ROD, REAR HOC

$34.99

$

Usually ships in 4-12 days

0

2

Gravely 04197700

PIN, FRONT HOC

$41.99

$

Usually ships in 4-12 days

0

3

Gravely 05500934

BSHG-FLG 1.00X1.25X1.5X1.5

$6.99

$

In Stock, Qty 20+

0

4

Gravely 05522100

BSHG, SLV REV

$4.99

$

Usually ships in 4-12 days

0

5

Gravely 05984900

BLT-HEX .31-18X2.50 GR8 YWZC
(Superseded to 05901717)

$2.99

$

Usually ships in 4-12 days

0

6

Gravely 06442900

WSHR-FL-STL.688X1.75X.134 YWZ
(Superseded to 06401032)

$1.49

$

In Stock, Qty 5

0

7

Gravely 06444700

WSHR-FL-STL .875X1.500X.1196YZ
(Superseded to 06401207)

$3.99

$

In Stock, Qty 20+

0

8

Gravely 06534700

NUT-JAM .375-24 YWZC
(Superseded to 06500739)

$2.49

$

In Stock, only 1 left!

0

9

Gravely 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

11

Gravely 06713300

PIN-HAIR-INT .17X.68X3.50 YWZC
(Superseded to 06700228)

$2.99

$

In Stock, only 1 left!

0

12

Gravely 08790600

ROD, END 3/8 RH REV

$

$

Not available
