988181 (48 LP) - Gravely Pro-Hydro 48" Walk-Behind Mower, Propane (SN: 000101 & Above) Frame And Casters Parts Diagram

Pro-Hydro 48" Walk-Behind Mower, Propane

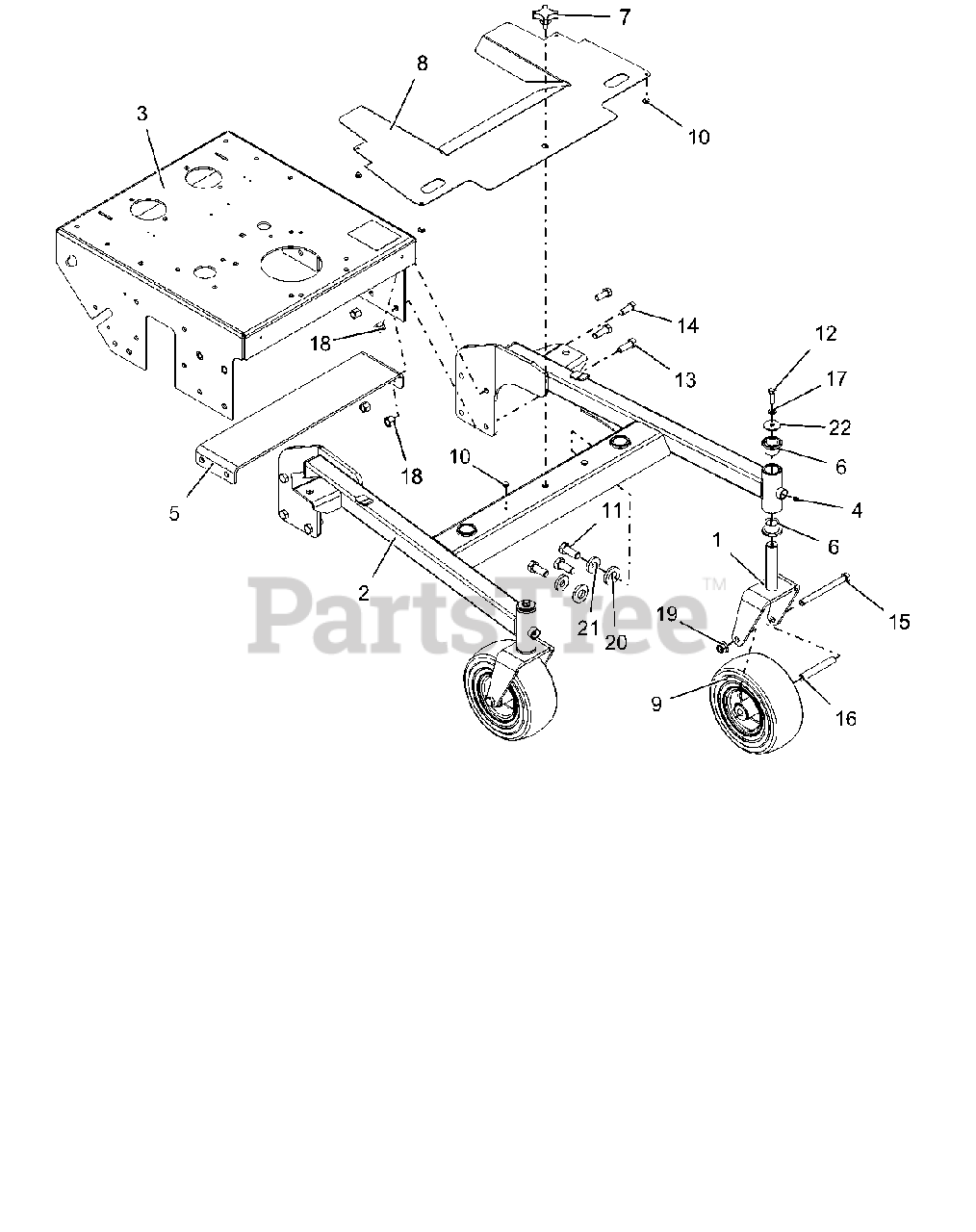

Frame And Casters Parts Diagram

  • Title

1

Gravely 03855153

WLDMT, FRONT WHEEL FLOAT WALK

$122.99

$

Usually ships in 4-12 days

0

2

Gravely 03858953

WLDMT, DECK FRAME 48 FLWLK

$774.99

$

Usually ships in 4-12 days

0

3

Gravely 58815401

ASSM, 48-52" FRAME W/DECALS

$176.99

$

Usually ships in 4-12 days

0

4

Gravely 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$3.49

$

Usually ships in 4-12 days

0

5

Gravely 03925453

PLATE, ENGINE BED FRONT 48/52-RED

$25.99

$

Usually ships in 4-12 days

0

6

Gravely 04366100

BRG, FLANGE 1.00 X 1.25 X 1.00

$17.99

$

Usually ships in 4-12 days

0

7

Gravely 04378100

KNOB, 3/8-16 x .75

$

$

Not available

8

Gravely 04660200

SHIELD, BELT 48" HYDRO WALK

$

$

Not available

9

Gravely 07100931

9X3.5-4 CAREFREE BLT TOGETHER

$136.99

$

In Stock, only 2 left!

0

10

Gravely 07503100

BUMPER GROMMET .125 X .25 REV

$3.49

$

In Stock, only 3 left!

0

11

Gravely 05901321

BLT-HEX .62-11X1.50 GR8 YWZC
(Superseded to 05901723)

$3.99

$

Usually ships in 4-12 days

0

12

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 05962000

BLT-HEX .50-13X1.50 GR5 YWZC
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

14

Gravely 05958900

BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

15

Gravely 05964100

BLT-HEX .50-13X5.50 GR5YWZC
(Superseded to 05901632)

$6.99

$

Usually ships in 4-12 days

0

16

Gravely D13003

TUBE, CASTER AXLE

$20.99

$

Usually ships in 4-12 days

0

17

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06540600

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

19

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 03841023

WSHR-FL-STL .905X1.750X.25 YWZC

$

$

Not available

21

Gravely 06400913

WSHR-FL-STL .630X1.50X.25 YWZC
(Superseded to 06401033)

$6.99

$

In Stock, only 1 left!

0

22

Gravely 06443400

WSHR-FL-STL .380X1.50X.125 YWZC
(Superseded to 06401106)

$3.49

$

In Stock, Qty 10

0
