988180 (48 HE) - Gravely Pro-Hydro 48" Walk-Behind Mower (SN: 000101 & Above) Fuel System - Non-CARB Parts Diagram

Pro-Hydro 48" Walk-Behind Mower

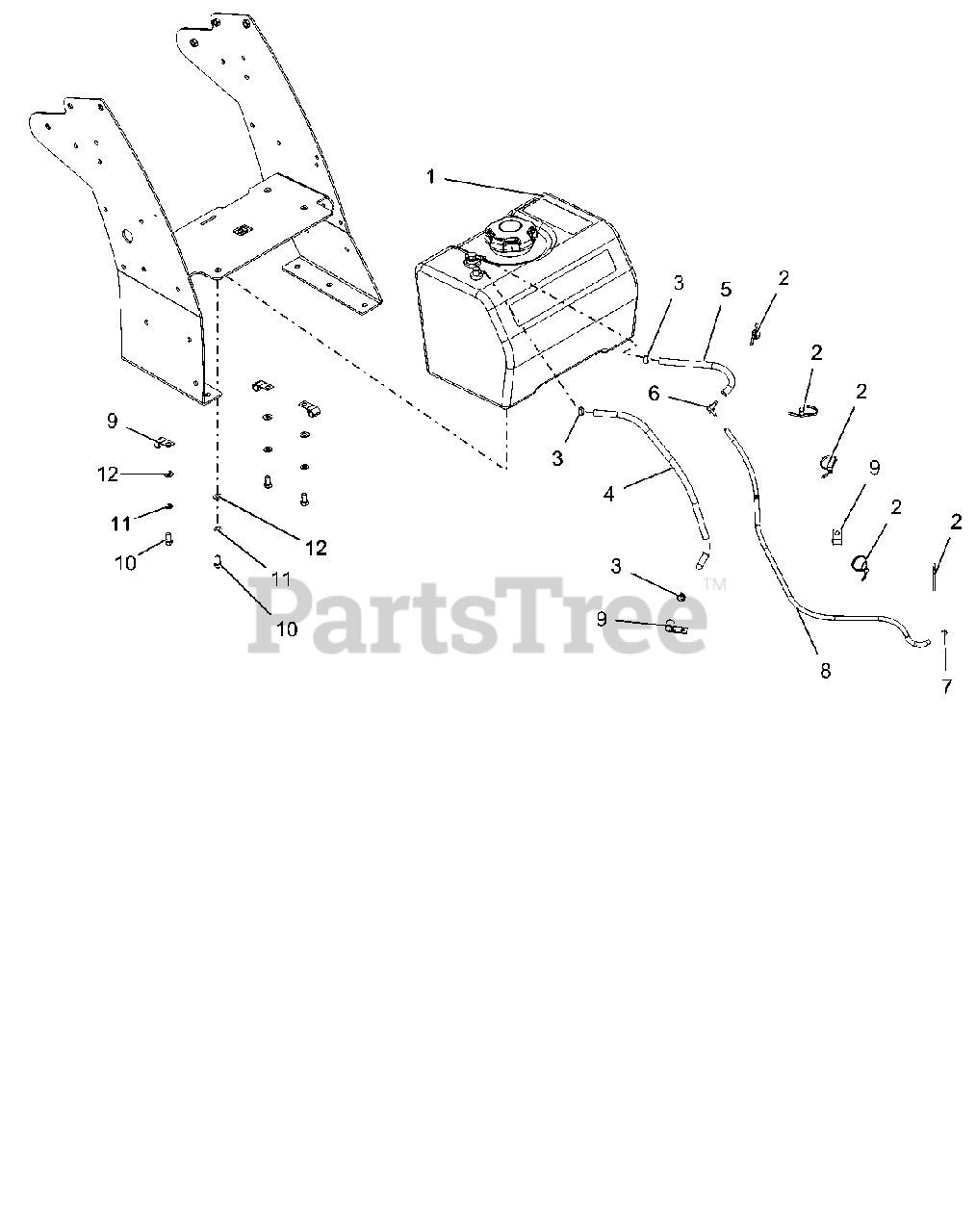

Fuel System - Non-CARB Parts Diagram

  • Title
1

Gravely 04952000

TANK, FUEL LOW PERM
(Superseded to 05283900)

$

$

Not available

2

Gravely 00111910

CABLE TIE, .15 X 8.50

$

$

Not available

3

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

4

Gravely 03832612

HOSE, FUEL 1/4 X 18.00

$

$

Not available

5

Gravely 03832614

HOSE, FUEL HYDRO TANK - ROV

$

$

Not available

6

Gravely 04097000

FITTING-3/16X1/4 90DEGREE VAC

$14.99

$

Usually ships in 4-12 days

0

7

Gravely 04097700

CLAMP - HOSE, SPRING .188

$

$

Not available

8

Gravely 04459701

SAE LOW CARB 3/16" X 37"

$

$

Not available

9

Gravely AH89557

P-CLIP, .500 INSULATED

$5.49

$

In Stock, only 1 left!

0

10

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0
