988180 (48 HE) - Gravely Pro-Hydro 48" Walk-Behind Mower (SN: 000101 & Above) Deck, Belts, Blades And Spindles - 48" Parts Diagram

Pro-Hydro 48" Walk-Behind Mower

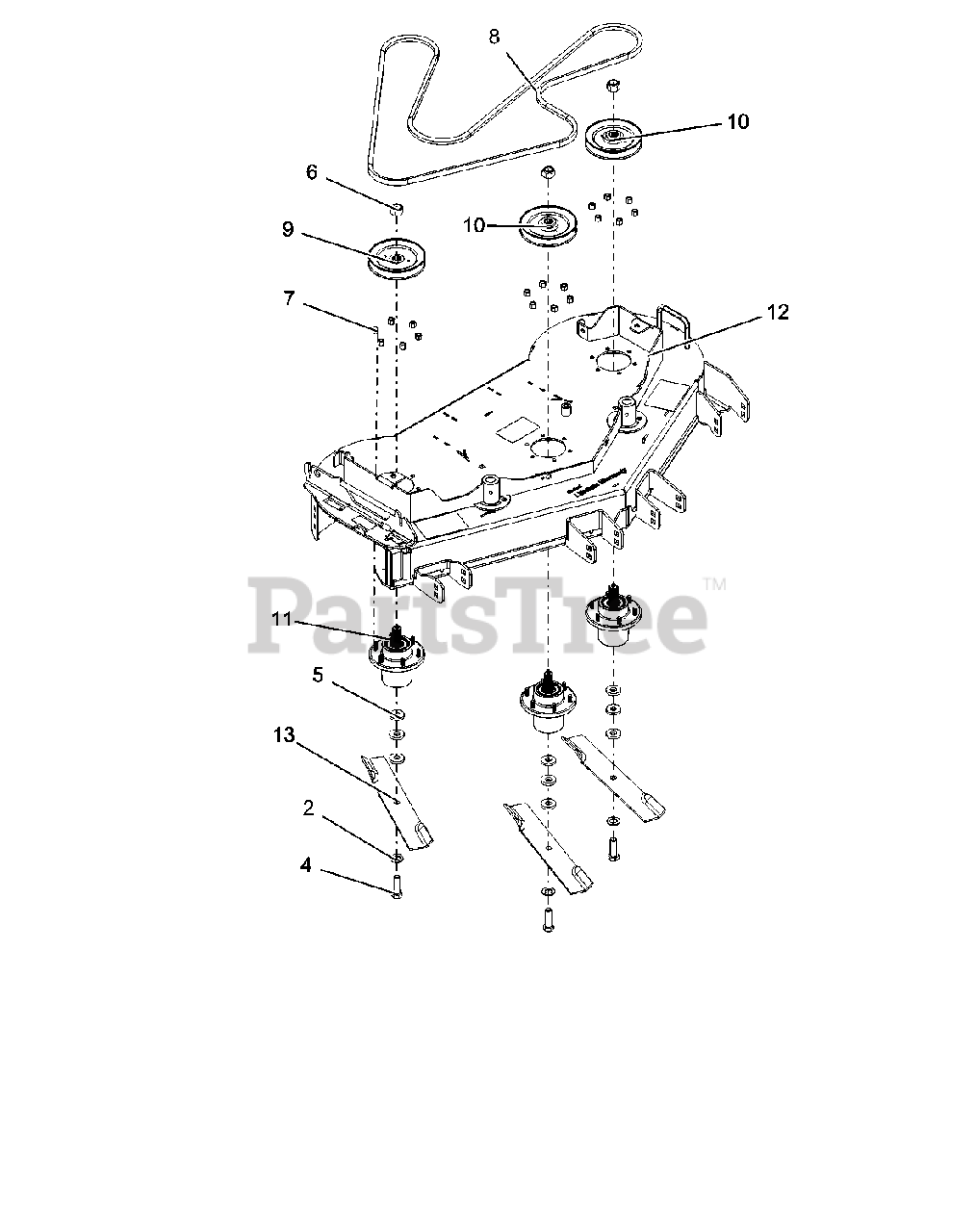

Deck, Belts, Blades And Spindles - 48" Parts Diagram

  • Title

2

Gravely 03399703

WASHER, .75X1.3125X.120
(Superseded to 06401037)

$

$

Not available

4

Gravely 05970002

BLT-HEX .62-11X2.00 GR8 YWZC
(Superseded to 05901725)

$5.99

$

In Stock, only 4 left!

0

5

Gravely 06400913

WSHR-FL-STL .630X1.50X.25 YWZC
(Superseded to 06401033)

$6.99

$

In Stock, only 1 left!

0

6

Gravely 06500709

LOCKNUT, 3/4-16 CROWN GR5 Y
(Superseded to 06500836)

$6.99

$

In Stock, only 2 left!

0

7

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

8

Gravely 07200519

BELT, HB

$105.99

$

In Stock, Qty 20+

0

9

Gravely 07344151

PULLEY, SPINDLE 5.75 X .76-BLACK

$79.99

$

Usually ships in 4-12 days

0

10

Gravely 07344351

PULLEY, SPINDLE 5.75 X .25-BLACK

$74.99

$

Usually ships in 4-12 days

0

11

200260

ASSY, SPINDLE HOUSING

$

$

Not available

12

Gravely 50499000

ASSY, 48 FLWLKDECK W/DECALS

$1162.99

$

Usually ships in 4-12 days

0

13

Gravely GDU10230

BLADE, 16.50 LO-LIFT

$28.99

$

In Stock, Qty 17

0
