988180 (48 HE) - Gravely Pro-Hydro 48" Walk-Behind Mower (SN: 000101 & Above) Battery - 48", 52" And 61" Parts Diagram

Pro-Hydro 48" Walk-Behind Mower

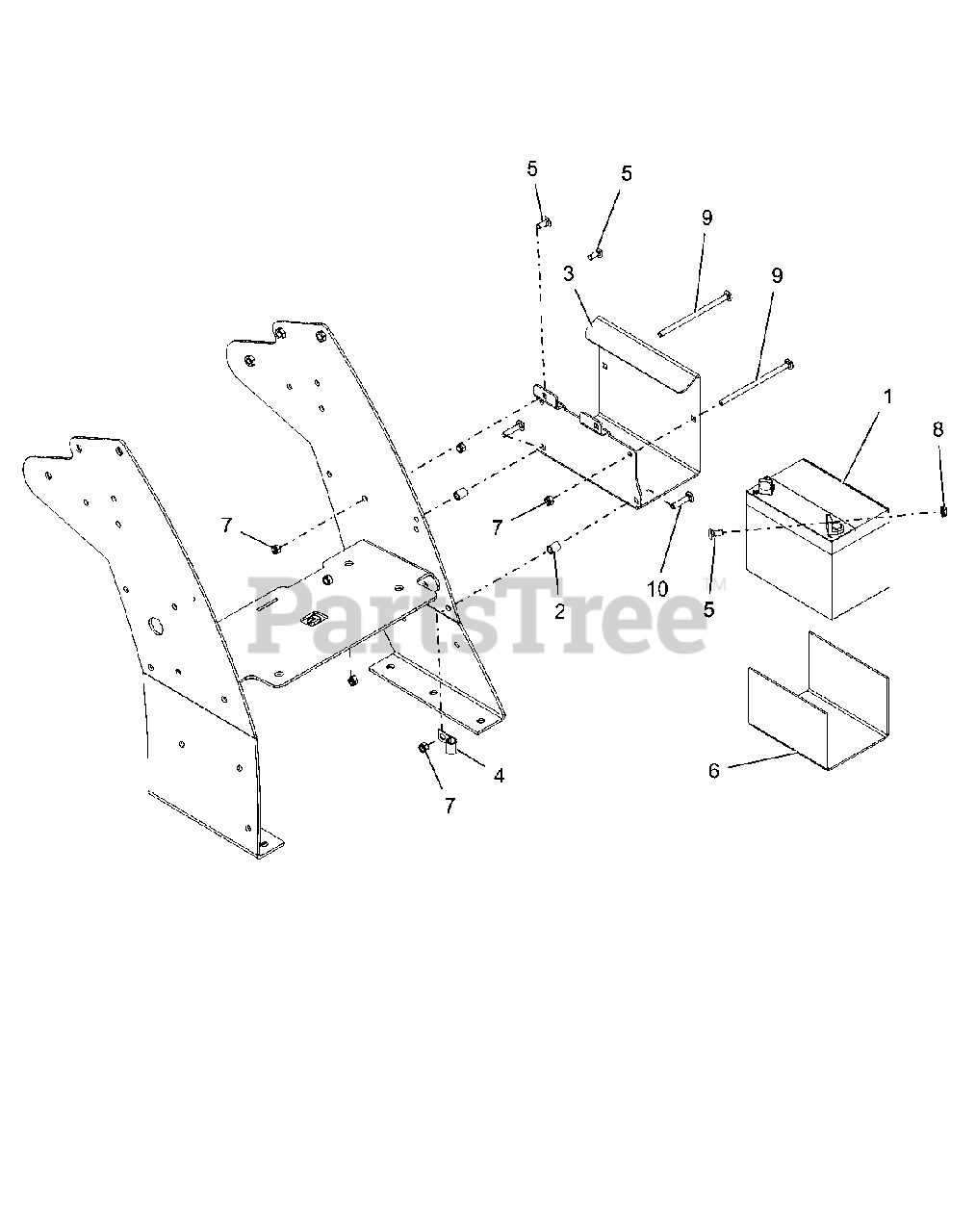

Battery - 48", 52" And 61" Parts Diagram

  • Title
1

Gravely 00191832

BATTERY, 12V-U1-CCA270MIN
(Superseded to 01554800)

$

$

Not available

2

Gravely 00203926

BUSHING, .364X.540X.700 Y

$

$

Not available

3

Gravely 04450953

TRAY, BATTERY ELEC

$

$

Not available

4

Gravely AH89557

P-CLIP, .500 INSULATED

$5.49

$

In Stock, only 1 left!

0

5

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5 YWZC
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

6

Gravely D28159

STRIP, RUBBER

$15.99

$

Usually ships in 4-12 days

0

7

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06200128

BLT-RDHDSQNK .31-18X6.00 G5 Y

$6.99

$

Usually ships in 4-12 days

0

10

Gravely 06212100

BLT-RDHDSQNK .31-18X1.50 G5 YWZC
(Superseded to 06200233)

$1.49

$

In Stock, Qty 19

0
