988174 - Gravely Pro-Walk 60" Walk-Behind Mower, Kawasaki FS (SN: 000101 & Above) Steering Controls - Upper Parts Diagram

Pro-Walk 60" Walk-Behind Mower, Kawasaki FS

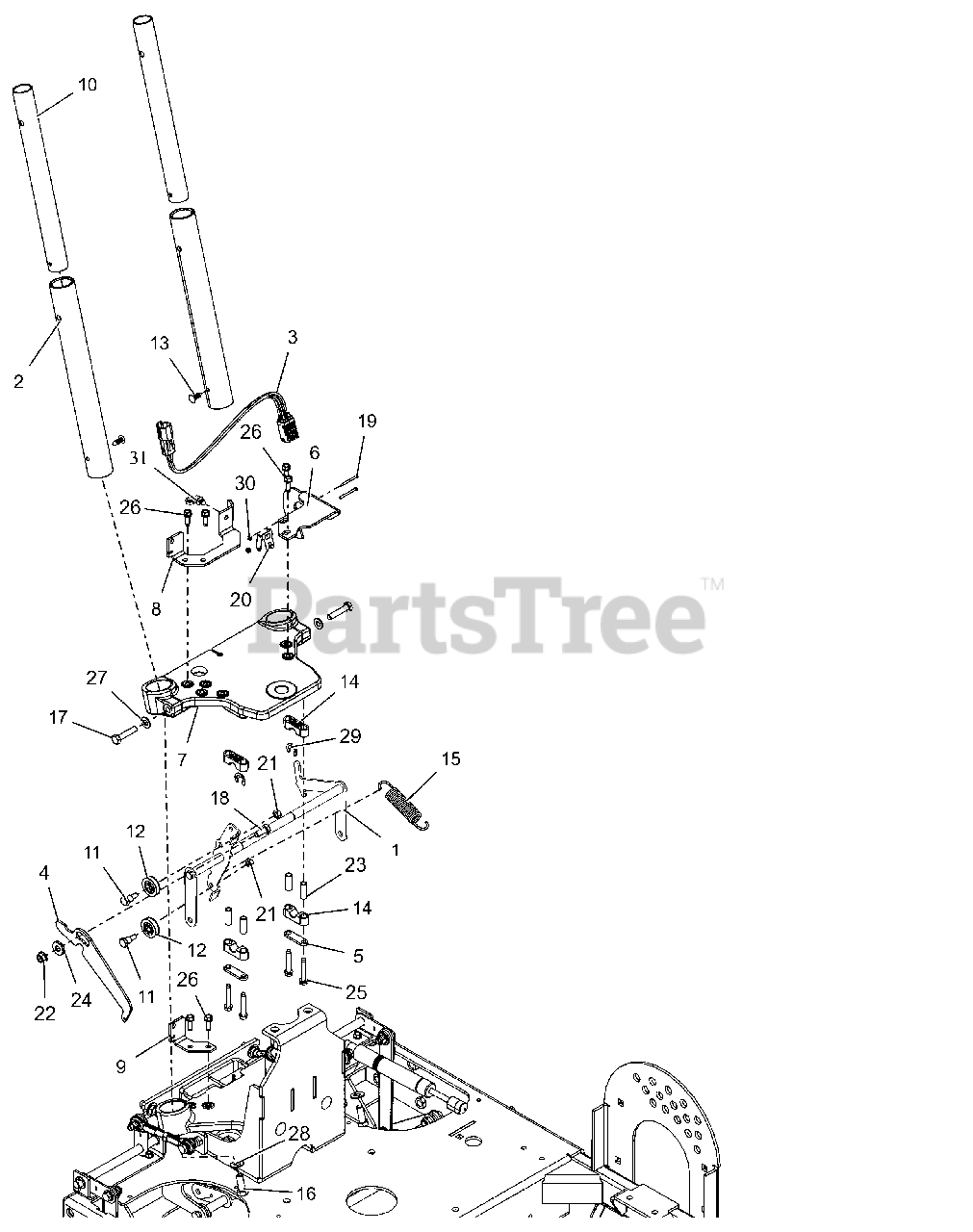

Steering Controls - Upper Parts Diagram

  • Title

1

Gravely 05013500

WLDMT, UPPER STEERING SHAFT

$139.99

$

Usually ships in 4-12 days

0

2

Gravely 05127800

WLDMT, STEERING TUBE

$140.99

$

Usually ships in 4-12 days

0

3

Gravely 05128300

HARNESS, NEUTRAL HYDRO PRO WALK

$39.99

$

Usually ships in 4-12 days

0

4

Gravely 05100200

BRKT, RTN

$

$

Not available

5

Gravely 05103951

PLATE, BEARING SUPPORT (BLACK)

$

$

Not available

6

Gravely 05114753

BRKT, LH CONTACT SWITCH (RED)

$28.99

$

Usually ships in 4-12 days

0

7

Gravely 05127600

BRKT, UPPER STEERING

$

$

Currently unavailable

8

Gravely 05158553

BRKT, CABLE MTG

$20.99

$

Usually ships in 4-12 days

0

9

Gravely 05128053

BRKT, CABLE MTG (RED)

$42.99

$

Usually ships in 4-12 days

0

10

Gravely 05501318

BUSHING, SLV

$16.99

$

Usually ships in 4-12 days

0

11

Gravely 07000021

BOLT, SHLDR-.375X.375X.25-20
(Superseded to 07001737)

$3.99

$

In Stock, Qty 5

0

12

Gravely 07300012

PULLEY, CABLE

$4.99

$

In Stock, Qty 12

0

13

Gravely 07500125

RIVET, .25 NYLON PANEL

$1.49

$

In Stock, Qty 18

0

14

Gravely 07500419

BSHG, STEERING SHAFT

$5.99

$

Usually ships in 4-12 days

0

15

Gravely 08311700

SG-TENS .105X.812X3.88 WLD 15

$7.99

$

In Stock, only 1 left!

0

16

Gravely 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 05952400

@BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.49

$

In Stock, Qty 13

0

18

Gravely 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 05901901

SCR-SKH 4-40 X 1.25

$

$

Not available

20

Gravely 05161400

ACTUATOR, SWITCH

$62.99

$

Usually ships in 4-12 days

0

21

Gravely 06533200

@NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

22

Gravely 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 05501322

BSHG-SLV .277X.375X1.00

$3.99

$

Usually ships in 4-12 days

0

24

Gravely 05501127

BSHG-FLG .325X.499X.3X.875

$1.49

$

In Stock, Qty 20+

0

25

Gravely 07400007

@SCR-TAP .25-20X1.50 HWH TR YZ

$1.99

$

Usually ships in 4-12 days

0

26

Gravely 07400111

SCR-TAP-PM .25-20X.75 TR YWZ
(Superseded to 07400131)

$1.49

$

In Stock, Qty 6

0

27

Gravely 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 05710200

RG-RTNG-EXT .500X.042 (E)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 06500834

NUT, LK-NYL #4-40 GR5 ZC120

$

$

Currently unavailable

31

Gravely 07500040

CABLE TIE W/ TREE (.25 HOLE)

$3.99

$

In Stock, only 1 left!

0
