988174 - Gravely Pro-Walk 60" Walk-Behind Mower, Kawasaki FS (SN: 000101 & Above) Deck, Baffles, and Anti-Scalp Wheels - 60" Parts Diagram

Pro-Walk 60" Walk-Behind Mower, Kawasaki FS

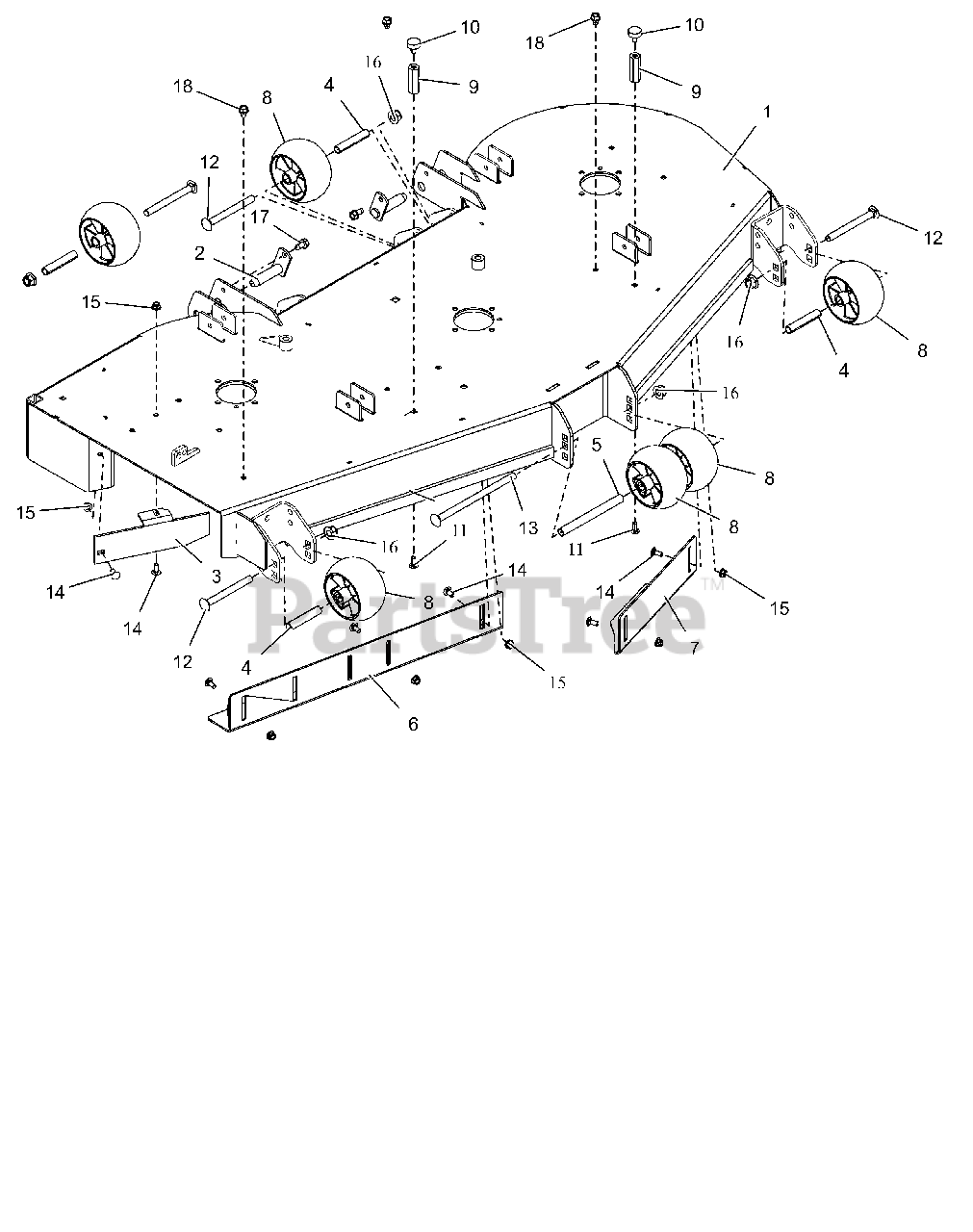

Deck, Baffles, and Anti-Scalp Wheels - 60" Parts Diagram

  • Title

1

Gravely 58812300

KIT, 60" MOWER DECK W DECALS

$1172.99

$

Usually ships in 4-12 days

0

2

Gravely 04874767

WLDMT, MOWER MTG. PIN (BLACK)

$71.99

$

Usually ships in 4-12 days

0

3

Gravely 00374153

60" DISCHARGE BAFFLE - RED

$28.99

$

In Stock, only 1 left!

0

4

Gravely 00473700

SPACER, .510X.625X3.35

$18.99

$

In Stock, Qty 20+

0

5

Gravely 00473800

SPACER, .510X.625X6.50

$21.99

$

In Stock, Qty 20+

0

6

Gravely 00952553

60" RH VACUUM BAFFLE - RED
(Superseded to 05251951)

$51.99

$

In Stock, only 1 left!

0

7

Gravely 00952653

60" LH VACUUM BAFFLE - RED
(Superseded to 05252051)

$44.99

$

Usually ships in 4-12 days

0

8

Gravely 03905900

ANTI-SCALP WHEEL - 5X3 CTR

$11.99

$

In Stock, Qty 20+

0

9

Gravely 07001630

NUT, .31-18X2.25 LG COUPLING

$32.99

$

Usually ships in 4-12 days

0

10

Gravely 07533600

BUMPER, RUBBER

$11.99

$

In Stock, only 1 left!

0

11

Gravely 06200002

BLT,RDHDSQNK .31-18X.75 LOCTIT
(Superseded to 06200425)

$3.99

$

In Stock, only 3 left!

0

12

Gravely 06225900

BLT-RDHDSQNK .50-13X5.00 GR5YZ
(Superseded to 06200505)

$5.99

$

Usually ships in 4-12 days

0

13

Gravely 06206400

@BLT-RDHDSQNK .50-13X8.50 G5YZ
(Superseded to 06200321)

$6.99

$

In Stock, Qty 20+

0

14

Gravely 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

15

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0
