988173 - Gravely Pro-Walk 52" Walk-Behind Mower, Kawasaki FS (SN: 000101 & Above) Frame - 52" Parts Diagram

Pro-Walk 52" Walk-Behind Mower, Kawasaki FS

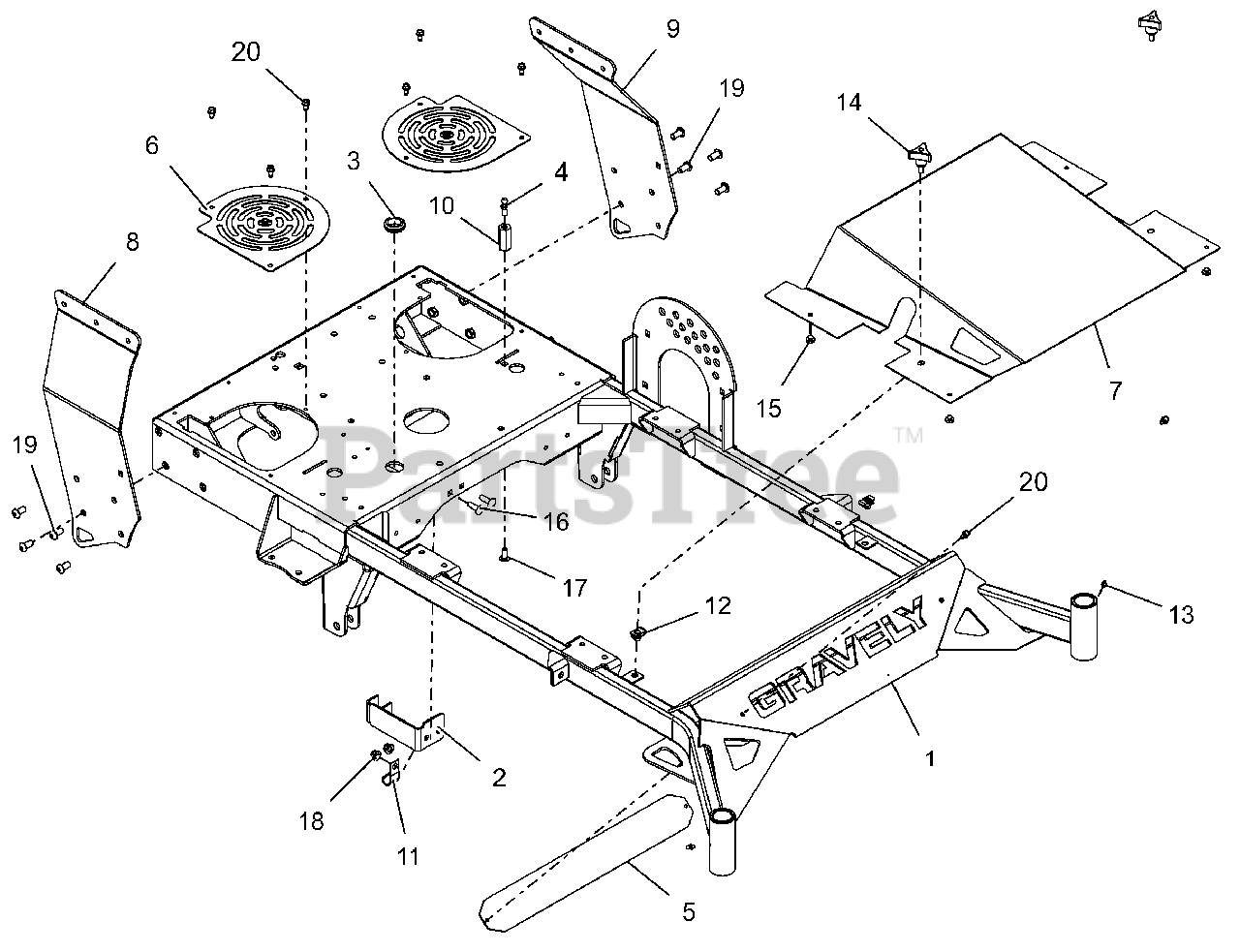

Frame - 52" Parts Diagram

  • Title

1

Gravely 05006453

WLDMT, FRAME 52" HYDRO PRO WLK (RED)

$1612.99

$

Usually ships in 4-12 days

0

2

Gravely 05066051

WLDMT, CLUTCH STOP

$

$

Not available

3

Gravely 03384007

GROMMET:RUB:.88IDX1.38ODX.14GR

$

$

Not available

4

Gravely 03652200

STUD- BALL

$3.49

$

In Stock, only 3 left!

0

5

Gravely 04386551

BUMPER LOGO BACKING PLATE -BLK

$

$

Not available

6

Gravely 04988853

COVER, COOLING FAN (RED)

$62.99

$

Usually ships in 4-12 days

0

7

Gravely 58811800

KIT, 52" FRONT SHIELD W DECALS

$74.99

$

Usually ships in 4-12 days

0

8

Gravely 05066453

PANEL, RH TANK TOWER (RED)

$

$

Currently unavailable

9

Gravely 05066553

PANEL, LH TANK TOWER (RED)

$

$

Currently unavailable

10

Gravely 05119800

SPCR, DAMPENER MTG

$41.99

$

Usually ships in 4-12 days

0

11

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

12

Gravely 07000829

NUT-CLIP RETAINER 5/16-18X.56

$

$

Not available

13

Gravely 07001738

FTG-LUBE .25-28X.256 SST

$3.99

$

Usually ships in 4-12 days

0

14

Gravely 07500008

KNOB,WING STUD 5/16-18 X .75

$5.99

$

In Stock, Qty 20+

0

15

Gravely 07503100

BUMPER GROMMET

$3.49

$

In Stock, only 3 left!

0

16

Gravely 06200007

@BLT-RHDSSQNK .31-18X1.00 G5YZ
(Superseded to 06200237)

$2.49

$

In Stock, only 3 left!

0

17

Gravely 06220800

@BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

18

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 07069200

BLT-BTHD-SOCKET .38-16X.75

$3.99

$

Usually ships in 4-12 days

0

20

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0
