988172 - Gravely Pro-Walk 48" Walk-Behind Mower, Kawasaki FS (SN: 000101 & Above) Pulleys and Idlers - 48", 52", and 60" Parts Diagram

Pro-Walk 48" Walk-Behind Mower, Kawasaki FS

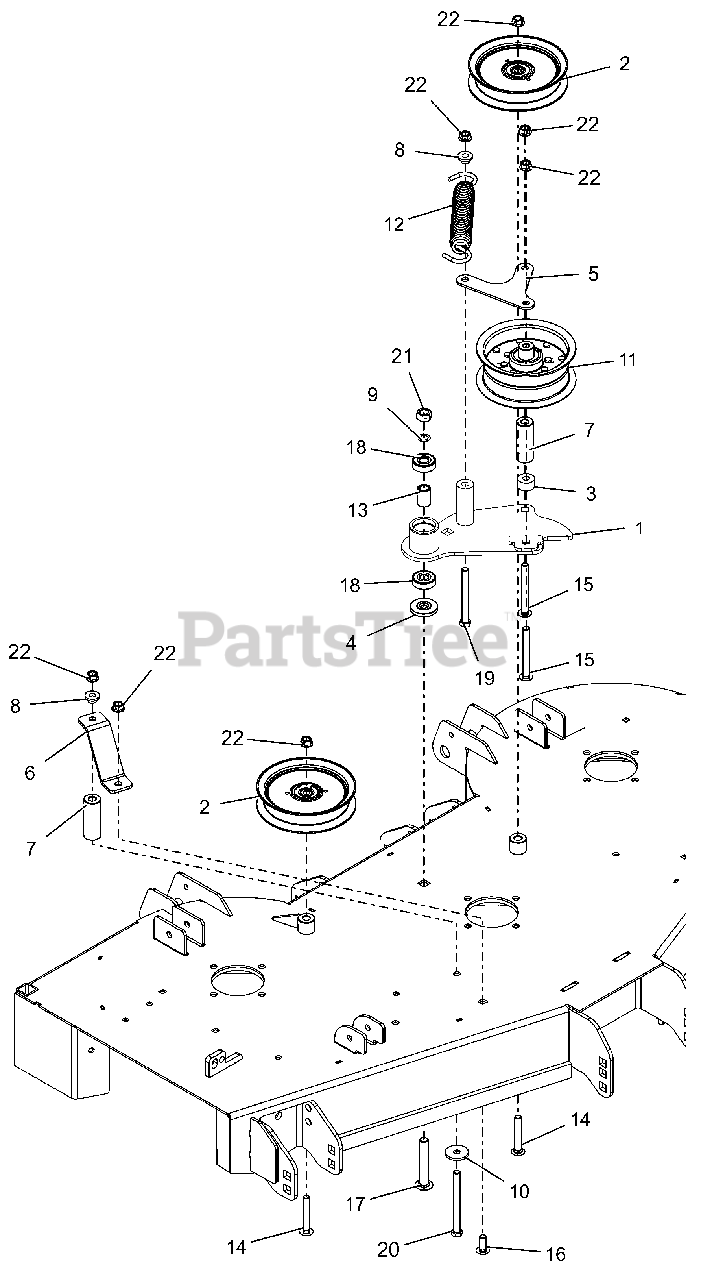

Pulleys and Idlers - 48", 52", and 60" Parts Diagram

  • Title

1

Gravely 04998051

WLDMT, IDLER ARM (BLACK)

$132.99

$

Usually ships in 4-12 days

0

2

Gravely 07345600

IDLER, FLAT 5.00"
(Superseded to 07351200)

$40.99

$

In Stock, Qty 12

0

3

Gravely 03035100

SPACER .390X1.000X.562

$9.49

$

In Stock, only 1 left!

0

4

Gravely 04714600

SPACER, IDLER ARM

$5.99

$

In Stock, Qty 20+

0

5

Gravely 05102851

BRKT, SUPPORT (BLACK)

$20.99

$

Usually ships in 4-12 days

0

6

Gravely 05102951

BRKT, SPRG ANCHOR (BLACK)

$32.99

$

Usually ships in 4-12 days

0

7

Gravely 05103051

SPCR, TUBE (BLACK)

$54.99

$

Usually ships in 4-12 days

0

8

Gravely 05500435

BSHG-FLG .385X.500X.875X.406

$2.49

$

In Stock, Qty 20+

0

9

Gravely 06400015

WASHER, .500X.750X.020 THRUST

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06442400

WSHR-FL-STL .406X1.375X.135 YZ
(Superseded to 06401121)

$5.99

$

In Stock, only 1 left!

0

11

Gravely 07300532

PULLEY, FLAT 5.00X2.36X.375

$74.99

$

In Stock, Qty 12

0

12

Gravely 08300708

SPRING, EXTENSION

$19.99

$

In Stock, Qty 20+

0

13

Gravely 09357700

SPACER .510 X .75 X 1.1485

$4.99

$

In Stock, only 2 left!

0

14

Gravely 06224400

@BLT-RDHDSQNK .38-16X2.50 G5YZ
(Superseded to 06200234)

$3.99

$

In Stock, Qty 17

0

15

Gravely 06200125

@BLT-RHDSSQNK .38-16X3.50 G5YZ
(Superseded to 06200238)

$3.99

$

In Stock, Qty 20+

0

16

Gravely 06212000

@BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06200216

BLT,RDHDSQSHNK.50-13X3.25 G5YZ
(Superseded to 06200339)

$3.99

$

In Stock, Qty 20+

0

18

Gravely 05408000

BRG-BALL .500X1.38X.437

$5.99

$

In Stock, Qty 12

0

19

Gravely 05959500

@BLT-HEX .38-16X3.75 GR5 YWZC
(Superseded to 05902025)

$3.49

$

Usually ships in 4-12 days

0

20

Gravely 05981900

@BLT-HEX .38-16X4.25 GR5 YWZC
(Superseded to 05902024)

$4.49

$

Usually ships in 4-12 days

0

21

Gravely 06536300

@NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

22

Gravely 06534800

NUT-LK-CTR-FLG .38-16 YWZC
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0
