988172 - Gravely Pro-Walk 48" Walk-Behind Mower, Kawasaki FS (SN: 000101 & Above) Deck Lift and Height of Cut - 48", 52", and 60" Parts Diagram

Pro-Walk 48" Walk-Behind Mower, Kawasaki FS

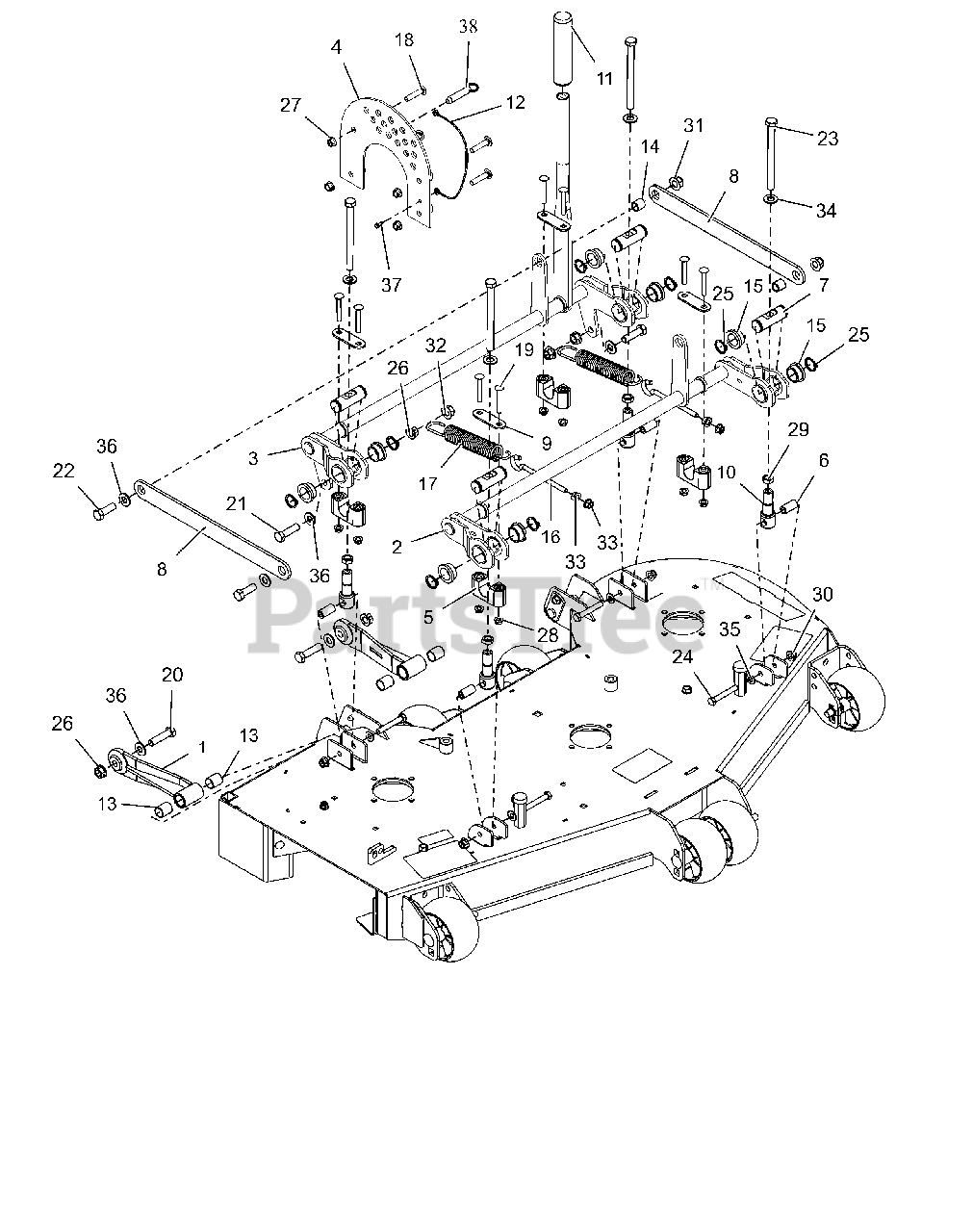

Deck Lift and Height of Cut - 48", 52", and 60" Parts Diagram

  • Title

1

Gravely 04968851

WLDMT, PUSHER LINK BAR (BLACK)

$

$

Not available

2

Gravely 04993551

WLDMT, DECK LIFT

$219.99

$

Usually ships in 4-12 days

0

3

Gravely 04996951

WLDMT, DECK LIFT

$188.99

$

Usually ships in 4-12 days

0

4

Gravely 04997853

WLDMT, DECK INDEXING (RED)

$205.99

$

Usually ships in 4-12 days

0

5

Gravely 07500414

ASM-BUSHING, DECK LIFT

$22.99

$

In Stock, only 1 left!

0

6

Gravely 04895200

SPACER, DECK LEVELING

$2.49

$

In Stock, Qty 20+

0

7

Gravely 04984500

PIN, DECK LIFT

$28.99

$

In Stock, only 2 left!

0

8

Gravely 04997751

LINK, DECK LIFT (BLACK)

$

$

Not available

9

Gravely 04766551

PLATE, BEARING SUPPORT

$7.99

$

Usually ships in 4-12 days

0

10

Gravely 05081400

LINK, DECK LIFT FORMED

$15.99

$

In Stock, Qty 10

0

11

Gravely 05082200

GRIP, DECK LIFT

$

$

Not available

12

Gravely 06900317

CABLE, 12.0 LANYARD, NYLON

$3.49

$

In Stock, only 2 left!

0

13

Gravely 05435900

BRG, .750 X .875 X 1.000

$5.99

$

In Stock, only 4 left!

0

14

Gravely 05501104

BSHG, SLV .510 X .751 X .750

$3.49

$

Usually ships in 4-12 days

0

15

Gravely 05501307

BSHG,FLG 1.0 X 1.25 X 1.5 X .6

$11.99

$

In Stock, Qty 16

0

16

Gravely 07001640

BOLT,.38-16 X 4.25-.62 DIA EYE

$16.99

$

Usually ships in 4-12 days

0

17

Gravely 08319000

SG-TENS .162X1.25X8.25 WLD 25

$33.99

$

In Stock, Qty 6

0

18

Gravely 06200111

BLT-RHDSSQNK .38-16X1.75 G5YZ
(Superseded to 06200329)

$3.99

$

In Stock, only 1 left!

0

19

Gravely 06200226

BLT-RDHDSQSHNK .31-18X2.25 YWZ
(Superseded to 06200311)

$3.99

$

Usually ships in 4-12 days

0

20

Gravely 05970700

BLT-HEX .500-13X2.00 GR8 YWZC
(Superseded to 05901940)

$3.99

$

Usually ships in 4-12 days

0

21

Gravely 05970600

@BLT-HEX .50-13X1.75 GR5 YWZC
(Superseded to 05901939)

$3.99

$

In Stock, only 2 left!

0

22

Gravely 05962000

@BLT-HEX .50-13X1.50 GR5 YWZC
(Superseded to 05901631)

$3.99

$

Usually ships in 4-12 days

0

23

Gravely 05901605

BOLT,.50-13X6.00-2.50 LG THD
(Superseded to 05901924)

$6.99

$

Usually ships in 4-12 days

0

24

Gravely 05958400

@BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

25

Gravely 05707300

RG-RTNG-EXT 1.00X.078

$2.99

$

In Stock, Qty 9

0

26

Gravely 06530008

NUT-LK-CTR-FLG .50-13 YWZC
(Superseded to 06500902)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 06534800

NUT-LK-CTR-FLG .38-16 YWZC
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 06528700

@NUT-LK-CTR-FLG .31-18 YZ GR F
(Superseded to 06500840)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 06529300

NUT-JAM .50-13 YWZC
(Superseded to 06500911)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 06543300

NUT-SPNLK-FLG .50-13 YWZC
(Superseded to 06500928)

$3.99

$

Usually ships in 4-12 days

0

33

Gravely 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 06400418

FLATWASHER 1/2 SAE HARD 15906
(Superseded to 06401116)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

36

Gravely 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

37

Gravely 07415800

@SCR-TAP 10-24X.50 HWH TR YWZC
(Superseded to 07400130)

$2.49

$

In Stock, Qty 5

0

38

Gravely 05117300

PIN, .500 x 2.000 USABLE LG BALL

$

$

Currently unavailable
