988171 - Gravely Pro-Walk 36" Walk-Behind Mower, Kawasaki FS (SN: 000101 & Above) Transaxles and Guards - 36" Parts Diagram

Pro-Walk 36" Walk-Behind Mower, Kawasaki FS

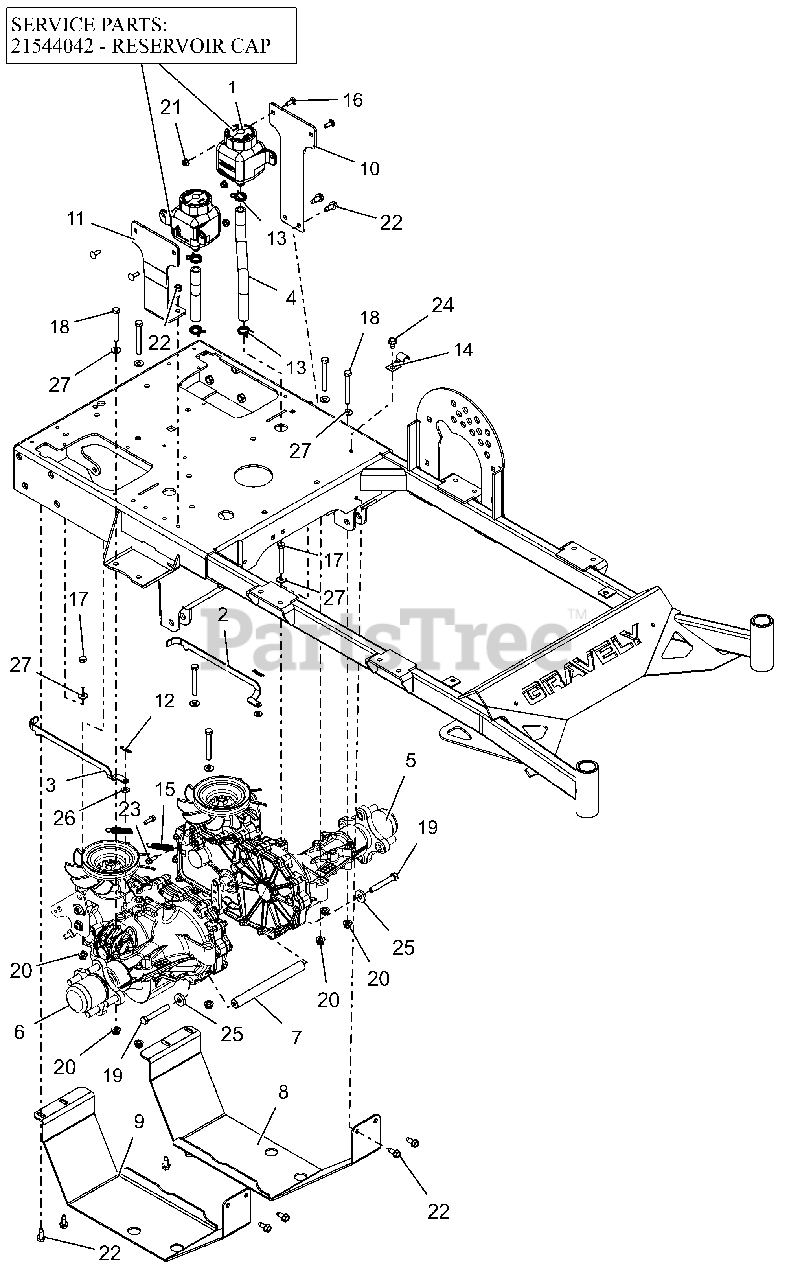

Transaxles and Guards - 36" Parts Diagram

  • Title

1

Gravely 02970200

TANK, EXPANSION

$34.99

$

In Stock, only 2 left!

0

1

Gravely 21544042

CAP, HYDRO RESERVOIR REPLAC.

Note: SERVICE PART

$21.99

$

Usually ships in 4-12 days

0

2

Gravely 04992951

BRKT, LH DUMP VALVE (BLACK)

$28.99

$

Usually ships in 4-12 days

0

3

Gravely 04993051

BRKT, RH DUMP VALVE (BLACK)

$

$

Not available

4

Gravely 04995500

HOSE, PRO WALK OVERFLOW

$

$

Currently unavailable

5

Gravely 05006200

TRANSAXLE, ZT2800 - LH

$1396.99

$

Usually ships in 4-12 days

0

6

Gravely 05006300

TRANSAXLE, ZT2800 - RH

$

$

Not available

7

Gravely 05109500

SHAFT, CROSS

$

$

Currently unavailable

8

Gravely 05123551

PLATE, LH 36" SKID (BLACK)

$

$

Currently unavailable

9

Gravely 05123651

PLATE, RH 36" SKID (BLACK)

$133.99

$

Usually ships in 4-12 days

0

10

Gravely 05137253

BRKT, EXPANSION TANK MTG (RED)

$

$

Not available

11

Gravely 05139853

BRKT, EXPANSION TANK MTG

$

$

Not available

12

Gravely 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06900634

3/4 WIRE HOSE CLMP ZC

$3.49

$

Usually ships in 4-12 days

0

14

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

15

Gravely 08300527

SPRING, EXTENSION

$3.49

$

In Stock, only 4 left!

0

16

Gravely 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 13

0

17

Gravely 05952600

@BLT-HEX .31-18X2.50 GR5 YWZC
(Superseded to 05901912)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 05960600

@BLT-HEX .31-18X2.75 GR5 YWZC
(Superseded to 05901807)

$2.49

$

In Stock, only 2 left!

0

19

Gravely 05958400

@BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

20

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06500012

@NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

22

Gravely 07414400

@SCR-TAP .31-18X.75 HWH TR YWZ
(Superseded to 07400127)

$1.49

$

In Stock, Qty 11

0

23

Gravely 07400111

SCR-TAP-PM .25-20X.75 TR YWZ
(Superseded to 07400131)

$1.49

$

In Stock, Qty 6

0

24

Gravely 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

26

Gravely 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0
