988171 - Gravely Pro-Walk 36" Walk-Behind Mower, Kawasaki FS (SN: 000101 & Above) Controls Parts Diagram

Pro-Walk 36" Walk-Behind Mower, Kawasaki FS

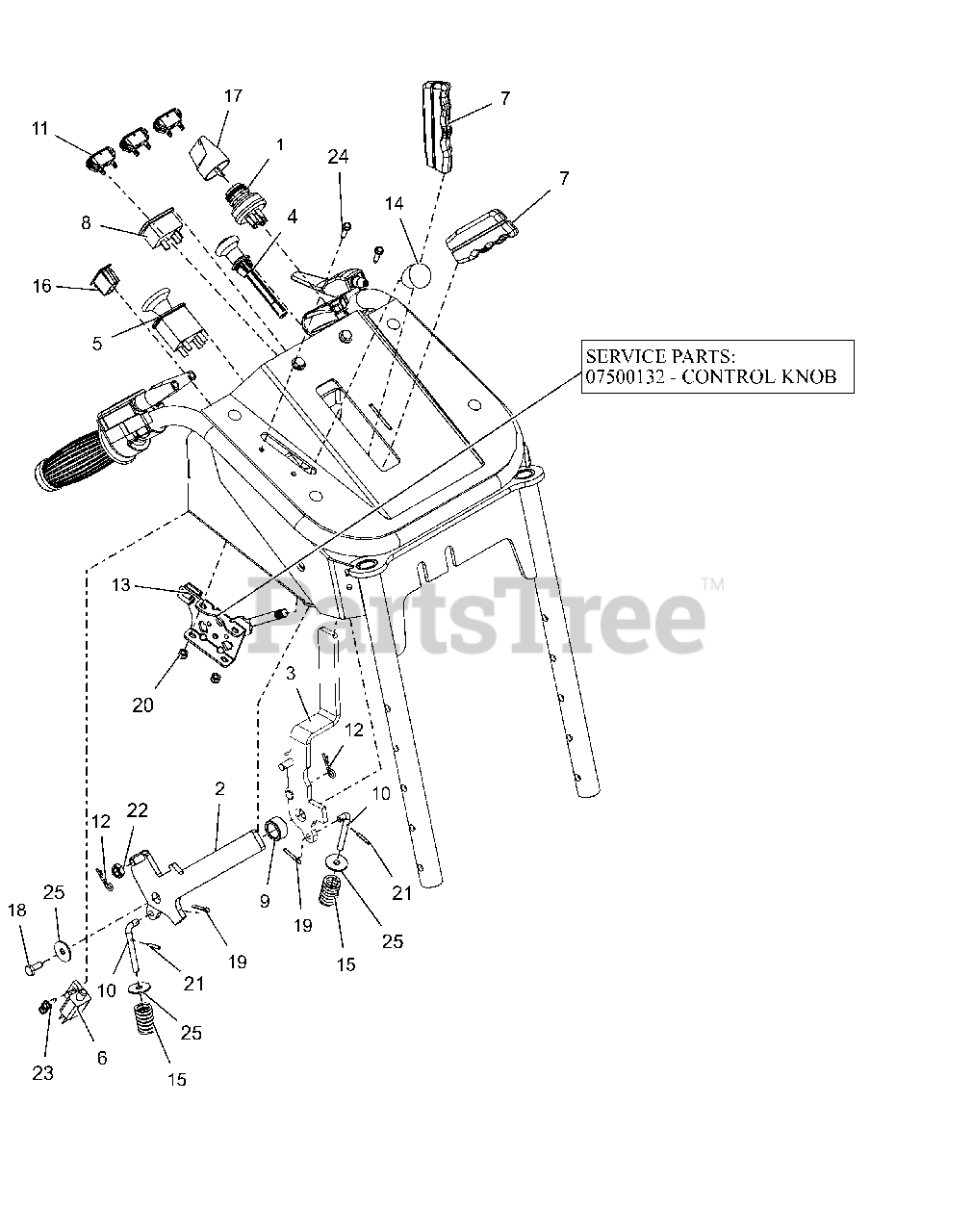

Controls Parts Diagram

  • Title

1

Gravely 04331600

SWITCH, IGNITION

$45.99

$

In Stock, Qty 20+

0

2

Gravely 05025051

WLDMT, BRAKE LEVER (BLACK)

$50.99

$

Usually ships in 4-12 days

0

3

Gravely 05087051

WLDMT, STEERING LEVER (BLACK)

$93.99

$

Usually ships in 4-12 days

0

4

Gravely 06900701

CABLE, CHOKE SNAP-IN 58"

$26.99

$

Usually ships in 4-12 days

0

5

Gravely 01545600

SWITCH, CLUTCH

$25.99

$

In Stock, Qty 20+

0

6

Gravely 03606600

SWITCH- DOUBLE POLE N.O./N.O.

$17.99

$

In Stock, only 1 left!

0

7

Gravely 03826900

GRIP, PARKING BRAKE (YELLOW)

$3.99

$

In Stock, only 1 left!

0

8

Gravely 03966800

METER, HOUR W/MAINTENANCE
(Superseded to 09497400)

$23.99

$

In Stock, only 3 left!

0

9

Gravely 05105200

SPCR, .688 x 1.00 x .495

$

$

Currently unavailable

10

Gravely 05105300

ROD, OVER CENTER BRAKE

$41.99

$

Usually ships in 4-12 days

0

11

Gravely 05124200

LIGHT, INDICATOR (GREEN)

$

$

Not available

12

Gravely 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06900702

CABLE, PROCONTROL THROTTLE 66"

$39.99

$

Usually ships in 4-12 days

0

13

Gravely 07500132

KNOB-CONTROL-BLACK .38-16X.50

Note: SERVICE PART

$11.99

$

In Stock, Qty 10

0

14

Gravely 07500132

KNOB-CONTROL-BLACK .38-16X.50

$11.99

$

In Stock, Qty 10

0

15

Gravely 08335700

SG-COMP .125X.781X1.250

$9.49

$

In Stock, only 1 left!

0

16

Gravely 09003300

SWITCH,BLANK

$4.99

$

Usually ships in 4-12 days

0

17

Gravely 09287000

KEY, W/ SHIELD

$14.99

$

In Stock, Qty 20+

0

18

Gravely 05900338

@BLT-HEX .25-20X.63 GR5 YWZC
(Superseded to 05901722)

$

$

Not available

19

Gravely 06700211

PIN,CTR .12X.75EXTPRSQCT ZC120

$3.49

$

Usually ships in 4-12 days

0

20

Gravely 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 05803400

PIN-ROLL .125X.75

$0.99

$

In Stock, Qty 16

0

22

Gravely 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 07415800

@SCR-TAP 10-24X.50 HWH TR YWZC
(Superseded to 07400130)

$2.49

$

In Stock, Qty 5

0

24

Gravely 07413000

SCR-TAP 10-24X.75 HWH TR YWZC
(Superseded to 07400118)

$3.99

$

In Stock, Qty 8

0

25

Gravely 06426600

WSHR-FL-STL .281X1.000X.063
(Superseded to 06401020)

$0.99

$

In Stock, Qty 20+

0
