988170 (48 LP) - Gravely Pro-Walk 48" Walk-Behind Mower, Propane (SN: 040000 & Above) Electrical Components Forward Parts Diagram

Pro-Walk 48" Walk-Behind Mower, Propane

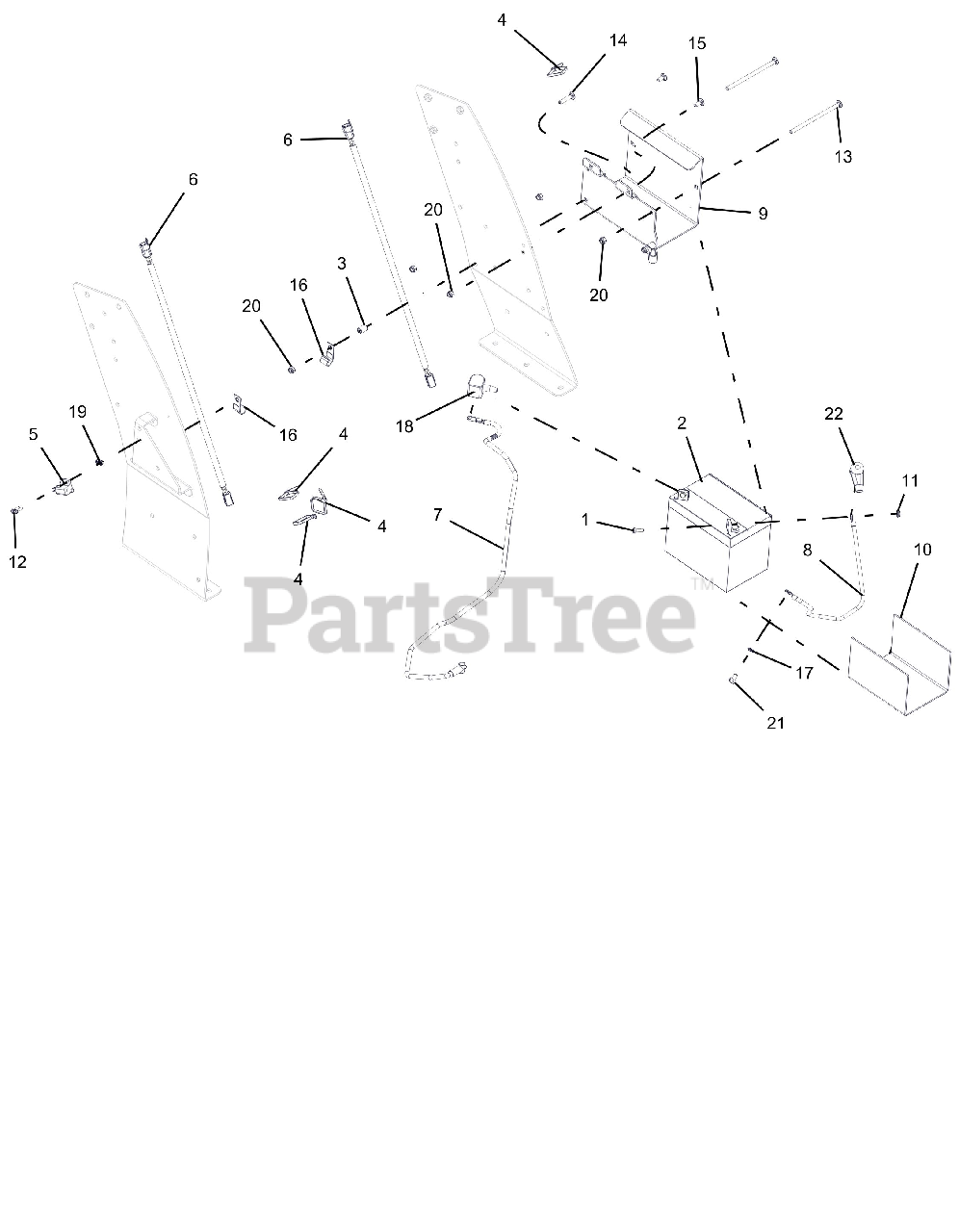

Electrical Components Forward Parts Diagram

  • Title

1

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 00191832

BATTERY, 12V-U1-CCA270MIN
(Superseded to 01554800)

$

$

Not available

3

Gravely 00203926

BUSHING, .364X.540X.700 Y

$

$

Not available

4

Gravely 00967006

CABLE TIE, .19 X 14.4

$

$

Not available

5

Gravely 03606600

SWITCH- DOUBLE POLE N.O./N.O.

$17.99

$

In Stock, only 1 left!

0

6

Gravely 04261100

ADAPTER-HARNESS-PRO WALK HYDRO

$35.99

$

Usually ships in 4-12 days

0

7

Gravely 03821000

CABLE, BATTERY - 42" POSITIVE

$

$

Not available

8

Gravely 03288200

CABLE, NEGATIVE BATTERY 35.00"

$22.99

$

Usually ships in 4-12 days

0

9

Gravely 04450953

TRAY, BATTERY ELEC

$

$

Not available

10

Gravely D28159

STRIP, RUBBER

$15.99

$

Usually ships in 4-12 days

0

11

Gravely 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06116900

@SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

13

Gravely 06200128

BLT-RDHDSQNK .31-18X6.00 G5 Y

$6.99

$

Usually ships in 4-12 days

0

14

Gravely 06212100

BLT-RDHDSQNK .31-18X1.50 G5 YWZC
(Superseded to 06200233)

$1.49

$

In Stock, Qty 19

0

15

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5 YWZC
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

16

Gravely AH89557

P-CLIP, .500 INSULATED

$5.49

$

In Stock, only 1 left!

0

17

Gravely 06307200

WSHR-LK-EXT .326X.599X.031 YWZC REV
(Superseded to 06300125)

$0.99

$

Usually ships in 4-12 days

0

18

Gravely 07534620

BOOT, POS BATTERY TERMINAL WLK

$

$

Not available

19

Gravely 06500704

NUT-KEPS 10-24

$3.99

$

Usually ships in 4-12 days

0

20

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 05970001

@BLT-HEX M8 X 1.25X14 YWZC
(Superseded to 05902018)

$3.99

$

Usually ships in 4-12 days

0

22

Gravely 07533210

BOOT, BATTERY TERMINAL BLACK

$

$

Not available
